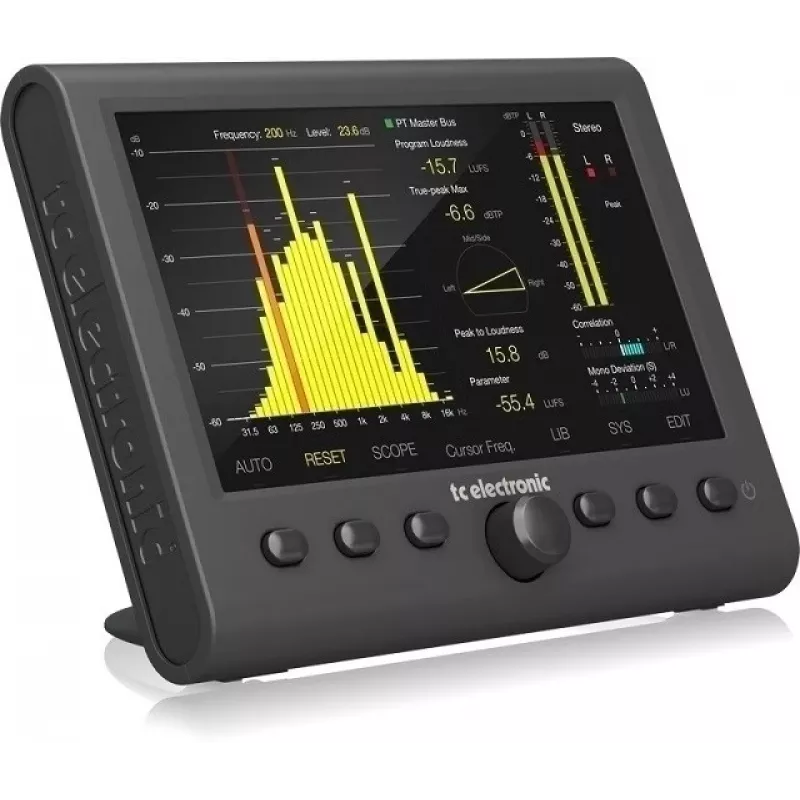

TC Electronic Clarity M Stereo - Stereo Audio Meter with 7 inch Display, Loudness & True-Peak

Inconsistent loudness levels across broadcasts and streaming platforms lead to viewer complaints and regulatory penalties. The TC Electronic Clarity M Stereo solves this by providing real-time visual feedback on loudness and dynamics, ensuring compliance with international standards and a consistent listening experience.

Who is it for

Broadcast engineers, post-production studios, and live sound professionals who need accurate loudness metering and true-peak monitoring in a compact, desktop-friendly unit.

Main features

• 7-inch high-resolution TFT color display for clear, at-a-glance metering
• Complies with major loudness standards: ITU BS.1770-4, EBU R128, ATSC A/85, ARIB TR-B32, OP-59, AGCOM 219/09/CSP, and CALM Act
• Multiple metering modes: Loudness (LUFS/LKFS), True-Peak, PPM, SPL, Vectorscope, RTA, and Correlation
• Digital inputs: AES3 (XLR), S/PDIF (RCA), and Optical TOSLINK, with pass-through outputs for each
• USB and Ethernet connectivity for software integration, preset management, and remote control
• GPIO port (DB-9) for external control and preset recall
• Supports sample rates up to 96 kHz
• Includes loudness radar meter, true-peak meter (ITU-R BS.1770-4 compliant), real-time analyzer (1/3 octave), vectorscope, and correlation meter
• Desktop stand included; optional 19" rack mount and wall mount available

Specifications

• Display: 7" high-resolution TFT color display
• Loudness standards: ITU BS.1770-4, EBU R128, ATSC A/85, ARIB TR-B32, OP-59, AGCOM 219/09/CSP, CALM Act
• Digital inputs: 1x Stereo AES3 (XLR), 1x Stereo S/PDIF (RCA), 1x Optical TOSLINK
• Digital outputs: 1x Stereo AES3 (XLR), 1x Stereo S/PDIF (RCA), 1x Optical TOSLINK (pass-through)
• USB: USB 2.0 Type B
• Ethernet: RJ45
• GPIO: DB-9
• Supported sample rates: Up to 96 kHz
• Power supply: 12V DC (external adapter included)
• Mounting: Desktop (stand included), optional 19" rack mount, optional wall mount

Tips

Use the Clarity M Stereo to monitor loudness in real time during live broadcasts or post-production. Its pass-through outputs allow seamless integration into your existing signal chain without affecting the audio path.
