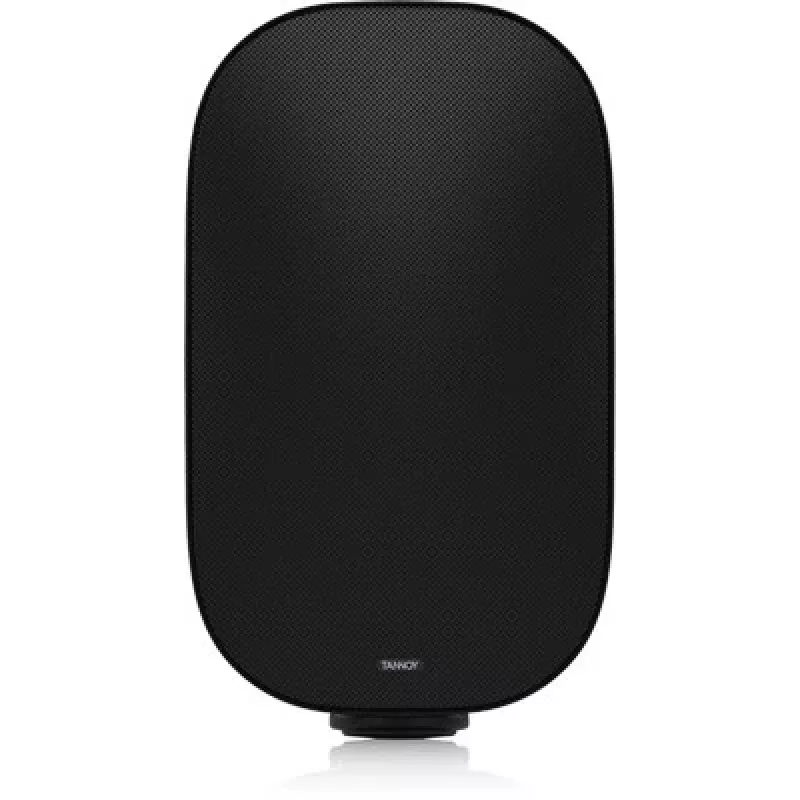

Tannoy QCI A1-BL High-Quality Dual Concentric In-Wall Speaker 5 inch for Installation Applications (Black)

The Tannoy QCI A1-BL is a high-quality dual concentric in-wall loudspeaker designed for professional installation applications. Featuring a 5-inch multi-fibre paper cone low-frequency driver and a 0.75-inch titanium dome high-frequency driver, this speaker delivers exceptional audio clarity and wide dispersion. Its compact design and paintable grille allow seamless integration into any environment.

Advantages

With a 90° conical dispersion pattern and a frequency response of 80 Hz to 22 kHz (-3dB), the QCI A1-BL ensures consistent sound coverage. The dual concentric driver technology provides a point source for coherent sound reproduction, ideal for background music and paging systems.

Suitable for

• Commercial installations such as retail stores, restaurants, and offices
• Background music and public address systems
• High-quality audio in spaces where in-wall mounting is preferred

Key specifications

• Speaker Type: In-Wall Loudspeaker
• Driver Configuration: Dual Concentric
• Low Frequency Driver: 5" (127mm) Multi-fibre paper cone
• High Frequency Driver: 0.75" (19mm) Titanium dome
• Frequency Response (-3dB): 80 Hz - 22 kHz
• Frequency Response (-10dB): 60 Hz - 25 kHz
• Power Handling (RMS): 40 W
• Power Handling (Peak): 160 W
• Sensitivity (1W/1m): 88 dB
• Nominal Impedance: 8 Ohms
• Dispersion Angle: 90° Conical
• Crossover Frequency: 2.5 kHz
• Recommended Amplifier Power: 10 - 80 W
• Cutout Dimensions (H x W): 250 x 160 mm
• Mounting Depth: 80 mm
• Grille: Perforated steel, paintable
• Color: Black

Recommendations

The Tannoy QCI A1-BL is an excellent choice for integrators seeking reliable, high-performance in-wall speakers. Its robust construction and superior sound quality make it a top pick for demanding commercial environments.
