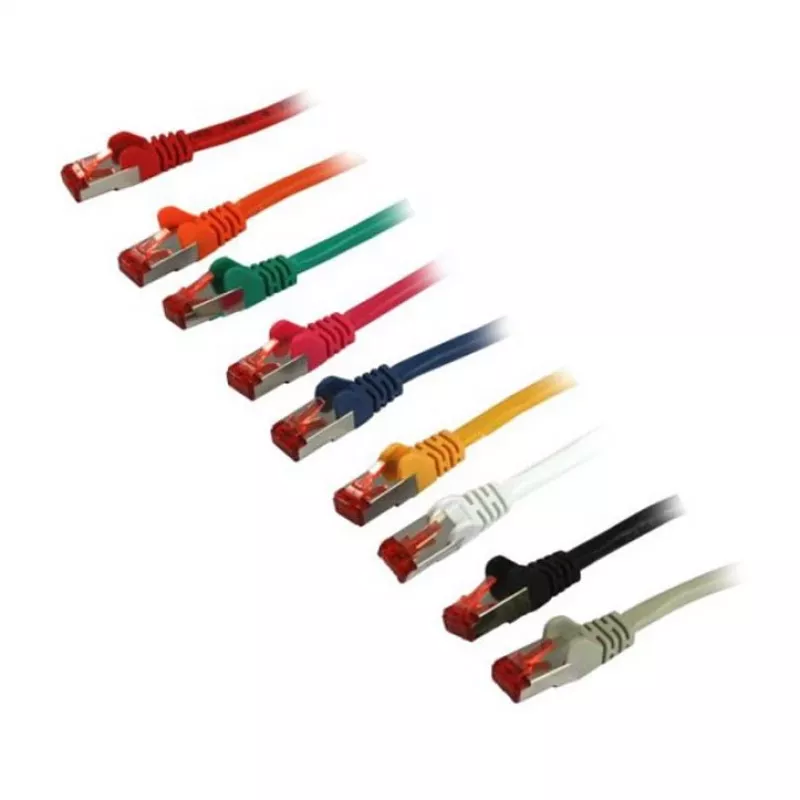

SYNERGY21 S216042 CAT6 S/FTP LSZH Patch Cable RJ45, 2m, Green

High-performance CAT6 patch cable engineered for reliable Gigabit Ethernet connectivity in noise-sensitive environments. The S/FTP shielding with individually foiled pairs and an overall braid delivers superior protection against EMI and crosstalk, ensuring error-free data transmission up to 250 MHz over a 2-meter run. Ideal for structured cabling in offices, data centers, and industrial settings where signal integrity is critical.

Advantages

Double shielding (S/FTP) minimizes alien crosstalk and electromagnetic interference, making it perfect for high-density installations. The LSZH jacket emits low smoke and zero halogen in case of fire, enhancing safety in enclosed spaces. Gold-plated contacts resist corrosion and maintain reliable connections over thousands of mating cycles. The snagless boot protects the locking tab from damage during installation, while the stranded copper conductors provide flexibility for frequent moves and changes.

Suitable for

• Gigabit Ethernet (10/100/1000Base-T) networks
• PoE applications up to 30W (PoE+)
• High-density patch panels and switches
• Healthcare, education, and government facilities requiring LSZH compliance
• Audio/video streaming and IP surveillance systems

Key specifications

• Category: CAT6, backward compatible with CAT5e and CAT5
• Shielding: S/FTP (Screened Foiled Twisted Pair), PIMF
• Length: 2 meters
• Colour: Green
• Conductor: Stranded copper, AWG 26/7
• Frequency: 250 MHz
• Wiring: TIA/EIA 568B
• Jacket: LSZH (Low Smoke Zero Halogen), IEC 60332-1
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Outer diameter: approx. 6.0 mm
• Impedance: 100 Ohm

Recommendations

For best performance, avoid sharp bends and maintain the minimum bend radius of 4 times the cable diameter. Pair with SYNERGY21 shielded patch panels and keystone jacks to preserve the shielding continuity. Test with a cable certifier to verify compliance with CAT6 standards after installation.
