SYNERGY21 LED Flex Strip 5050 - 84 RGB Pixel DC24V SM16703 IP20

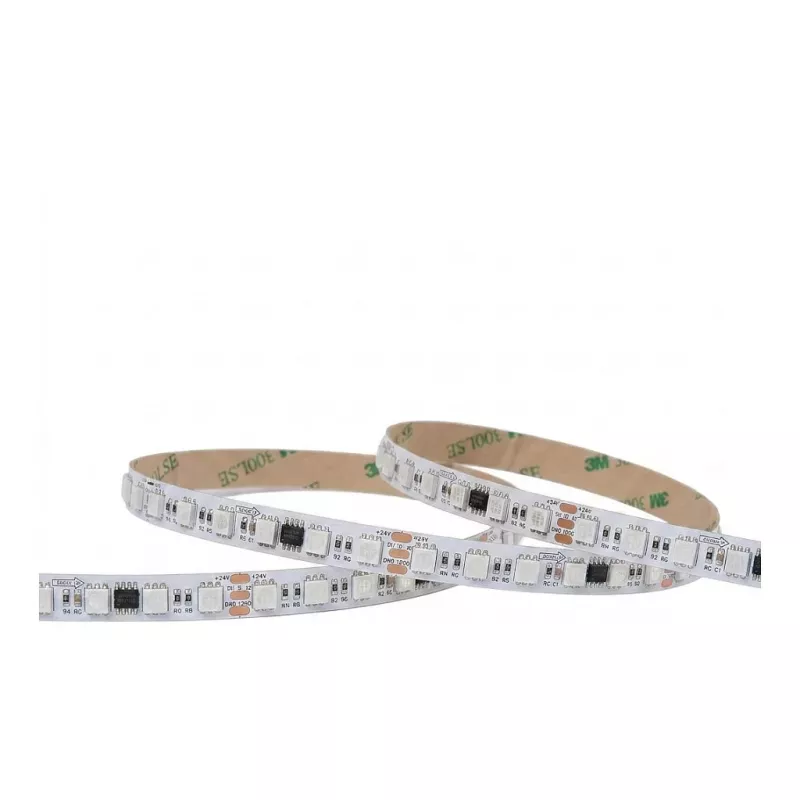

The SYNERGY21 LED Flex Strip 5050 is a high-performance, individually addressable RGB LED strip designed for creative lighting projects. Featuring 84 SMD 5050 RGB LEDs per meter with SM16703 driver IC, this strip operates at DC 24V and delivers vibrant full-color effects with pixel-level control. Ideal for indoor use, it comes with a 3M self-adhesive backing for easy installation and can be cut every 3 LEDs for custom lengths.

Advantages

This LED strip offers precise pixel control, allowing each LED to be addressed individually for stunning animations and color sequences. The SM16703 IC ensures smooth data transmission and consistent performance. With a wide beam angle of 120°, it provides uniform illumination. The strip is dimmable via a compatible controller, offering flexibility in brightness. Its IP20 rating makes it suitable for dry indoor environments.

Suitable for

• Accent lighting in living rooms, bedrooms, and entertainment areas
• Under-cabinet lighting in kitchens
• Display and signage lighting
• DIY projects and custom lighting installations
• Stage and event decoration

Key specifications

• LED Type: SMD 5050 RGB
• Color: RGB (Full Color)
• Addressability: Individually Addressable (Pixel Control)
• LED Driver IC: SM16703
• Operating Voltage: DC 24V
• LEDs per Meter: 84
• Pixels per Meter: 84
• Length: 1 Meter
• IP Rating: IP20
• Beam Angle: 120°
• Power Consumption: Approx. 20W/m
• Cuttable Length: Every 3 LEDs (approx. 35.7 mm)
• Adhesive Backing: Yes, 3M Self-Adhesive
• Operating Temperature: -20°C to +50°C
• Lifespan: 50,000 hours
• Dimmable: Yes (via compatible controller)
• Connectivity: 3-Pin JST SM Connector
• PCB Color: White
• Certifications: CE, RoHS

Recommendations

For best results, use with a compatible 24V power supply and an addressable LED controller that supports SM16703 IC. Ensure proper ventilation and avoid exposure to moisture. Always follow local electrical codes during installation.
