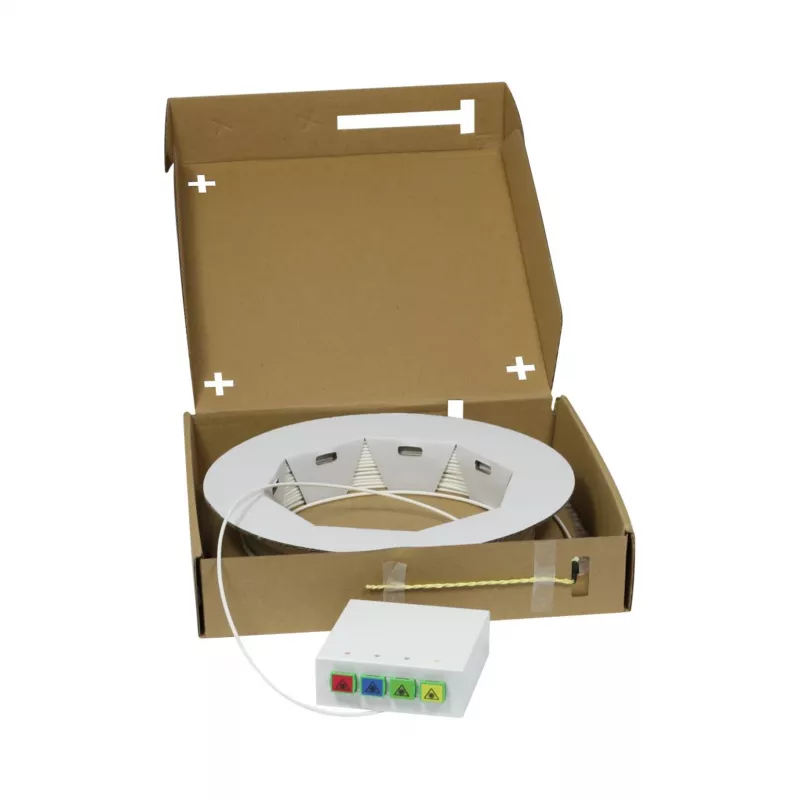

SYNERGY21 FTTH Compact Box Pre-Assembled, 4xSC/APC -> Open End, 40m, 9/125µm, G.657.A2, 4-Fiber, OD=2.2mm

The SYNERGY21 FTTH Compact Box is a pre-assembled fiber optic distribution solution designed for Fiber to the Home (FTTH) networks. This unit features four SC/APC connectors on one end and an open end on the other, with a 40-meter single-mode cable (9/125µm) that meets the ITU-T G.657.A2 bend-insensitive standard. The compact design and 2.2mm outer diameter make it ideal for tight installations.

Advantages

Pre-terminated for quick and easy installation, reducing on-site termination time and errors. The bend-insensitive fiber ensures reliable performance even in tight bends. The compact box integrates seamlessly into FTTH distribution points.

Suitable for

• Fiber to the Home (FTTH) installations
• Last-mile fiber distribution
• Indoor and outdoor compact enclosures
• Networks requiring SC/APC connectors

Key specifications

• Product Type: FTTH Compact Box
• Fiber Type: Single-mode (OS2)
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Fiber Count: 4 Fibers
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 40 meters
• Cable Outer Diameter: 2.2 mm
• Connector Type (End 1): SC/APC
• Connector Count (End 1): 4
• Connector Type (End 2): Open End
• Termination Status: Pre-terminated / Pre-assembled
• Connector Polish: APC (Angled Physical Contact)
• Box Type: Compact Distribution Box
• Compatibility: FTTH Networks

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This product is designed for use with compatible FTTH distribution boxes and patch panels.
