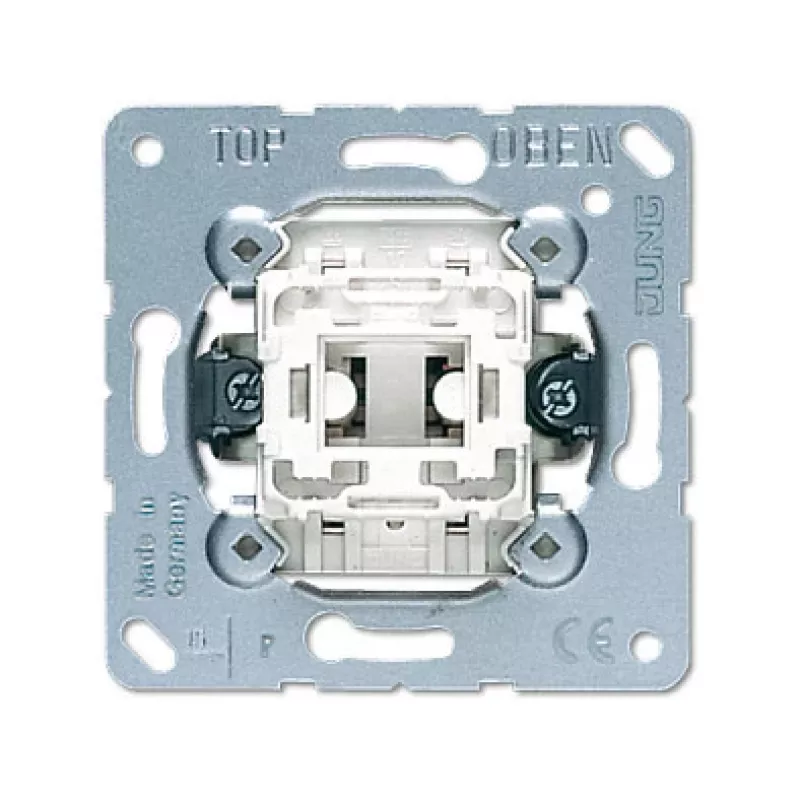

Switch insert Jung Aus-Wechselschaltereinsatz 506 U – Jung JU-506U

Jung Aus-Wechselschaltereinsatz 506 U is a modular switch insert for installation in compatible Jung switch frames. The unit provides the core switching function for two-way or changeover circuits, allowing control of lighting or similar electrical loads. Designed as an insert, it is mounted behind a cover plate and suited for integration into standard Jung wall systems where a compact, replaceable switching element is required.

Advantages

The insert delivers reliable mechanical switching action and a compact design that fits standard Jung frames. Its modular form factor simplifies replacement and installation without altering the visible cover. The device supports common wiring configurations used in two-way switching, enabling flexible control of lighting circuits in residential and commercial installations.

Suitable for

Key specifications

How to use

Install the insert into a compatible Jung switch frame following the manufacturer’s wiring diagram and local electrical regulations. Ensure power is isolated before connecting the line and load conductors to the appropriate terminals. After securing the insert in the frame, attach the cover plate and any actuator or rocker compatible with the frame. Verify wiring continuity and proper operation by restoring power and testing the changeover functionality of the switch.

Recommendations

Use only with compatible Jung frames and front plates; consult the installation manual and adhere to national wiring standards. For safety, installation and any electrical connections should be performed by a qualified electrician. Avoid exposing the insert to moisture and mechanical stress during installation.
