Surge Protector Baaske Medical MED MI 1005 Grey 0.25 m

The MED MI 1005 network isolator provides a flexible, easy solution for immediate isolation of medical devices from network-related leakage currents. The device protects patients, users and equipment in under five seconds by interrupting dangerous leakage paths via the data network. It features a compact, lightweight housing and connects directly to any system with a network port without requiring installation or fixed cables. The passive design operates transparently on the network and does not need a separate power supply or additional drivers.

Advantages

Compact and universal device suitable for various medical applications. Fast response time — protects against leakage currents in less than five seconds. No dedicated power source required thanks to passive electronics. No software or driver installation needed. Replaceable network cable design avoids replacing the entire isolator if a network cable is faulty. Supplied with a 25 cm patch cable, user manual, covering box and serial number for easy deployment and traceability.

Key specifications

• Product: MED MI 1005 network isolator
• Protection time: less than 5 seconds
• Power: passive design, no external power required
• Connectivity: connects to standard network ports; no fixed cables
• Housing: lightweight, durable

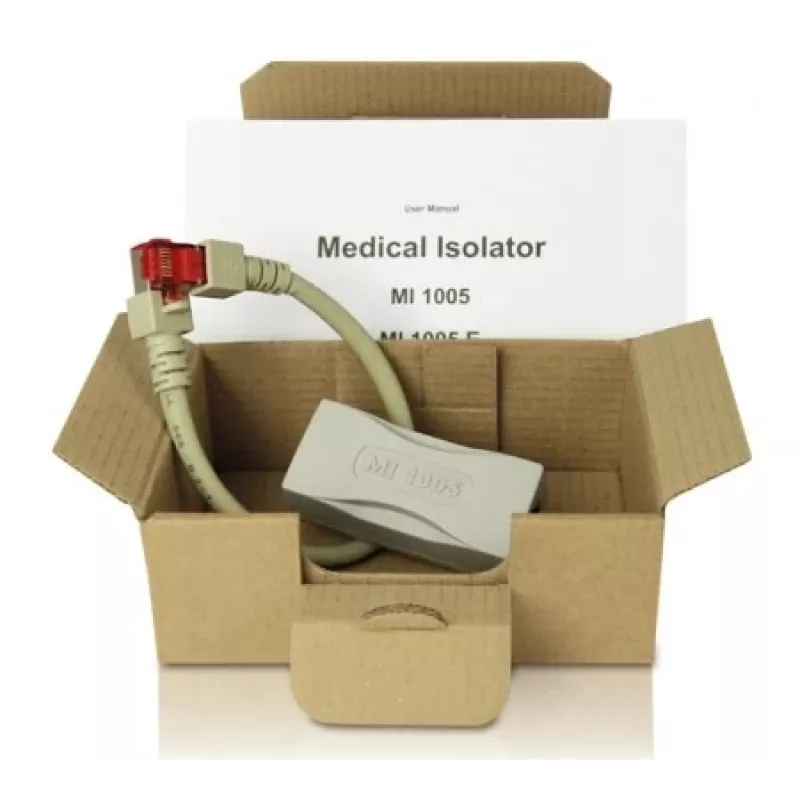

• Included accessories: 25 cm patch cable, manual, covering box, serial number
• Application: isolation of medical devices from network leakage currents

How to use

Connect the MED MI 1005 inline between the network cable and the medical device or network port. The isolator operates automatically and requires no configuration, drivers or power connection. If the network cable becomes faulty, replace only the patch cable; the isolator unit itself does not need to be replaced. Verify the serial number and supplied documentation before deployment.

Recommendations

Use the isolator in clinical environments where protection from data-network leakage currents is required. Periodically inspect the patch cable and housing for damage and replace the cable if necessary. Keep the manual and serial number available for maintenance and regulatory records.
