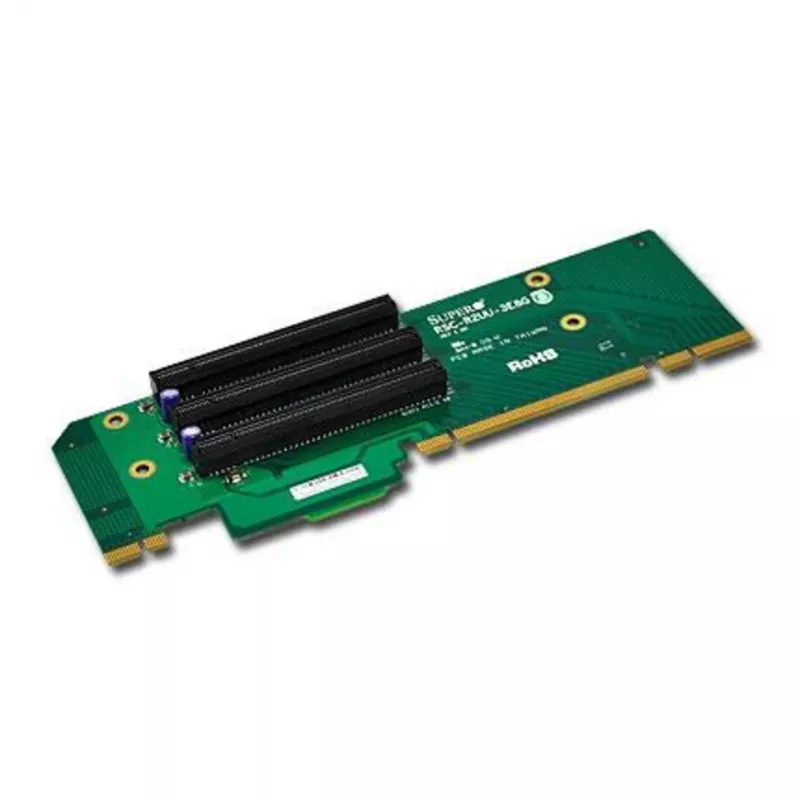

Supermicro RSC-R2UU-3E8G PCIe 3.0 x16 Riser Card for 2U Chassis

The Supermicro RSC-R2UU-3E8G is a high-performance PCIe 3.0 riser card designed for Supermicro 2U server chassis. It provides three PCIe slots (one x16 electrical x16, two x16 electrical x8) to expand server capabilities, supporting a variety of add-on cards such as network adapters, storage controllers, and GPUs. Engineered for reliability and compatibility with Supermicro X9, X10, and X11 series motherboards, this riser card ensures optimal signal integrity and easy installation.

Advantages

Maximizes expansion potential in 2U form factor with three full-height slots. PCIe 3.0 delivers high bandwidth for demanding applications. Proprietary Supermicro connector ensures secure and stable connection. Vertical orientation saves space and improves airflow.

Suitable for

• Supermicro 2U server chassis
• Data centers requiring additional PCIe slots
• Enterprise servers running virtualization, storage, or networking workloads

Key specifications

• Product Type: Riser Card
• Form Factor: 2U
• PCIe Generation: PCIe 3.0
• Total PCIe Slots: 3
• Slot 1: Physical x16, Electrical x16
• Slot 2: Physical x16, Electrical x8
• Slot 3: Physical x16, Electrical x8
• Connector: Proprietary Supermicro Riser Connector
• Compatibility: Supermicro 2U Chassis, X9/X10/X11 Series Motherboards
• Orientation: Vertical

Recommendations

For optimal performance, pair with Supermicro 2U chassis and compatible motherboards. Ensure proper airflow and power supply capacity when installing high-power add-on cards.
