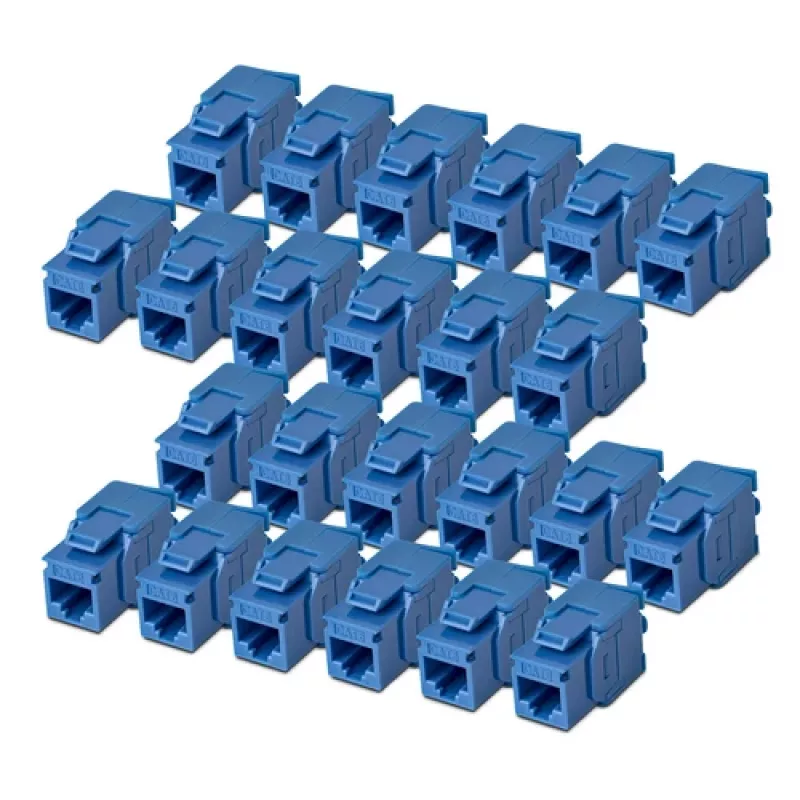

StarTech.com Cat6 Keystone Jack 24-Pack, RJ45 Ethernet Keystone Coupler, UTP Cat6 Wall Plate Insert, 180 Degree, Tool-less, Blue

The StarTech.com Cat6 Keystone Jack 24-Pack provides a reliable and high-performance solution for your structured cabling needs. These RJ45 keystone jacks are designed for Cat6 networks, supporting data rates up to 10GBase-T. The tool-less termination design allows for quick and easy installation without the need for a punch-down tool, saving time and effort. Each jack features a 180-degree termination angle, making it ideal for use in standard keystone wall plates and patch panels. The blue color helps with color-coding and organization. With 24 jacks per pack, this is a cost-effective choice for large installations.

Advantages

Tool-less termination simplifies installation and reduces labor costs. The 180-degree design ensures compatibility with various mounting options. UTP shielding minimizes crosstalk and interference for reliable data transmission. Gold-plated contacts provide corrosion resistance and long-term performance.

Suitable for

• Structured cabling in offices, data centers, and home networks
• Connecting workstations, servers, and network devices
• Upgrading existing Cat5e networks to Cat6 for higher bandwidth

Key specifications

• Product Type: Keystone Jack
• Cable Category: Cat6
• Shielding: UTP (Unshielded Twisted Pair)
• Connector Type: RJ45
• Connector Gender: Female
• Termination Type: Tool-less IDC
• Termination Angle: 180 Degree
• Color: Blue
• Pack Quantity: 24
• Data Rate Support: Up to 10 Gigabit Ethernet (10GBase-T)
• Compatibility: Standard Keystone Wall Plates and Patch Panels
• Wire Gauge Support: 22-26 AWG Solid or Stranded
• Contact Plating: 50 Micron Gold
• Housing Material: High-Impact PC Plastic
• Standards Compliance: TIA/EIA 568-C.2, ISO/IEC 11801
• Flammability Rating: UL 94V-0
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 10-90% RH (Non-condensing)

Recommendations

For best performance, use with Cat6 or Cat6a patch cables and ensure proper termination. Ideal for high-density environments where reliability and speed are critical.
