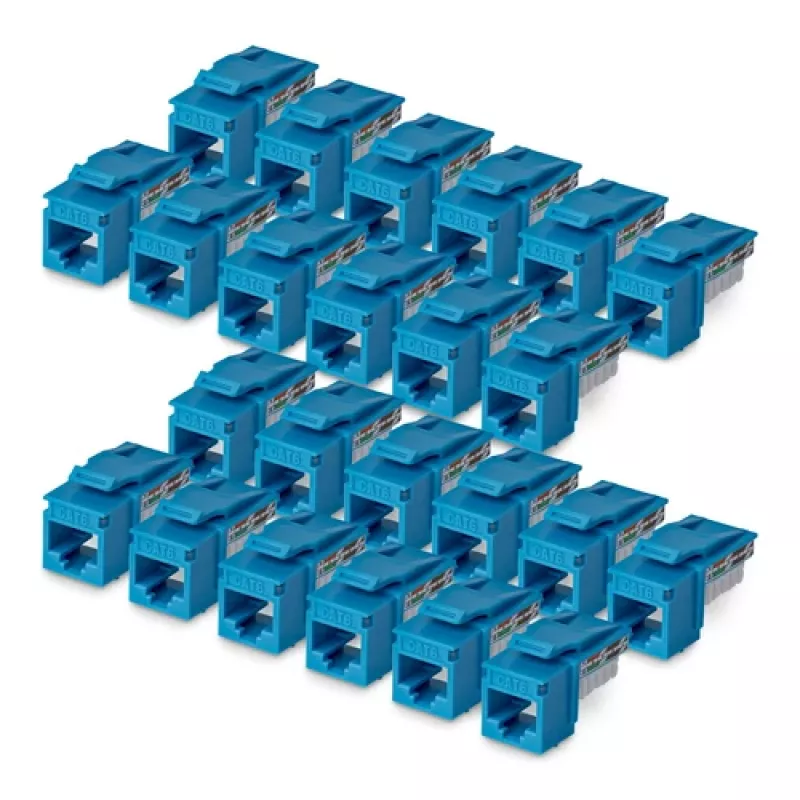

StarTech.com Cat6 Keystone Jack 24-Pack, RJ45 Ethernet Keystone Coupler, UTP Cat6 Wall Jack, 90 Degree 110 Punch Down, Blue

The StarTech.com Cat6 Keystone Jack 24-Pack provides a reliable and high-performance solution for your structured cabling needs. Each keystone jack is designed for 10 Gigabit Ethernet (10GBase-T) applications, supporting bandwidth up to 250 MHz. The 90-degree 110 punch-down termination allows for easy and secure installation in standard keystone wall plates and patch panels. With a blue color and unshielded twisted pair (UTP) design, these jacks are ideal for high-density data center environments, enterprise networks, and home installations.

Advantages

This 24-pack offers cost-effective bulk purchasing for large-scale deployments. The 90-degree angle reduces cable strain and simplifies cable management. Gold-plated contacts ensure reliable connectivity and corrosion resistance. The jacks are compliant with TIA/EIA 568-C.2 and ISO/IEC 11801 standards, guaranteeing interoperability and performance.

Suitable for

• Data center cabling infrastructure
• Enterprise network installations
• Home network upgrades to Cat6
• Wall plate and patch panel termination

Key specifications

• Product Type: Keystone Jack
• Cable Category: Cat6
• Connector Type (Front): RJ45 Female
• Termination Type (Rear): 110 Punch Down
• Termination Angle: 90 Degree
• Shielding: UTP (Unshielded Twisted Pair)
• Color: Blue
• Pack Quantity: 24 Jacks
• Supported Ethernet Speed: 10 Gigabit Ethernet (10GBase-T)
• Frequency Bandwidth: Up to 250 MHz
• Conductor Gauge Support: 22-26 AWG Solid or Stranded
• Contact Plating: 50 Micron Gold-Plated
• Housing Material: High-Impact, Fire-Retardant Plastic (PC)
• IDC Contacts Material: Phosphor Bronze
• Compatibility: Standard Keystone Wall Plates & Patch Panels
• Standards Compliance: TIA/EIA 568-C.2, ISO/IEC 11801
• Certifications: RoHS, REACH
• Installation Tool Required: 110 Punch Down Tool (not included)

Recommendations

For optimal performance, use with a compatible 110 punch-down tool and ensure proper cable termination following TIA/EIA standards. This product is ideal for new installations or upgrades to Cat6 infrastructure.
