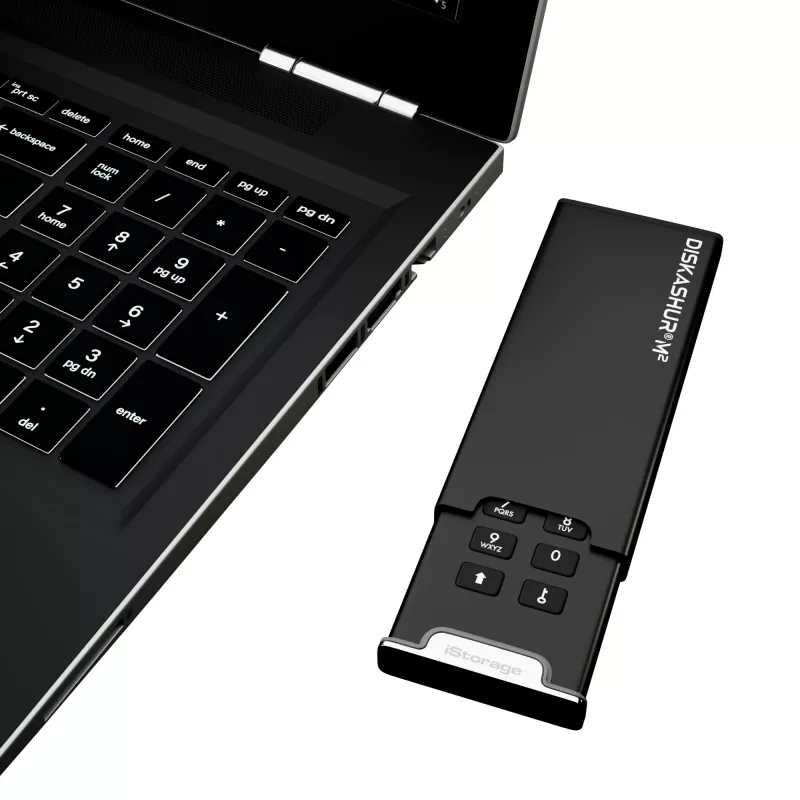

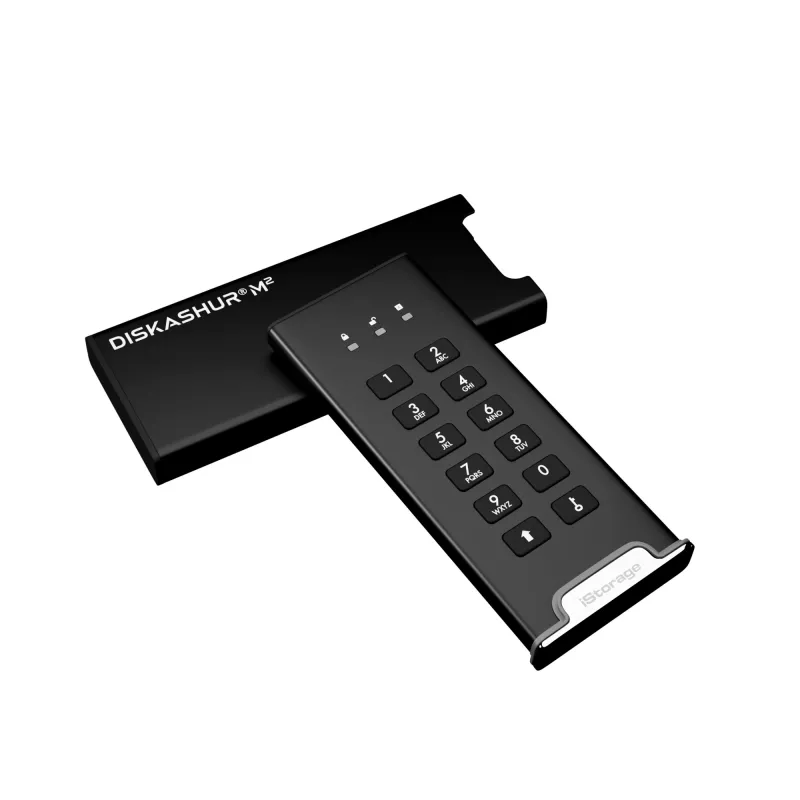

SSD iStorage diskAshur M2 PIN 1 TB USB Type-A Type-C

The iStorage diskAshur M2 PIN 1 TB is a hardware-encrypted portable SSD with USB Type-A and Type-C connectivity. It uses AES-XTS 256-bit hardware encryption validated to FIPS PUB 197 and incorporates a Common Criteria EAL 5+ certified secure microprocessor. The device is designed to be rugged and ultra-portable, offering IP68 dust and water protection, shock and crush resistance, and fast USB 3.2 backwards-compatible transfer speeds.

Advantages

The diskAshur M2 provides strong, certified hardware encryption with AES-XTS 256-bit and a tamper-evident epoxy-covered design. It features an onboard polymer-coated keypad for wear resistance and to obscure commonly used keys, separate User and Admin PINs with configurable recovery options, and a read-only (write protect) dual mode for controlled deployments. The drive is OS- and host-independent and requires no software to operate.

Suitable for

• Secure transport of sensitive corporate or government data
• Field use where durability and water/dust resistance are required
• Pre-provisioned distribution of read-only content to end users
• Booting an operating system from an external, encrypted drive

Key specifications

• Capacity: 1 TB
• Encryption: AES-XTS 256-bit (FIPS PUB 197 validated)
• Security: Common Criteria EAL 5+ certified secure microprocessor
• Connectivity: USB Type-C and USB Type-A (USB 3.2, backwards compatible)
• Performance: up to 370 MB/s read/write (manufacturer summary)
• Durability: IP68 (submersible to 1.5 m for 30 minutes), drop safe up to 4 m, crush resistant to 2.7 ton
• PIN: 7–15 digit User PIN; Admin PIN and one-time recovery PIN configurable

How to use

Authenticate the diskAshur M2 by entering your 7–15 digit User PIN on the onboard keypad, then connect the drive to a host via the included USB Type-C or Type-A cable to use it like a normal portable SSD. No software installation is required. If the User forgets their PIN, the Admin PIN or the one-time recovery PIN (if configured by the administrator) can be used to unlock the device and allow the User to set a new PIN. The Admin may also set PIN complexity rules such as minimum length and required special characters.

Recommendations

Use the Admin PIN to pre-provision drives for distribution, enable read-only mode for immutable content where needed, and store recovery PINs securely. Regularly back up important data and follow organisational policies for PIN management and physical security.
