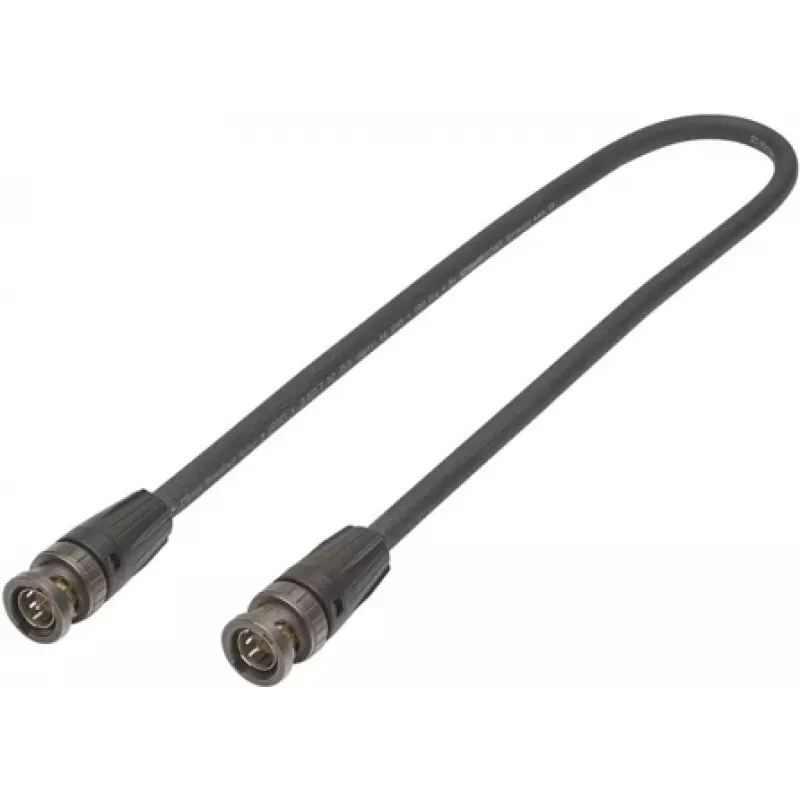

SOMMER CABLE V8GX-1000-SW-SW Video Patch Cable 4K SC-Vector PLUS 0.8/3.7 DZ BNC/BNC Black 10.0m

The SOMMER CABLE V8GX-1000-SW-SW is a professional 4K video patch cable designed for demanding broadcast and AV applications. Featuring the SC-Vector PLUS 0.8/3.7 DZ construction, this cable delivers exceptional signal integrity for SDI signals up to 12G-SDI. With a length of 10.0 meters and black PVC jacket, it is ideal for studio, live event, and post-production environments.

Advantages

• Supports resolutions up to 4K UHD for future-proof connectivity
• Double shielding (copper braid + AL/PT foil) minimizes interference
• Gold-plated BNC connectors ensure reliable, corrosion-free contact
• 75 Ω impedance matched for broadcast video equipment
• Robust PVC jacket protects against wear and tear

Suitable for

• Broadcast studios and OB vans
• Video production and post-production suites
• Live event and staging setups
• Security and surveillance systems
• Any professional SDI video installation

Key specifications

• Product Type: Video Patch Cable
• Cable Series: SC-Vector PLUS 0.8/3.7 DZ
• Impedance: 75 Ω
• Supported Resolution: Up to 4K UHD
• Supported Standards: SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
• Connector Type A: BNC Male
• Connector Type B: BNC Male
• Cable Length: 10.0 m
• Cable Color: Black
• Inner Conductor Diameter: 0.8 mm
• Dielectric Diameter: 3.7 mm
• Outer Cable Diameter: Approx. 6.0 mm
• Conductor Material: Bare Copper
• Dielectric Material: Gas-injected PE
• Shielding: Double Shielded (Copper Braid + AL/PT Foil)
• Jacket Material: PVC
• Connector Plating: Gold-plated
• Attenuation @ 1 GHz: < 20 dB/100m
• Return Loss @ 3 GHz: > 15 dB
• Operating Temperature: -20°C to +70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, pair this cable with SOMMER CABLE BNC connectors and use proper cable management to avoid kinking. Suitable for permanent installations and portable setups.
