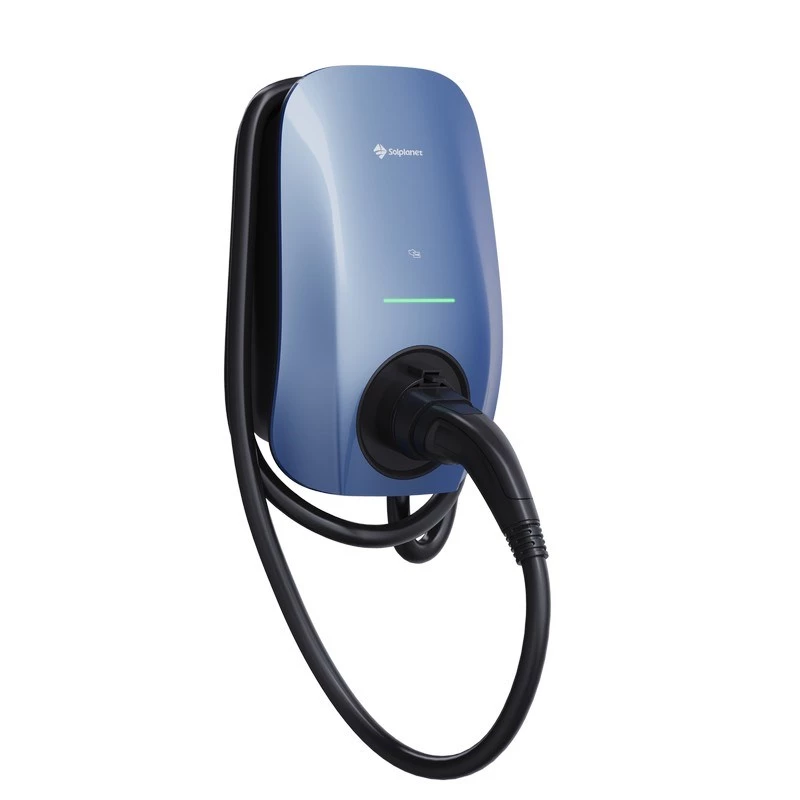

Solplanet SOL22H-WP1 Morandi Blue AC EV Charging Station, 22 kW, 3-Phase, Type 2 with 5m Cable, RFID, Wi-Fi, Bluetooth, NFC, RS485

The Solplanet SOL22H-WP1 is a high-performance AC electric vehicle charging station designed for residential and commercial use. With a maximum charging power of 22 kW and 3-phase connectivity, it ensures fast and efficient charging for your electric vehicle. The station features a Type 2 connector (IEC 62196-2) with a 5-meter integrated cable, providing flexibility and ease of use. Equipped with multiple communication interfaces including Wi-Fi, Bluetooth, NFC, and RS485, the SOL22H-WP1 offers smart connectivity and remote management capabilities. The included RFID authentication system (3 cards provided) ensures secure and controlled access. The Morandi Blue finish adds a stylish touch to any setting.

Advantages

High-power 22 kW 3-phase charging reduces charging time significantly. Multiple communication options (Wi-Fi, Bluetooth, NFC, RS485) enable smart charging management and integration with home energy systems. RFID authentication provides secure user access and billing capabilities. The 5-meter cable offers convenient reach without the need for an extension. Compact and lightweight design (5.1 kg) allows for easy wall mounting. 2-year warranty ensures reliability and peace of mind.

Suitable for

• Home EV charging with high power requirements
• Commercial parking lots and workplaces
• Fleet charging stations
• Public charging infrastructure
• Smart home energy management systems

Key specifications

• Charging Type: AC
• Maximum Charging Power: 22 kW
• Number of Phases: 3-Phase
• Connector Type: Type 2 (IEC 62196-2) with 5m cable
• Communication Interfaces: Wi-Fi, Bluetooth, NFC, RS485
• Authentication Method: RFID (3 cards included)
• Input Voltage: 400V AC (3-Phase)
• Maximum Output Current: 32 A
• Color: Morandi Blue
• Weight: 5.1 kg
• Warranty: 2 years

Recommendations

For optimal performance, ensure your electrical installation supports 3-phase 400V AC and a minimum 32A circuit breaker. Professional installation by a qualified electrician is recommended. The charging station is compatible with all electric vehicles equipped with a Type 2 inlet. Use the Solplanet app for remote monitoring and scheduling.
