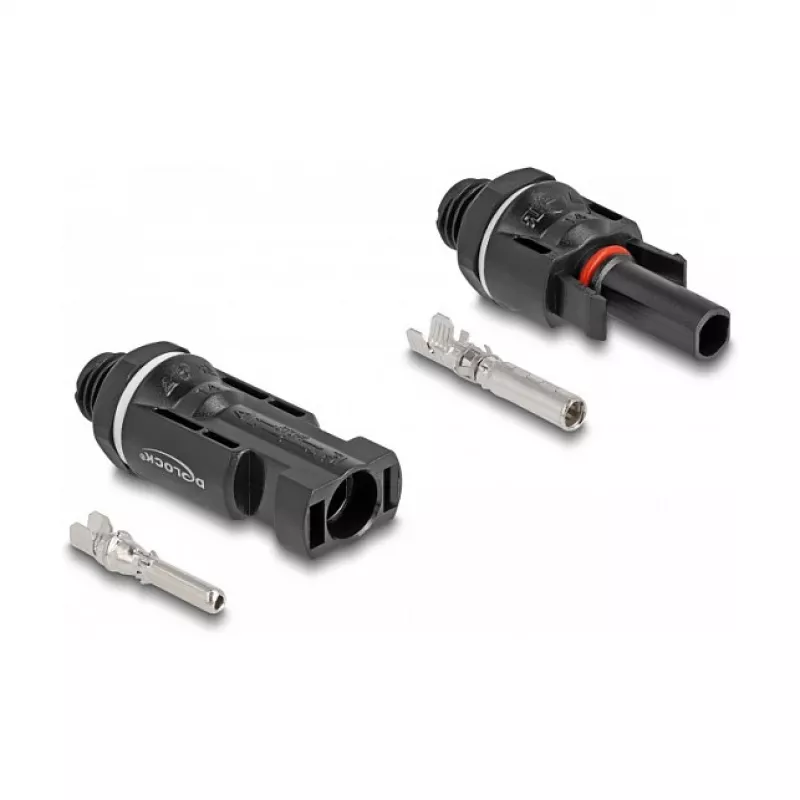

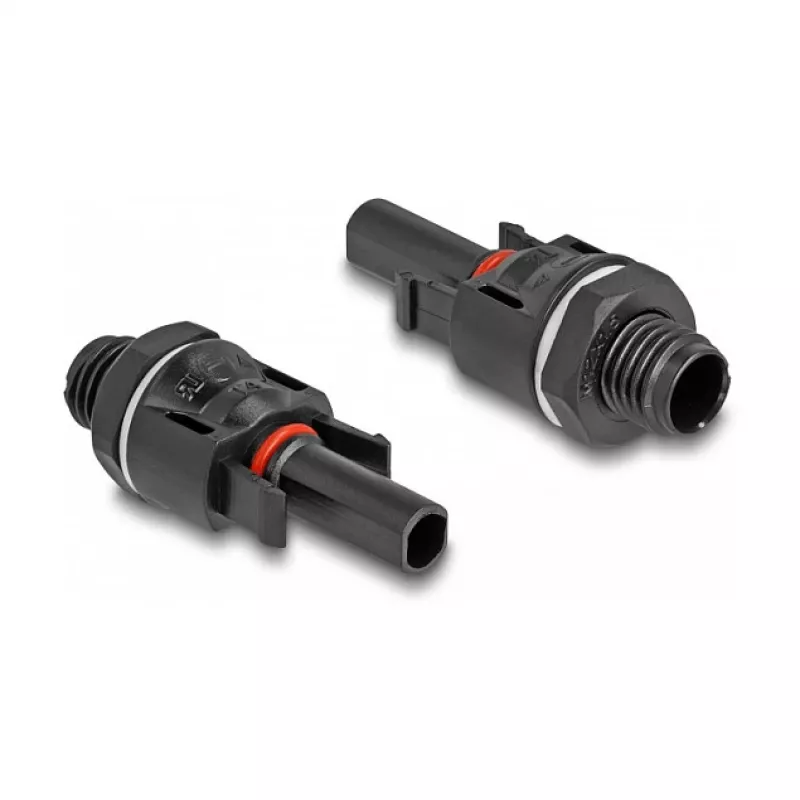

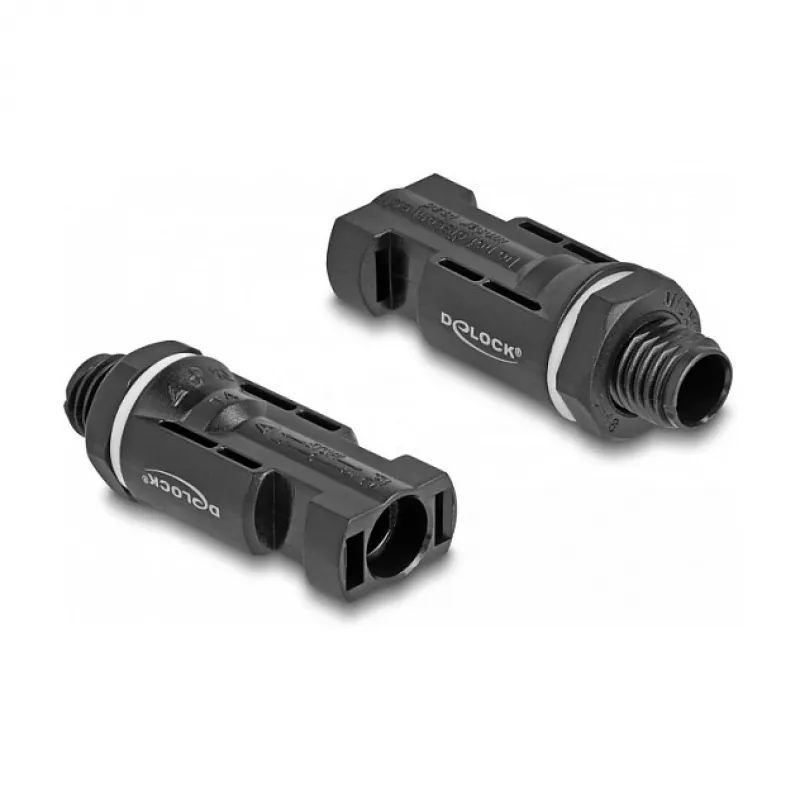

Solar Panel Connector DeLOCK DL4 Male Female Black 2 pcs

DeLOCK DL4 solar connectors are crimp-style male and female plugs designed to connect components in photovoltaic systems and transmit generated power. The connectors are black and supplied as a pair, suitable for use in solar panel installations and related wiring.

Advantages

The DL4 plugs and sockets feature a snap-in locking mechanism that prevents accidental disconnection while allowing release with the appropriate tool. The connectors are rated IP67 for dust and water protection, providing resistance to dirt and moisture in outdoor installations.

Suitable for

• Connecting solar panels to cables and junctions
• Extending or repairing photovoltaic wiring
• Outdoor solar installations requiring IP67-rated connectors

Key specifications

• Type: Crimp solar connector pair (male + female)
• Model: DeLOCK DL4
• Quantity: 2 pieces (1 male, 1 female)
• Color: Black
• Protection class: IP67 (dust and water resistant)
• Brand: DELOCK
• MPN: 60028
• EAN: 4043619600281

How to use

Prepare the cable ends and crimp the appropriate terminals onto the conductors using a compatible crimping tool. Insert the crimped terminals into the male and female housings until the snap-in mechanism engages. Connect male and female halves to transmit power; use the correct tool to release the snap lock when disconnection is required.

Recommendations

Use suitable cable cross-sections and a certified crimping tool for reliable electrical contact. Ensure connectors are fully engaged and inspected for damage before outdoor installation. Store unused connectors in a dry place to preserve the IP67 sealing.
