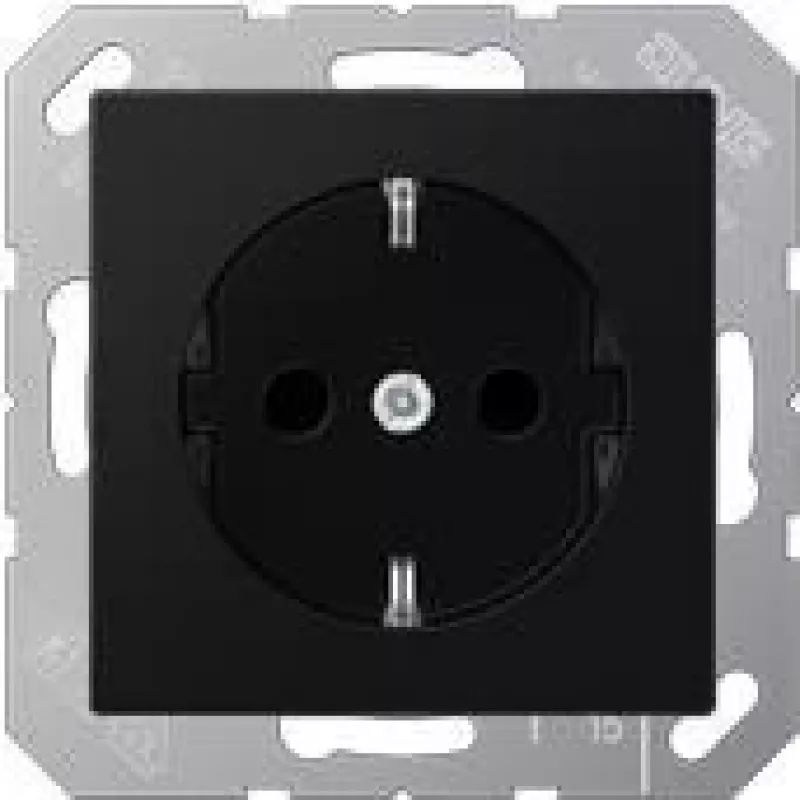

Socket outlet Type F Jung A 1520 BFKI SWM — 250 V, 16 A, thermoplastic, 55×55 mm, black/graphite

Socket outlet Type F Jung A 1520 BFKI SWM — 250 V, 16 A, thermoplastic, 55×55 mm, black/graphite
Socket outlet Type F Jung A 1520 BFKI SWM — 250 V, 16 A, thermoplastic, 55×55 mm, black/graphite
R550
Jung A 1520 BFKI SWM is a Type F socket outlet for indoor electrical installations. Rated for 250 V and up to 16 A, it features a thermoplastic housing in a black/graphite finish and compact dimensions of 55×55 mm. The unit is a single-piece outlet with enhanced contact protection (shutter) and scre... Read More
Stock 69 Code 1491084 Brand JUNG Model A1520BFKISWM Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Jung A 1520 BFKI SWM is a Type F socket outlet for indoor electrical installations. Rated for 250 V and up to 16 A, it features a thermoplastic housing in a black/graphite finish and compact dimensions of 55×55 mm. The unit is a single-piece outlet with enhanced contact protection (shutter) and screwless terminals that accept conductors up to 2.5 mm², intended for standard mains connections in residential and commercial environments.

Advantages

The socket offers enhanced contact protection to reduce accidental contact with live parts, and screwless terminals simplify wiring while providing reliable clamping for conductors up to 2.5 mm². The thermoplastic housing delivers electrical insulation and a consistent surface finish in black/graphite. The integrated supporting frame, claws and claw screws are part of the earthing protection design, enabling straightforward installation in compatible mounting systems.

Suitable for

Key specifications

How to use

Turn off the mains supply before beginning installation. Mount the outlet into a compatible 55×55 mm installation box and secure it according to the mounting system used. Insert live, neutral and earth conductors into the screwless terminals, ensuring conductor insulation is stripped to the recommended length and wires are fully inserted to achieve a secure connection. Restore power and test the outlet for correct operation and earth continuity. For maintenance, isolate the circuit prior to inspection or replacement.

Recommendations

Use the outlet only within its rated voltage and current limits (250 V, 16 A). Ensure wiring is performed by a qualified electrician and complies with local regulations. For installations without claws, select the appropriate variant; for projects requiring screw terminals, choose the corresponding model. Regularly check connections in high-use environments and replace the unit if any mechanical damage or loss of contact protection is observed.

Key Highlights
  • General indoor power outlets in homes and apartments
  • Power supply points in offices, retail and light commercial spaces
  • Renovation projects where compact 55×55 mm dimensions are required
  • Installations requiring enhanced contact protection for safety
  • Rated voltage: 250 V
  • Rated current: 16 A
  • Socket type: Type F (Schuko) with protective earth
  • Housing material: thermoplastic
  • Finish: black/graphite
  • Overall dimensions: 55 × 55 mm
  • Wire connection: screwless terminals for conductors up to 2.5 mm²
  • Enhanced contact protection: built-in shutter
  • Integrated earthing components: supporting frame, claws and claw screws included
Specifications
Frame
No
Height
55 mm
Housing material
Thermoplastic
Number of products included
1 pc(s)
On/off switch
No
Over voltage protection
No
Product colour
Black, Graphite
Rated current
16 A
Rated voltage
250 V
Socket type
Type F
Sockets quantity
1
Suitable location
Universal
Width
55 mm
