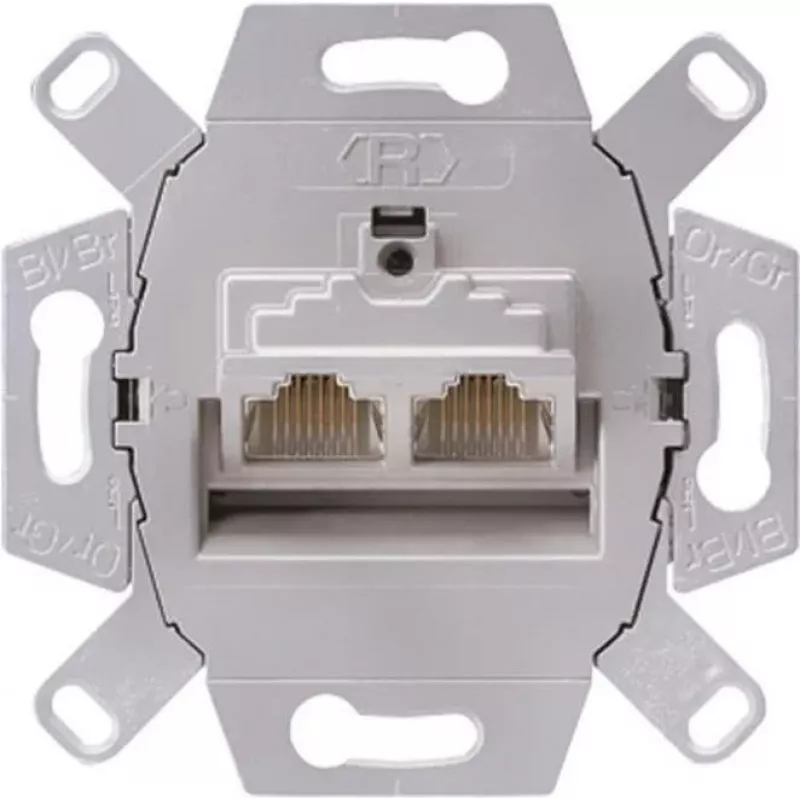

Socket outlet 2 x RJ-45 JUNG UAE 8-8 UPOK6

The JUNG UAE 8-8 UPOK6 is a dual-port socket outlet with two RJ-45 connectors supporting Category 6A / Class EA cabling for high-speed network applications. The outlet is shielded and designed for LSA connection terminals with screw fixing only (no claws). It accepts cable entry from all directions without sharp bends and is compatible with standard wall boxes. The module supports data rates up to 10 Gbit/s and frequencies to 500 MHz, and is suitable for PoE+ power delivery according to IEEE 802.3at.

Advantages

The shielded construction and LSA screw terminal provide robust connection quality and reduced electromagnetic interference. Conformance to Cat. 6A standards (ISO/IEC 11801 Amendment 2 and TIA/EIA-568-B.2-10) ensures compatibility with modern network infrastructure. The design allows variable cable entry without sharp bending and is intended for standard installation boxes, simplifying mounting and cable management.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the socket outlet into a standard wall box and secure it using the screw fixing. Terminate network cables on the LSA connection terminals following the color code for Category 6A wiring. Ensure shielding continuity by connecting the cable shield to the outlet’s shielded housing. Route cables to avoid sharp bending at the entry points and maintain proper bend radius for Cat. 6A cabling.

Recommendations

For optimal performance, use certified Cat. 6A cables and connectors, keep cable runs within standard length limits for 10 Gbit/s links, and follow grounding guidelines for shielded installations. Verify termination and test the installed links with appropriate network testers.
