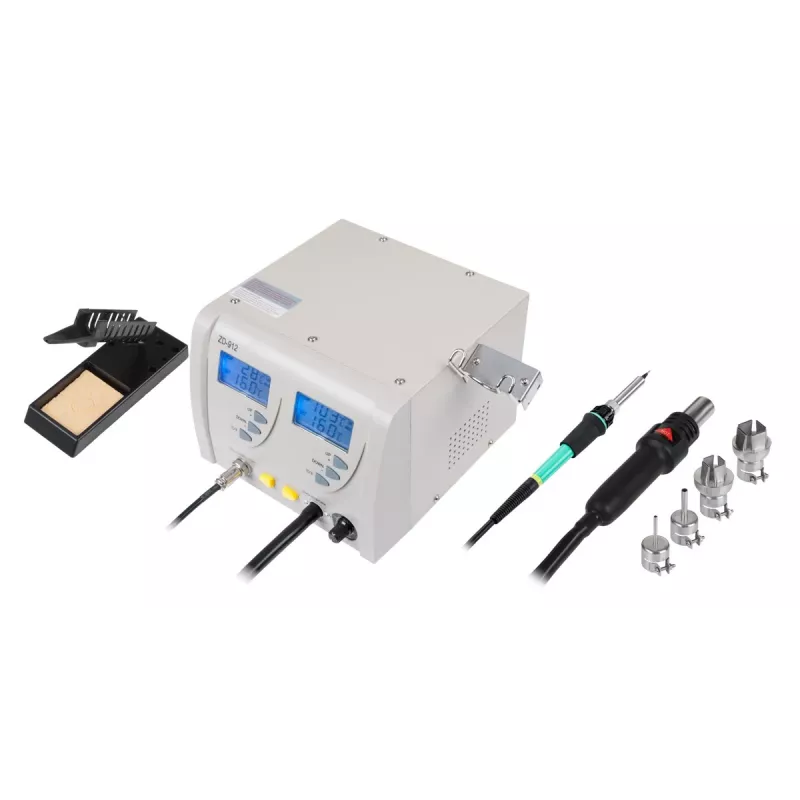

SMD Soldering Station (Hot Air + Flask Soldering Iron) - 2-in-1 Rework Station with Dual LED Display, 700W, ESD Safe

Repairing modern electronics with tiny SMD components can be frustrating without the right tools. This SMD soldering station combines a powerful hot air gun and a precision soldering iron in one compact unit, giving you the ability to handle everything from delicate rework to heavy soldering jobs. With dual LED digital displays, you can monitor and adjust both temperature and airflow independently, ensuring consistent results every time.

Who is it for

This station is ideal for electronics repair technicians, hobbyists, and engineers who work with surface-mount devices, circuit boards, and other sensitive components. Whether you're replacing a BGA chip, soldering fine-pitch ICs, or reflowing solder joints, this tool provides the control and reliability you need.

Main features

• 2-in-1 design: hot air rework gun and soldering iron in one station
• Hot air gun power: 600W; soldering iron power: 60W; total power: 700W
• Hot air temperature range: 100°C to 480°C; soldering iron temperature range: 200°C to 480°C
• Brushless fan delivers up to 120 L/min airflow for efficient heat transfer
• Dual LED digital displays for precise temperature and airflow control
• Ceramic heating elements in both hot air gun and soldering iron for fast heat-up and long life
• ESD safe design protects sensitive components from static damage
• Auto cooling function extends the life of the heating elements
• Compatible with standard 22mm hot air nozzles
• Temperature stability: ±1°C (static); tip-to-ground resistance <2 Ohms; tip-to-ground potential <2 mV

Specifications

• Input voltage: 220-240V AC, 50/60Hz
• Hot air gun power: 600W
• Soldering iron power: 60W
• Total power consumption: 700W
• Hot air temperature range: 100°C - 480°C
• Soldering iron temperature range: 200°C - 480°C
• Air flow type: brushless fan
• Max air flow volume: 120 L/min
• Display type: dual LED digital display
• Temperature stability: ±1°C (static)
• Heating element (hot air): ceramic core
• Heating element (soldering iron): ceramic heater
• Tip-to-ground resistance: <2 Ohms
• Tip-to-ground potential: <2 mV
• ESD safe: yes
• Auto cooling function: yes
• Nozzle compatibility: standard 22mm hot air nozzles

Tips

Always use the correct nozzle size for your component to avoid overheating adjacent parts. Allow the station to cool down completely before storing, and keep the soldering iron tip tinned to prevent oxidation. For best results, use lead-free solder with the appropriate temperature settings.
