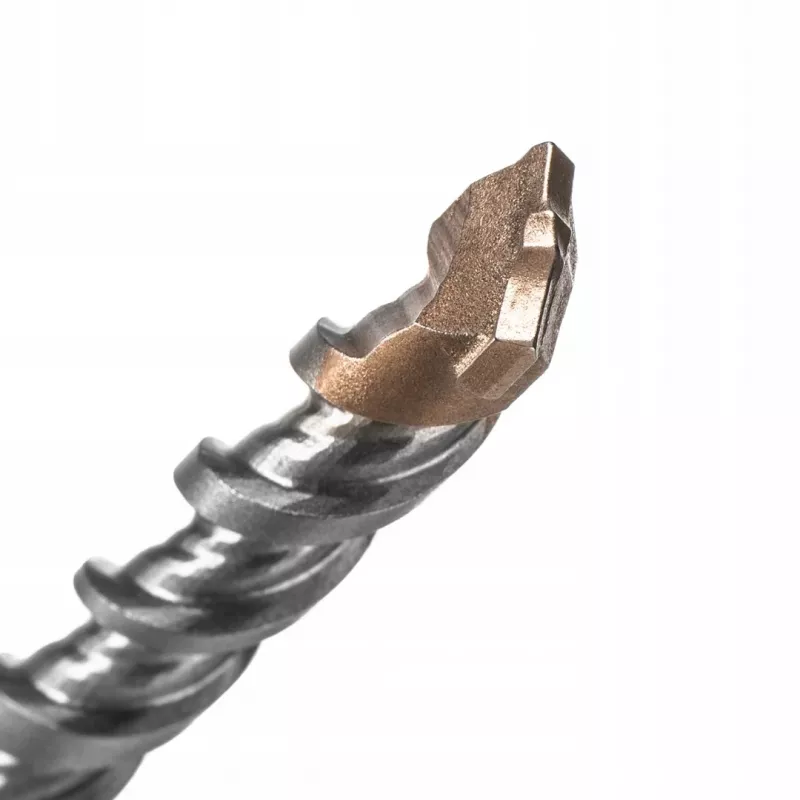

SMART365 SDS Plus Duo Drill Bit 16x1000/950 mm

The SMART365 SDS Plus Duo Drill Bit is a professional-grade tool designed for heavy-duty hammer drilling in concrete, masonry, stone, and brick. With a diameter of 16 mm and a total length of 1000 mm (working length 950 mm), this bit features a dual cutting edge (DUO) design for faster drilling and improved dust removal. The tungsten carbide tip ensures high wear resistance and longevity, while the SDS Plus shank provides secure compatibility with rotary hammer drills.

Advantages

Dual cutting edges increase drilling speed and efficiency. Optimized flute design enhances dust removal, reducing clogging and extending bit life. The centering tip ensures precise starting and reduces walking. High-grade steel core with heat treatment offers durability for professional use.

Suitable for

• Concrete
• Masonry
• Stone
• Brick

Key specifications

• Shank Type: SDS Plus
• Drill Bit Diameter: 16 mm
• Total Length: 1000 mm
• Working Length: 950 mm
• Cutting Edges: 2 (DUO)
• Tip Material: Tungsten Carbide
• Flute Design: Double Flute
• Centering Tip: Yes
• Core Material: High-grade Steel
• Heat Treatment: Yes
• Dust Removal: Optimized Flute Design
• Durability: High Wear Resistance
• Recommended Use: Professional and Heavy-Duty Applications
• Compatible Tools: SDS Plus Rotary Hammer Drills

Recommendations

For best results, use with a rotary hammer drill in hammer mode. Ensure the shank is clean and lubricated for easy insertion and removal. Always wear appropriate safety gear including eye protection and hearing protection.
