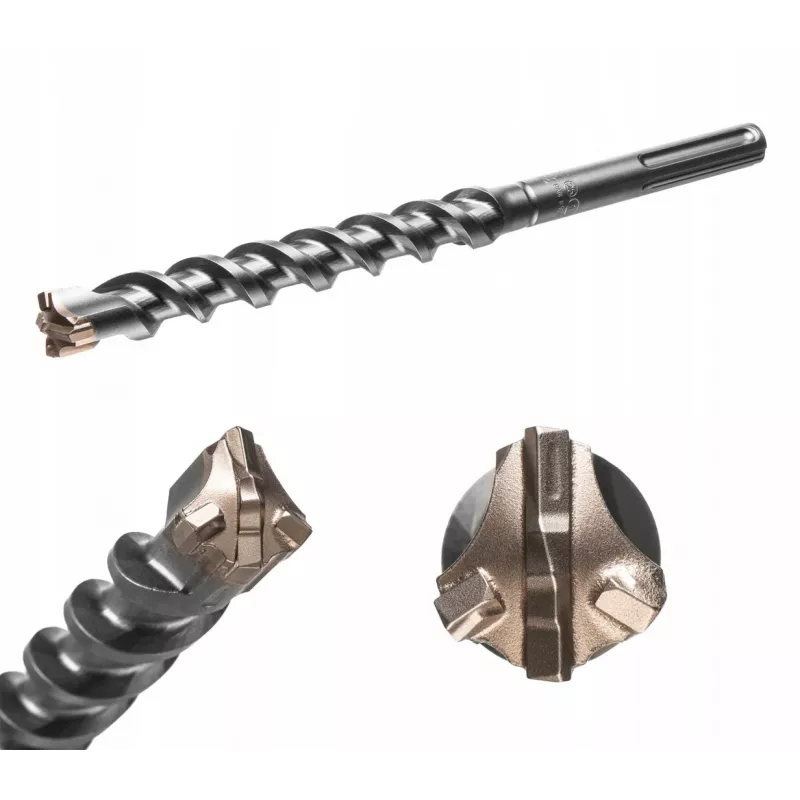

SMART365 SDS-MAX Hammer Drill Bit 14x540/400 mm

The SMART365 SDS-MAX Hammer Drill Bit 14x540/400 mm is a high-performance drilling tool designed for professional use in concrete, reinforced concrete, masonry, and natural stone. Featuring a 4-cutter cross head with tungsten carbide tips, this bit delivers rapid drilling and extended service life. The reinforced core and optimized flute design ensure efficient dust removal and enhanced durability, making it ideal for heavy-duty applications with SDS-MAX rotary hammer drills.

Advantages

High wear resistance and impact strength due to high-grade alloy steel construction. The centering tip provides accurate hole starts, while the 4-cutter geometry increases drilling speed and reduces vibration. Optimized flute design rapidly removes debris, preventing clogging and overheating.

Suitable for

• Concrete and reinforced concrete
• Masonry and natural stone
• Heavy-duty construction and renovation
• Professional drilling with SDS-MAX rotary hammers

Key specifications

• Shank Type: SDS-MAX
• Drill Bit Diameter: 14 mm
• Total Length: 540 mm
• Working Length: 400 mm
• Material: High-grade Alloy Steel
• Tip Material: Tungsten Carbide
• Cutter Design: 4-Cutter Cross Head
• Drilling Method: Hammer Drilling
• Packaging: Single Unit
• Color: Silver/Grey

Recommendations

For optimal performance, use with a compatible SDS-MAX rotary hammer drill. Ensure the drill bit is securely locked before operation. Always wear appropriate personal protective equipment (PPE) when drilling.
