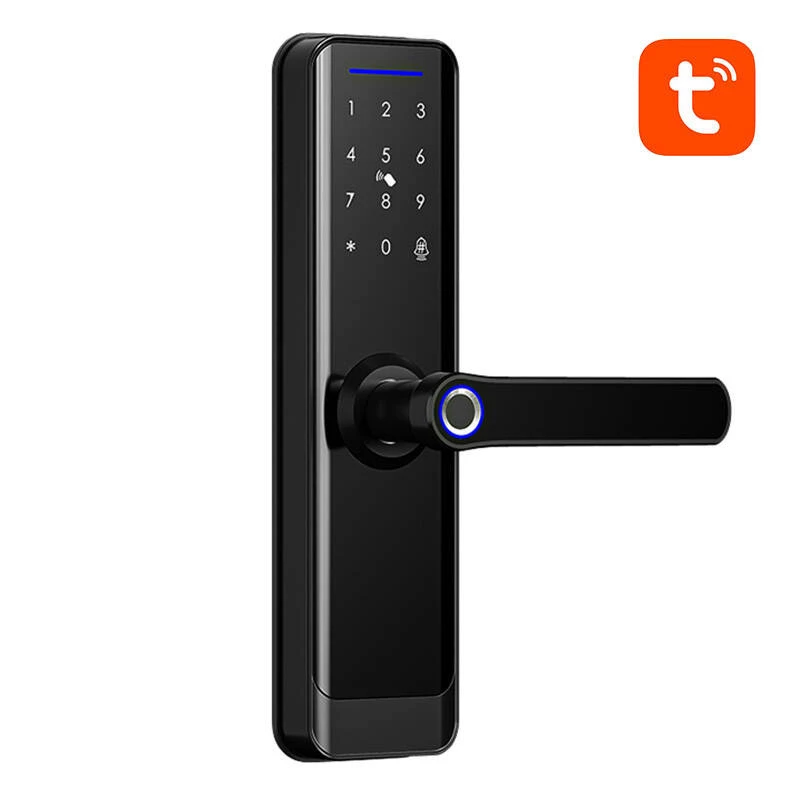

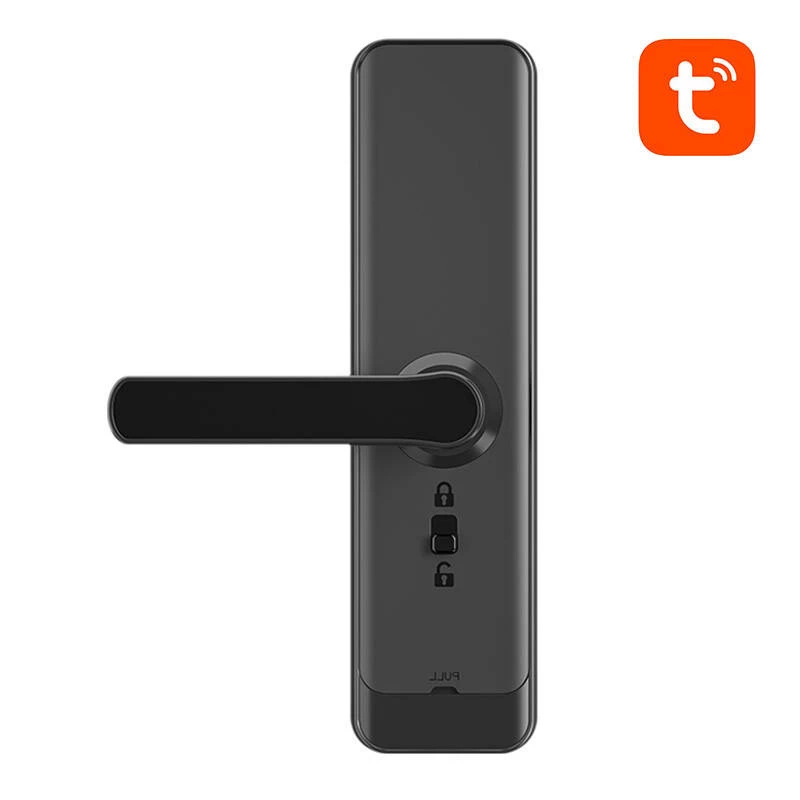

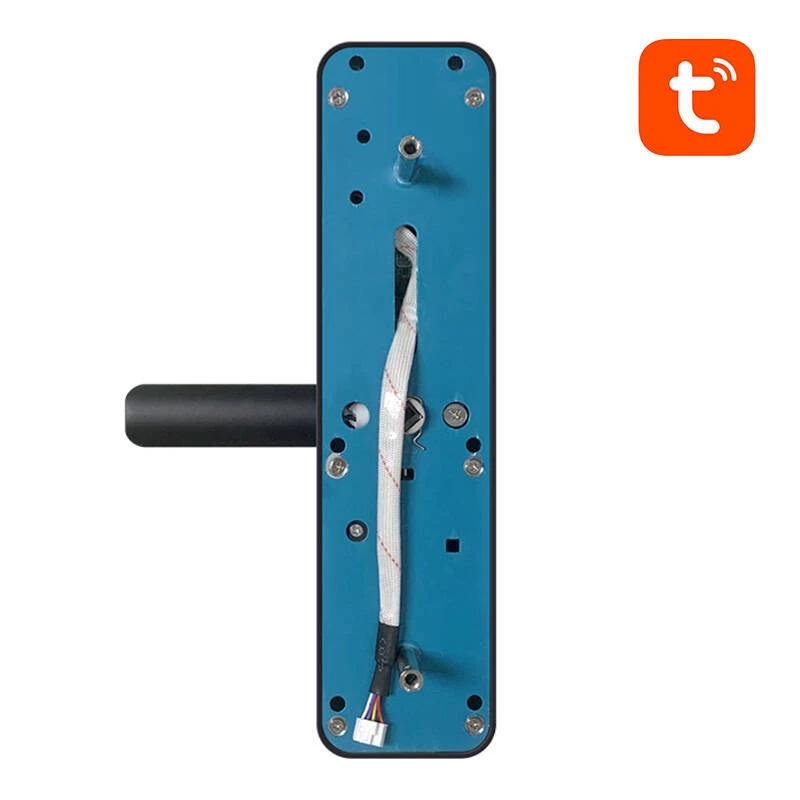

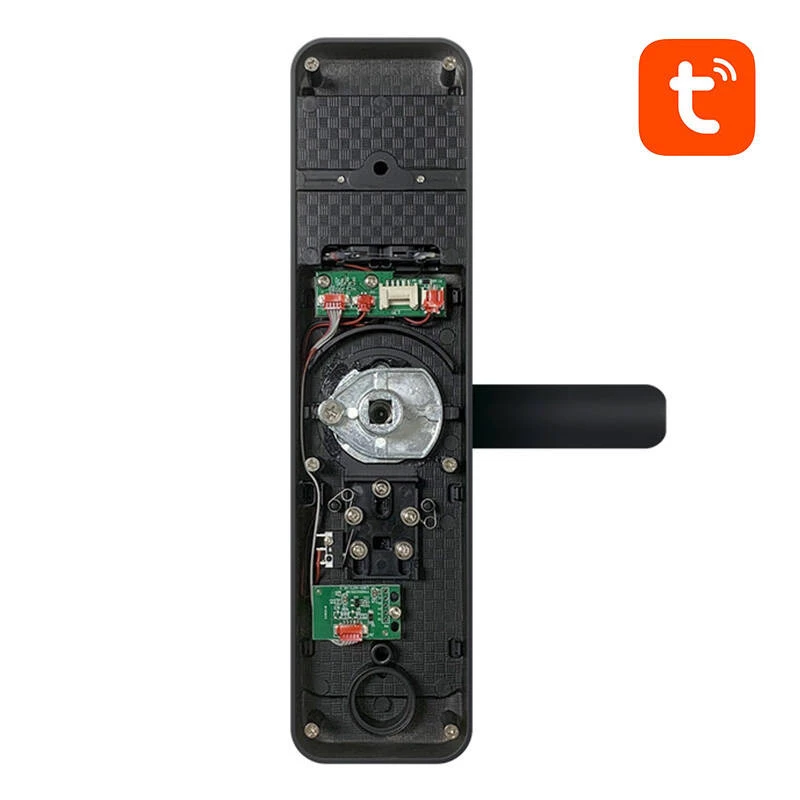

Smart door lock Avatto ZSDL-A270-B-ALI-5572 ZigBee Black, digital keypad and wireless connection

Avatto ZSDL-A270-B-ALI-5572 ZigBee smart digital lock in black. The lock combines multiple access methods — fingerprint, IC card, password, mobile app and traditional key — and supports remote management and access monitoring via compatible apps. Equipped with a ZigBee/Wi‑Fi module for smart home integration, it fits doors 35–60 mm thick, offers fast opening (1–1.5 s), long battery life and IP55 weather resistance for reliable everyday use.

Advantages

The lock provides five different unlocking methods to suit various users and situations, plus fast response time. Remote control and event logging through Tuya Smart or SmartLife apps enable convenient access management. Powered by four AA alkaline batteries, it delivers long operation between replacements and supports external power supply in emergencies. The IP55 rating and wide operating temperature and humidity ranges ensure durability in outdoor-exposed or variable environments. Multilanguage support expands usability for diverse households or businesses.

Suitable for

• Residential exterior and interior doors with 35–60 mm thickness
• Rental apartments and short-term rentals with temporary access needs
• Small offices and commercial premises requiring controlled access
• Smart home systems using ZigBee/Wi‑Fi and Tuya/SmartLife integration

Key specifications

• Materials: aluminum alloy, ABS, tempered glass
• Color: black
• Door thickness compatibility: 35–60 mm
• Power supply: 4 × AA alkaline batteries (6 V); external power input for emergency use
• Battery life: approximately 10–12 months (typical use)
• Unlock methods: fingerprint, IC card, password, mobile app, mechanical key
• Lock opening time: 1–1.5 seconds
• Connectivity: ZigBee and Wi‑Fi for remote management via Tuya Smart / SmartLife apps
• Compatible OS: iOS 7.0+ and Android 4.4+
• Current consumption: static < 50 μA, dynamic < 200 mA
• Operating temperature: -20°C to 50°C
• Operating humidity: 10–95%
• Ingress protection: IP55
• Available interface languages include Chinese, English, Spanish, Russian and others

How to use

Install the smart lock on a compatible door (35–60 mm thickness) following the included mechanical and wiring instructions. Power the unit with four AA alkaline batteries and pair it with a ZigBee or Wi‑Fi hub if remote control is required. Use the Tuya Smart or SmartLife app to add users, register fingerprints, issue IC cards and configure passwords or time-limited access. For everyday operation, choose an unlocking method — fingerprint, card, code, app or key — and follow on-screen prompts in the app for event logs and access settings. In case of low battery, supply external power (for example, from a powerbank) to temporarily operate the lock while replacing batteries.

Recommendations

For reliable performance, install the lock on doors within the specified thickness range, use quality AA alkaline batteries, and keep the Tuya Smart or SmartLife app updated. Regularly review access logs and update temporary passwords after guest stays. For outdoor installations, ensure the door area is protected from direct water jets despite the IP55 rating.
