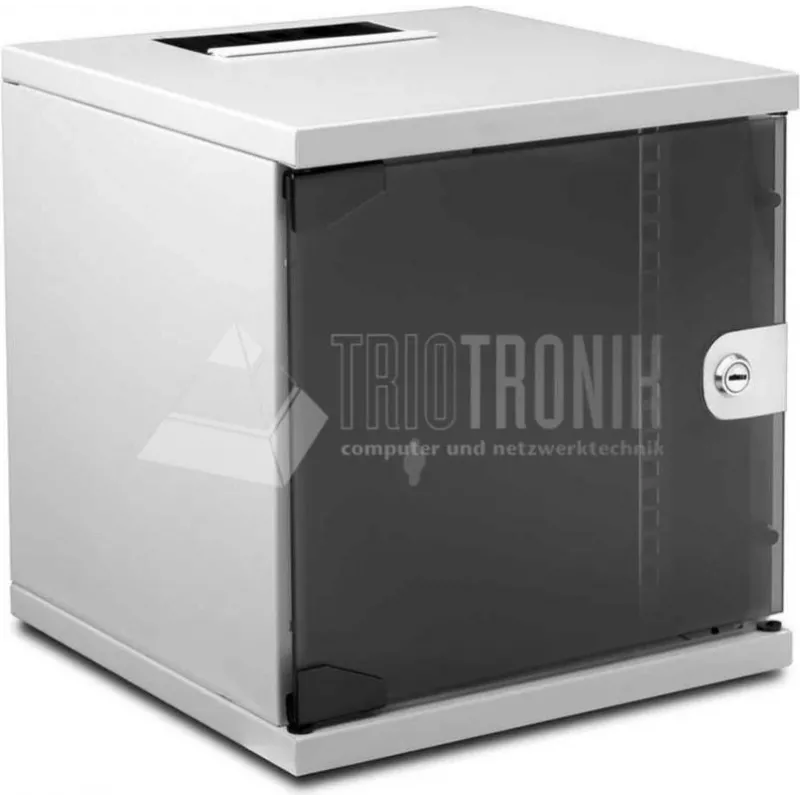

Wirewin WCAB 10 312X300X6U Wall-Mounted Rack 6U White

The Wirewin WCAB 10 312X300X6U wall-mounted rack delivers a space-saving 6U enclosure for 19-inch equipment, finished in clean white powder coating. Its compact 312 mm height and 300 mm depth make it ideal for small network cabinets in offices, retail back rooms, or home installations where floor space is at a premium. Unlike open-frame brackets, this enclosed cabinet protects hardware from dust and unauthorized access while maintaining passive airflow.

Highlights

• 6U capacity for patch panels, switches, and small servers
• Lockable safety glass front door with two keys included
• Removable side panels for easy access during installation
• Top and bottom cable entry with brush strips for clean routing
• Adjustable 19-inch mounting rails, front and rear
• Ventilation slots and fan cut-outs support optional active cooling
• Wall-mounting hardware included for quick setup

In daily use

Mount the cabinet at a convenient height to keep network gear off desks and out of the way. The glass door lets you monitor LED status without opening the enclosure, and the lock deters casual tampering. Brush strips seal cable openings while allowing easy passage, reducing dust ingress. With a 60 kg load capacity, it handles typical SOHO and branch-office equipment. The flat-pack design ships efficiently and assembles in minutes with basic tools.

Full specifications

• Rack units: 6U
• Rack standard: 19-inch
• External dimensions (H x W x D): 312 x 540 x 300 mm
• Material: Steel, powder-coated
• Colour: White (RAL 9003)
• Door: Lockable safety glass front door
• Side panels: Removable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive slots, fan cut-outs
• Protection class: IP20
• Max load capacity: 60 kg
• Mounting rails: Adjustable
• Included accessories: 2 keys, mounting hardware
• Assembly: Required (flat-pack)

Final note

For a tidy, secure wall-mounted network point, the WCAB 10 312X300X6U offers a professional solution without occupying floor space. Its white finish blends into modern interiors while protecting your critical connections.
