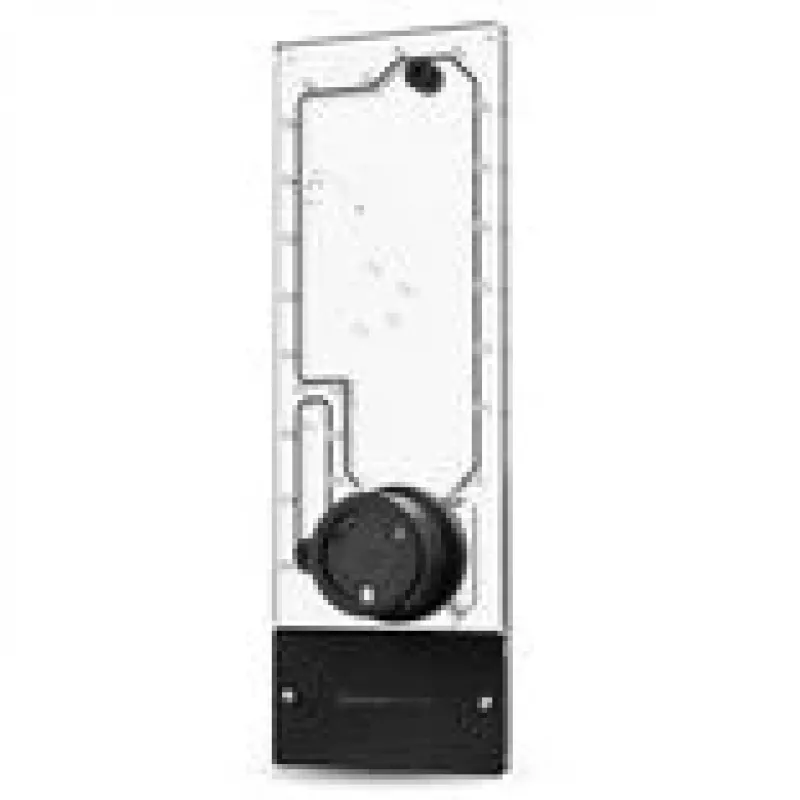

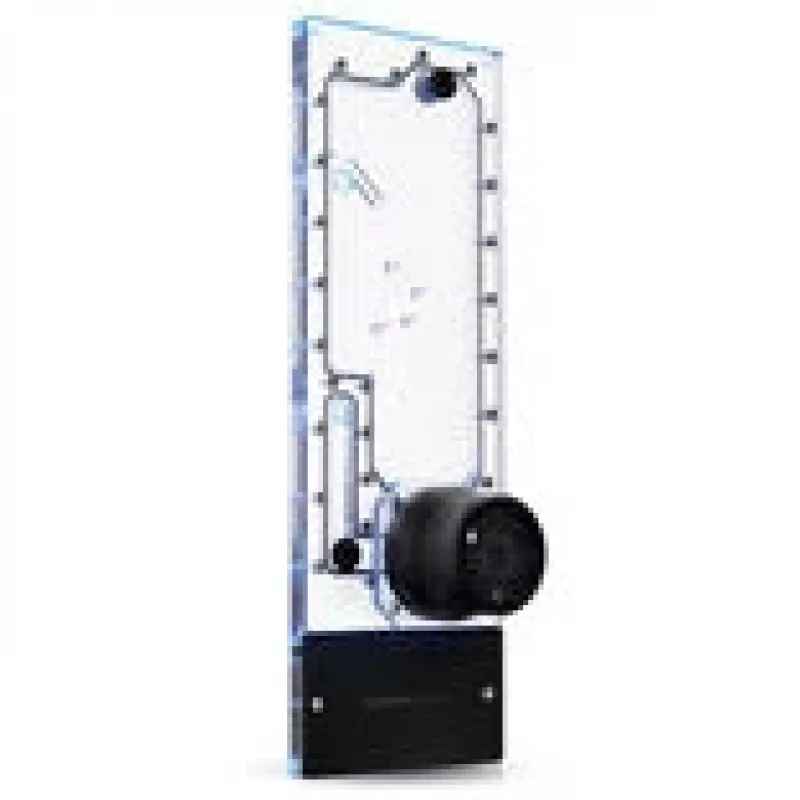

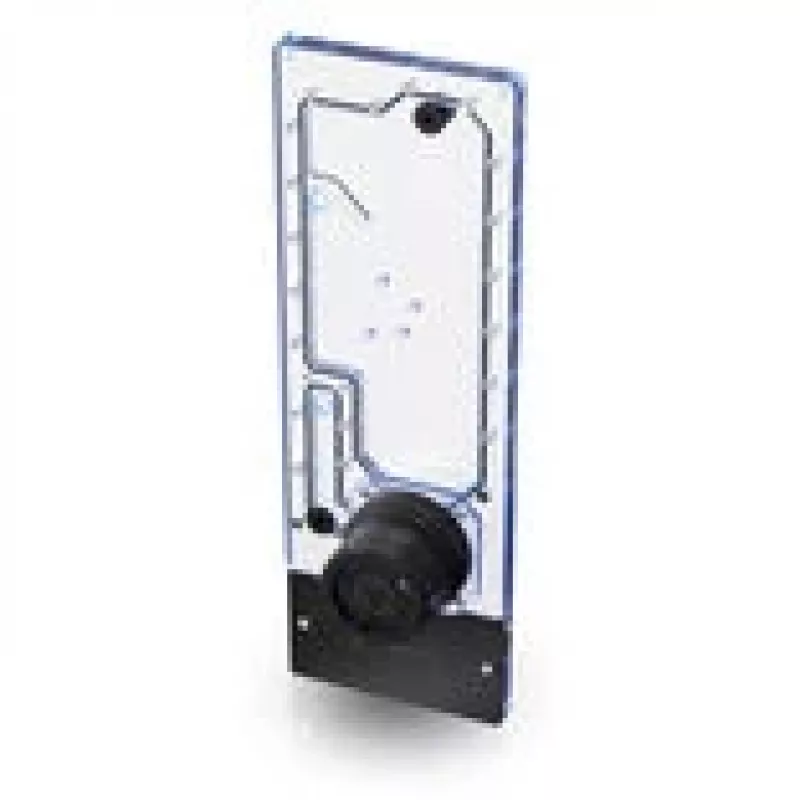

Reservoir Distroplate Singularity Phanteks NV9 D5 for D5 pump, custom water cooling distribution

The Singularity Phanteks NV9 D5 Reservoir Distroplate combines a cylindrical reservoir with an integrated distribution plate designed specifically for systems using a D5-series pump. It provides a compact, organized solution for routing coolant, simplifying fill and bleed procedures, and mounting a D5 pump in a single assembly. The unit is intended for custom water cooling loops and fits installations where a dedicated distroplate or combined reservoir is preferred for cleaner internal cable and tubing management.

Advantages

This reservoir distroplate streamlines loop plumbing by integrating inlet and outlet channels with reservoir capacity and D5 pump mounting points. The combined design reduces the number of separate components, simplifies installation and maintenance, and supports neater tubing runs and faster fill operations. It is engineered to work with D5-series pumps and to provide a stable platform for pump attachment while keeping coolant visible for level checks.

Suitable for

• Custom PC water cooling loops using a D5 pump
• Systems that require tidy internal tubing and simplified fill/bleed access
• Modders and system builders installing a combined reservoir and distroplate in compatible chassis or mounts

Key specifications

• Combined reservoir and distribution plate form factor optimized for D5 pump integration
• Integrated inlet and outlet channels for organized coolant routing
• Visible reservoir section for coolant level monitoring
• Mounting provisions compatible with standard D5-series pump footprint
• Materials and finish suitable for use with common PC coolant fluids

How to use

Mount the distroplate in a compatible location or bracket inside the case following the chassis or bracket manufacturer’s instructions, then attach the D5 pump to the provided mounting points. Connect inlet and outlet tubing to the distroplate channels according to your loop layout, ensuring all fittings are tightened and leak-tested. Fill the reservoir with the chosen coolant, run the pump at low speed for initial circulation while monitoring for leaks, and top up the reservoir as necessary until air is fully purged from the loop.

Recommendations

Use approved coolant fluids and compatible fittings to avoid material incompatibility. Perform an extended leak test before full operation and periodically inspect the reservoir for debris or discoloration. Maintain accessible fill/bleed points and follow pump manufacturer guidance for mounting orientation and operating speeds to ensure reliable long-term performance.
