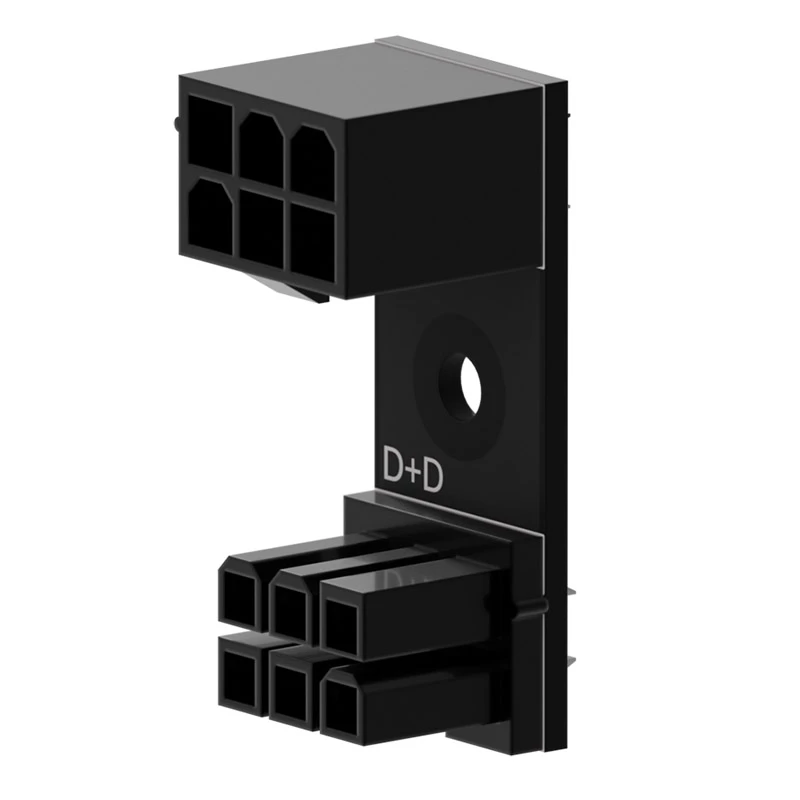

6‑Pin PCIe 180° Adapter D+D Singularity SC‑A‑PCIE6‑DD for GPU/PCIe Power Connection

The 6‑Pin PCIe 180° Adapter D+D Singularity SC‑A‑PCIE6‑DD is a right‑angle adapter that preserves the standard 6‑pin PCIe power interface while changing cable routing by 180 degrees. It is intended for GPU and other PCIe device power connections where space is limited or when a low‑profile cable exit is required. The adapter maintains the conventional 6‑pin layout and is compatible with standard PCIe power cables and connectors, offering a straightforward mechanical solution for tight or custom PC builds.

Advantages

This right‑angle 6‑pin PCIe adapter reduces strain on power cables and connectors by redirecting the cable path to a horizontal orientation, improving cable management in compact cases. The D+D 180° orientation keeps the pin layout consistent with standard PCIe power plugs while allowing clearance behind GPUs or along case walls. The adapter is compact, simple to install, and does not alter the electrical interface of the 6‑pin power connection.

Suitable for

• Small form factor or compact PC cases with limited rear clearance
• GPU installations where the power cable needs to run parallel to the PCB or case wall
• Custom builds with tight cable routing requirements
• Replacing bent or stressed cable connections behind graphics cards

Key specifications

• Connector type: standard 6‑pin PCIe female to 6‑pin PCIe male
• Orientation: 180° D+D right‑angle design for horizontal cable exit
• Compatibility: fits standard PCIe power cables and 6‑pin PCIe power sockets on GPUs and devices
• Form factor: low‑profile compact adapter for limited clearance areas
• Mechanical material: durable molded housing for secure connector fit (manufacturer specification)

How to use

To install, align the adapter's male 6‑pin plug with the 6‑pin receptacle on the GPU or PCIe device and firmly insert until it seats. Connect the standard 6‑pin PCIe power cable to the adapter's female end, ensuring the latch engages if present. Verify the connection is secure and that the cable is routed according to the case layout to avoid interference with fans or other components. Power off the system before installing or removing the adapter and reconnect only when the system is fully powered down.

Recommendations

Use this adapter when physical clearance prevents straight cable routing or when you need to run the power cable parallel to the card or case wall. Avoid stacking multiple adapters in series and ensure connections are fully seated. If you observe excessive heat, arcing, or loose fit, discontinue use and inspect connectors and cables for damage. Maintain good cable management and avoid sharp bends near the adapter to preserve connector integrity.
