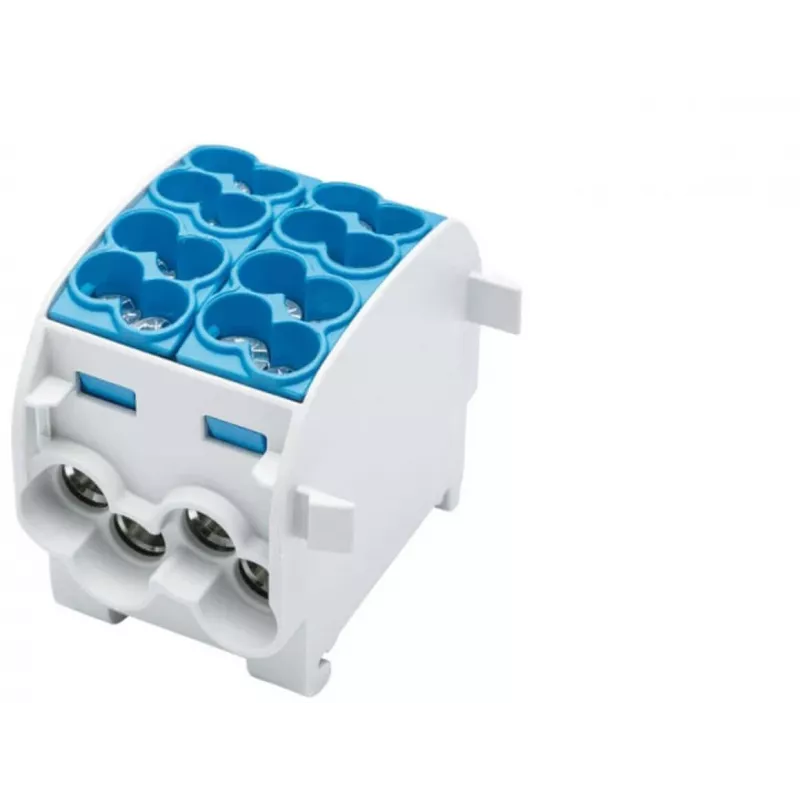

SIMET SCB 25-2 Branch Distribution Block 1-Pole 100A 1000V Al/Cu Blue 81505003

The SIMET SCB 25-2 branch distribution block is a high-quality electrical accessory designed for reliable power distribution in industrial and commercial installations. This 1-pole block accepts a main input conductor of up to 25 mm² and provides two branch outputs of up to 16 mm², supporting both aluminum and copper conductors. With a rated current of 100 A and voltage of 1000 V AC/DC, it is suitable for demanding applications. The block features a blue polyamide (PA6) housing, tin-plated brass conductors, and screw terminals for secure connections. It can be mounted on a 35 mm DIN rail or directly with screws. Compliant with IEC 60947-7-1, it offers an IP20 protection rating and operates in temperatures from -25°C to +80°C.

Advantages

Robust construction with tin-plated brass ensures excellent conductivity and corrosion resistance. The compact design saves space in distribution boards. Easy installation via DIN rail or screw mount. Clear color coding (blue) simplifies identification.

Suitable for

• Power distribution in electrical panels
• Branching of main conductors in industrial installations
• Commercial building electrical systems
• Renewable energy systems (e.g., solar)

Key specifications

• Product Type: Branch Distribution Block
• Number of Poles: 1
• Main Input Cross-Section: 1 x 25 mm²
• Branch Output Cross-Section: 2 x 16 mm²
• Conductor Compatibility: Aluminum and Copper
• Rated Current: 100 A
• Rated Voltage: 1000 V AC/DC
• Insulation Material: Polyamide (PA6)
• Conductor Material: Tin-plated Brass
• Mounting Type: DIN Rail (35 mm) / Screw Mount
• IP Protection Rating: IP20
• Color: Blue
• Connection Type: Screw Terminal
• Operating Temperature: -25°C to +80°C
• Standards: IEC 60947-7-1
• Tightening Torque: 2.5 Nm

Recommendations

Ensure proper tightening torque (2.5 Nm) for reliable connections. Suitable for use with both aluminum and copper conductors; use appropriate anti-oxidation paste for aluminum.
