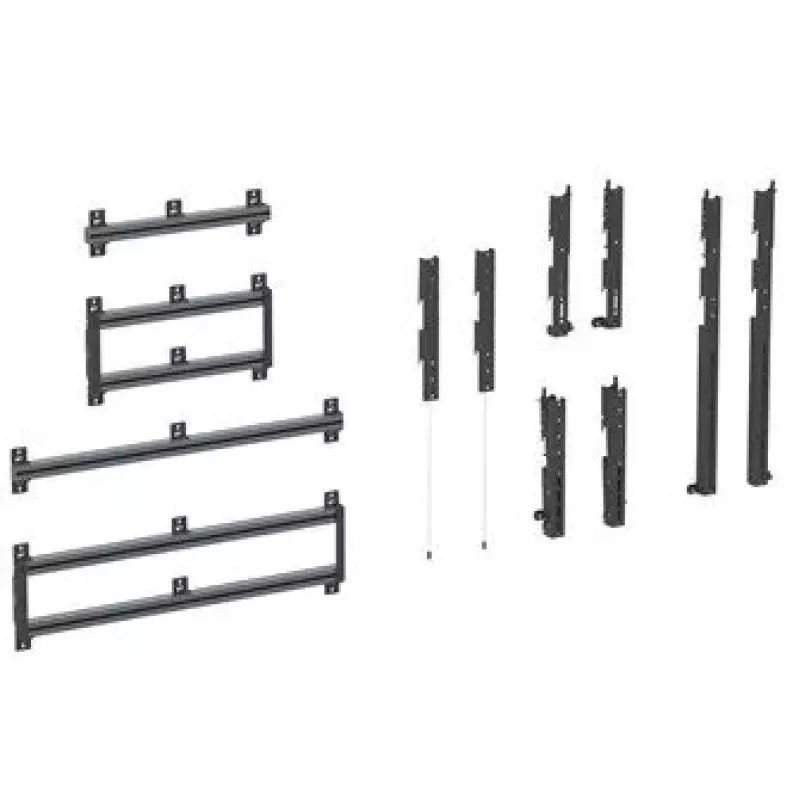

Signage Display Mount SMS Smart Media Solutions PW030006

The SMS Smart Media Solutions PW030006 is a professional modular signage display mount designed to provide maximal stability for large and heavy displays. It supports screens up to 90" and a maximum weight of 200 kg, with an anthracite and grey finish and adjustable height for optimal viewing. The system is modular so you select the wall rails and the display fitting separately to build a tailored solution.

Advantages

The modular pick‑n‑mix design allows selection of a wall bracket and a display fixture that precisely match the display size and weight. The system supports VESA patterns up to 900 x 900 and loads up to 200 kg, offers both landscape and portrait orientations, optional tilt and an ergonomic click locking mechanism that reduces the risk of accidental demounting. Rails are easy to insert and remove and pre‑assembly ensures straightforward installation and stable mounting for large videowalls and signage displays.

Suitable for

• Large digital signage and video walls (up to 90")
• Commercial installations requiring high load capacity (up to 200 kg)
• Portrait or landscape display mounting in public spaces
• Fixed or tilting mount applications in retail, transport hubs and corporate environments

Key specifications

• Maximum weight capacity: 200 kg
• Maximum screen size supported: 90"
• VESA compatibility: up to 900 x 900
• Product colour: Anthracite, Grey

How to use

Choose one wall rail suitable for the weight and size of the display, then select a matching display fixture that provides the required functions (landscape or portrait, with or without tilt, and with optional ergonomic click locking). Attach the wall rails to a suitable load‑bearing surface following the mounting instructions and local building regulations. Insert the rails and engage the display fixture; fine adjustments to height and alignment can be made before securing the click lock.

Recommendations

Order two article numbers for a complete solution: one for the selected wall rails and one for the display fitting. Ensure wall structure and fixings are rated for the combined load and follow installer guidelines for safe mounting.
