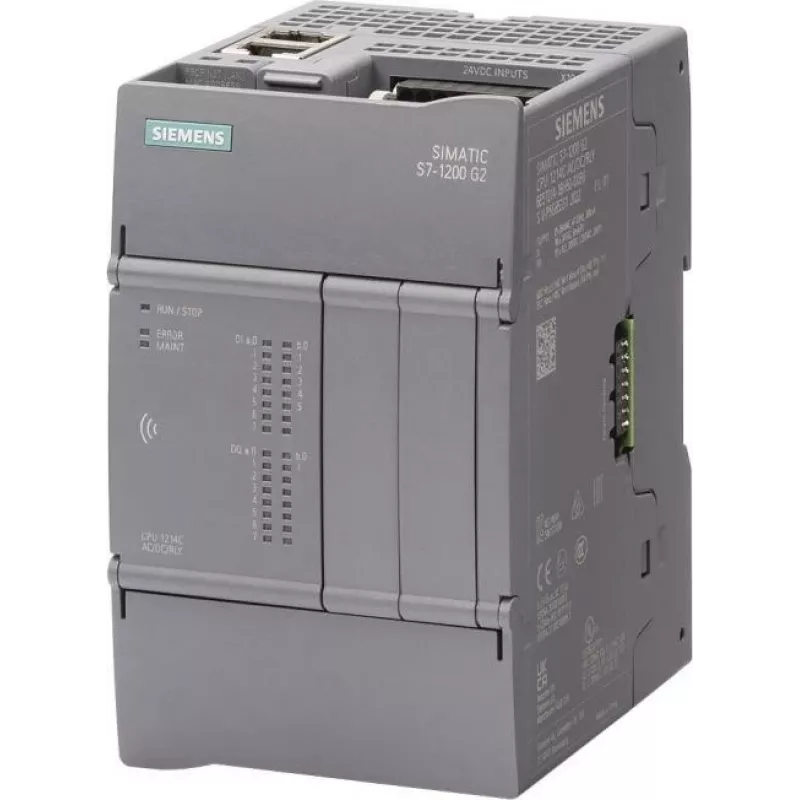

Siemens SIMATIC S7-1200 G2 CPU 1214C DC/DC/Relay 14DI 6ES7214-1HH50-0XB0

The Siemens SIMATIC S7-1200 G2 CPU 1214C DC/DC/Relay is a compact and powerful controller from the second generation of the S7-1200 series. It features 14 digital inputs, 10 relay outputs, and 2 analog inputs, making it ideal for a wide range of automation tasks. With integrated PROFINET interface and support for up to 8 signal modules and 3 communication modules, this CPU offers flexible expansion options. The device operates on 24 V DC and is programmed using the TIA Portal software.

Advantages

High performance with 100 KB work memory and 4 MB load memory. Integrated high-speed counters, PWM, and PID control for precise automation. Compact design saves space in control cabinets. Easy to expand with signal and communication modules.

Suitable for

• Industrial automation and control systems
• Machine building and manufacturing
• Process control and monitoring
• Building automation

Key specifications

• CPU type: CPU 1214C
• Product series: SIMATIC S7-1200
• Generation: G2 (Generation 2)
• Power supply: DC/DC/Relay
• Input voltage: 24 V DC
• Digital inputs: 14 (sink/source)
• Digital outputs: 10 (relay)
• Analog inputs: 2 (10-bit)
• Communication: 1 x PROFINET (RJ45)
• Work memory: 100 KB
• Load memory: 4 MB
• Retentive memory: 10 KB
• Expansion: up to 8 signal modules, up to 3 communication modules
• Programming software: TIA Portal
• Operating temperature: 0 to 50 °C

Recommendations

For optimal performance, use with Siemens SIMATIC S7-1200 signal modules and TIA Portal for programming. Ensure proper ventilation and mounting in a control cabinet.
