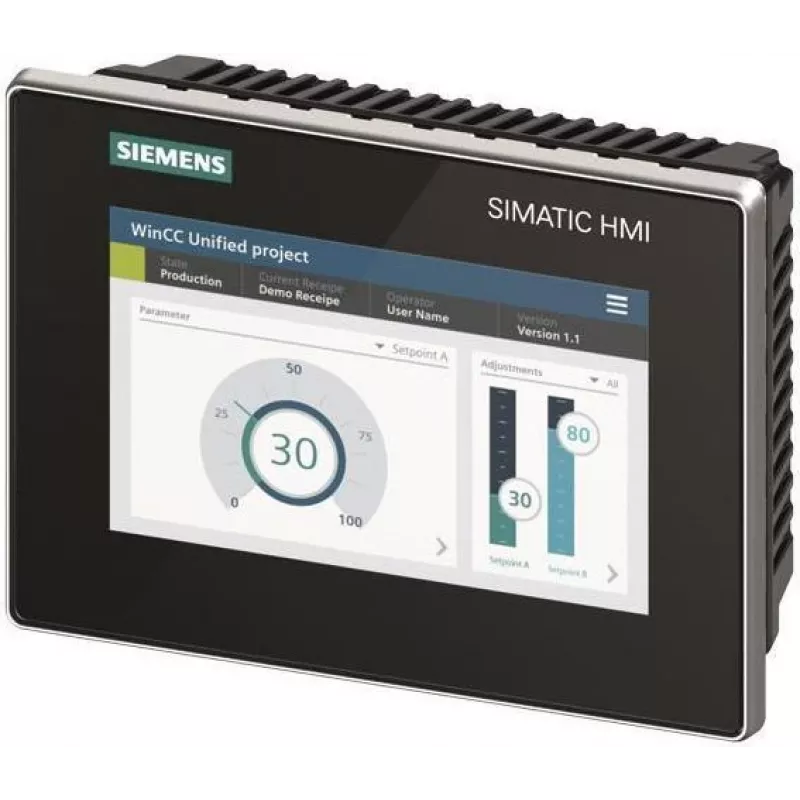

Siemens SIMATIC HMI MTP700 Unified Comfort Panel 7 inch Touch Display 6AV2128-3GB06-0AX1

The Siemens SIMATIC HMI MTP700 Unified Comfort Panel is a high-performance human-machine interface designed for modern industrial automation. Featuring a 7-inch widescreen TFT LCD with LED backlight and capacitive multi-touch technology, this panel offers intuitive operation with 16 million colors and a resolution of 1024 x 600 pixels. Powered by an ARM Cortex-A53 quad-core processor and 2 GB RAM, it provides fast and reliable performance for demanding applications.

Advantages

This HMI panel delivers exceptional clarity and responsiveness, enabling efficient machine control and monitoring. Its robust design includes IP65 front protection, making it suitable for harsh industrial environments. With 12 GB flash memory and dual Ethernet ports for PROFINET, it ensures seamless integration into existing networks.

Suitable for

• Industrial automation and control systems
• Machine building and plant engineering
• Process visualization and monitoring
• Panel mounting applications requiring high durability

Key specifications

• Display: 7-inch widescreen TFT LCD with LED backlight
• Resolution: 1024 x 600 pixels
• Touch: Capacitive multi-touch
• Processor: ARM Cortex-A53 quad-core
• RAM: 2 GB
• User memory: 12 GB Flash
• Operating system: Siemens Unified Comfort OS
• Ethernet: 2x RJ45 (PROFINET/Industrial Ethernet)
• USB: 2x USB 3.0
• Supply voltage: 24 V DC
• Protection: IP65 front / IP20 rear
• Mounting: Panel mounting
• Configuration: TIA Portal V16 or higher (WinCC Unified)

Recommendations

For optimal performance, use Siemens TIA Portal V16 or higher for configuration. Ensure proper panel mounting and 24 V DC power supply. This device is ideal for upgrading existing automation systems or building new HMI applications.
