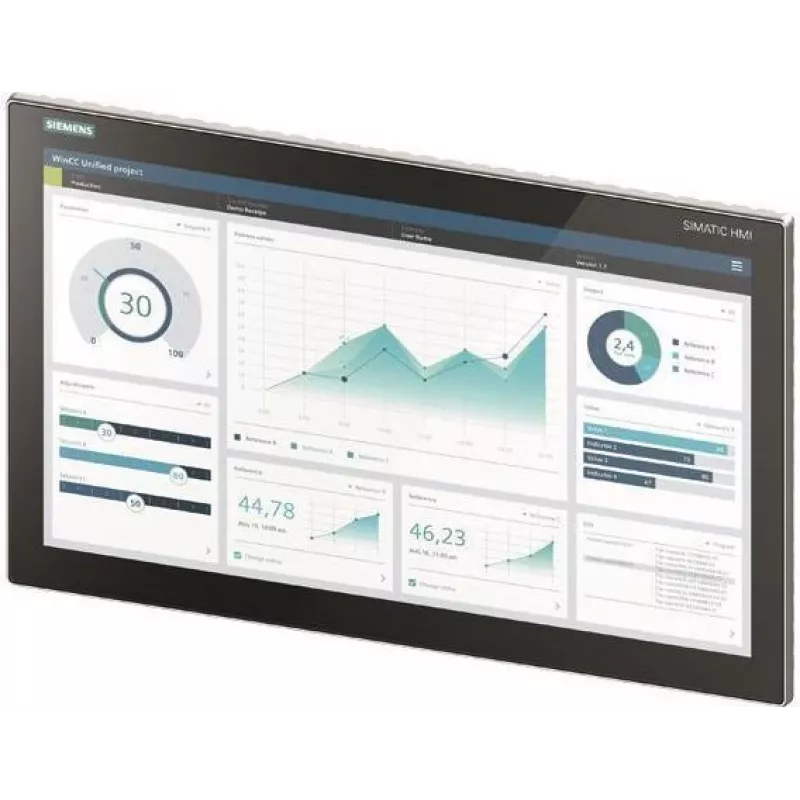

Siemens SIMATIC HMI MTP2200 Unified Comfort 22-inch Touch Panel, High-Performance, 6AV2128-3XB06-0AX1

The Siemens SIMATIC HMI MTP2200 Unified Comfort is a high-performance operator panel designed for demanding industrial automation applications. With a 22-inch widescreen TFT display featuring capacitive multi-touch technology, it provides intuitive and efficient machine operation. Powered by a quad-core ARM Cortex-A53 processor and 4 GB RAM, it ensures smooth performance even with complex visualizations. The panel runs on the SIMATIC Industrial OS (Linux-based) and is fully compatible with WinCC Unified in the TIA Portal engineering framework.

Advantages

Exceptional display quality with Full HD resolution (1920 x 1080 pixels) and 16 million colors for clear, detailed visualizations. Robust design with IP65 front protection, suitable for harsh industrial environments. High-performance hardware enables fast data processing and seamless multitasking. Integrated PROFINET interface via two Gigabit Ethernet ports ensures reliable communication. Long LED backlight lifetime of approximately 80,000 hours reduces maintenance needs.

Suitable for

• Industrial automation and process control
• Machine building and plant engineering
• HMI applications requiring high-performance visualization
• Integration into TIA Portal environments

Key specifications

• Display: 22-inch TFT widescreen, capacitive multi-touch, 1920x1080 pixels
• Processor: ARM Cortex-A53 quad-core
• RAM: 4 GB
• User memory: 16 GB eMMC
• Operating system: SIMATIC Industrial OS (Linux-based)
• Ethernet: 2 x RJ45 Gigabit Ethernet (PROFINET)
• USB: 2 x USB 3.0 Type A
• Power supply: 24 V DC (19.2 V to 28.8 V)
• Protection rating: IP65 front, IP20 rear
• Operating temperature: 0 °C to 50 °C
• Brightness: 300 cd/m²
• Backlight: LED, lifetime approx. 80,000 h at 25°C

Recommendations

For optimal performance, use the panel with the latest version of WinCC Unified in TIA Portal. Ensure proper panel mounting and adequate ventilation to maintain operating temperature range. The integrated real-time clock is buffered; replace the buffer battery as recommended in the manual.
