Siemens 6SL3244-0BB13-1FA0 SINAMICS G120 Control Unit with PROFINET and Safety Integrated

Equipped with PROFINET IO and integrated safety functions including STO, SS1, SBC, SLS, SSM, and SDI, this Siemens control unit delivers high-performance motion control for SINAMICS G120 power modules.

Overview

The Siemens 6SL3244-0BB13-1FA0 is a control unit designed for the SINAMICS G120 drive system. It provides advanced control and communication capabilities, making it suitable for a wide range of industrial applications. The unit supports PROFINET IO for seamless integration into automation networks and features an integrated web server for easy commissioning and diagnostics.

What stands out

• Integrated safety functions (STO, SS1, SBC, SLS, SSM, SDI) for enhanced machine safety.
• PROFINET IO communication for fast and reliable data exchange.

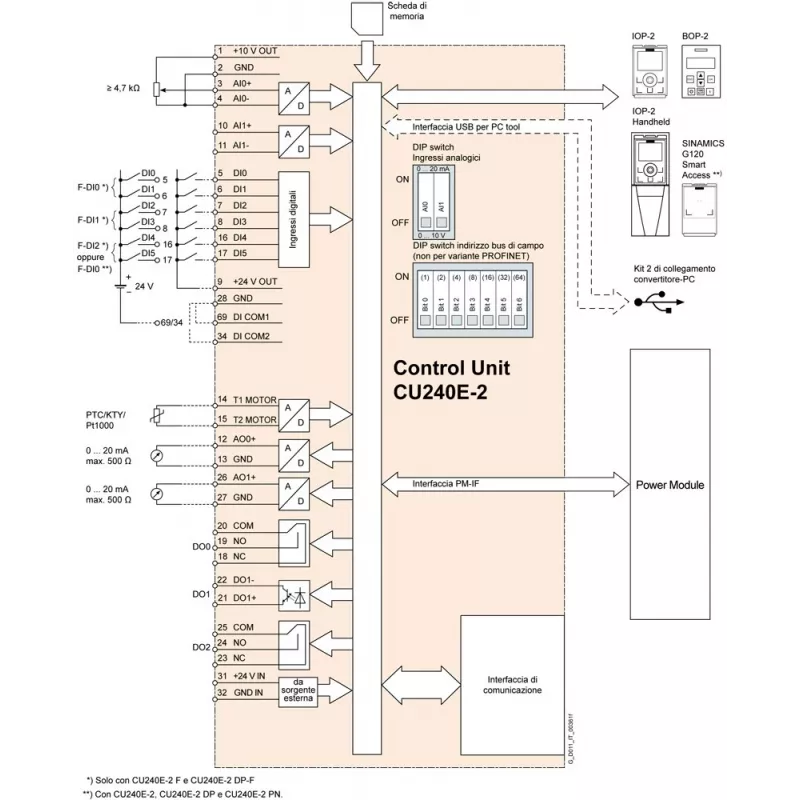

• Onboard digital and analog I/O: 6 DI, 3 relay DO, 2 AI, 2 AO.
• Encoder interface for HTL/TTL/SSI incremental encoders.
• SD card slot for parameter backup and firmware updates.
• USB interface for commissioning and diagnostics.
• Integrated PID controller, basic positioner, and brake control.

Technical details

• Product Type: Control Unit for SINAMICS G120
• Series: SINAMICS G120
• Communication Interface: PROFINET IO
• Safety Integrated Functions: Yes (STO, SS1, SBC, SLS, SSM, SDI)
• Digital Inputs (DI): 6 (freely parameterizable)
• Digital Outputs (DO): 3 (relay outputs)
• Analog Inputs (AI): 2 (0-10V, 0/4-20mA)
• Analog Outputs (AO): 2 (0-10V, 0/4-20mA)
• Encoder Interface: Yes (for incremental encoders HTL/TTL/SSI)
• Memory Card Slot: SD card slot
• Supply Voltage: 24 V DC
• Protection Class: IP20
• Operating Temperature: 0 to 50 °C
• Mounting Type: Wall mounting / DIN rail mounting
• Integrated Web Server: Yes
• USB Interface: Yes (for commissioning and diagnostics)
• Integrated Functions: PID controller, Basic positioner, Brake control
• Compatibility: SINAMICS G120 Power Modules
• Firmware Version: V4.7 SP9 or higher
• Certifications: CE, UL, cUL, RCM, KC

Our verdict

A versatile and safety-focused control unit that brings advanced motion control and connectivity to SINAMICS G120 drives, ideal for demanding industrial environments.
