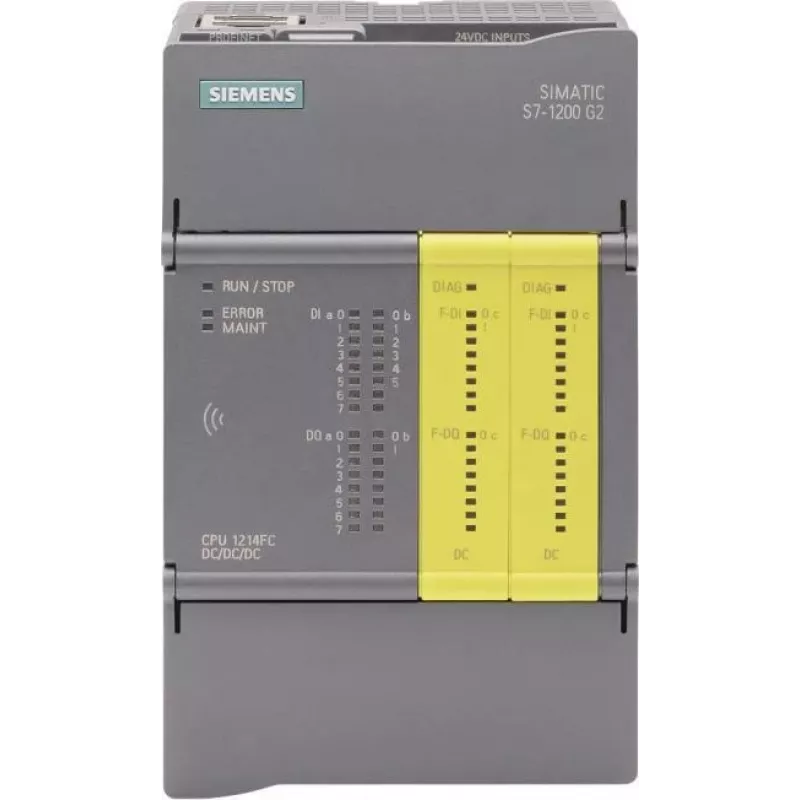

Siemens 6ES7214-1AF50-0XB0 SIMATIC S7-1200 G2 CPU 1214FC Fail-safe Compact CPU DC/DC/DC

The Siemens 6ES7214-1AF50-0XB0 is a fail-safe compact CPU from the SIMATIC S7-1200 series, specifically the CPU 1214FC. It operates on a 24V DC power supply and features integrated digital and analog I/Os, making it ideal for safety-related automation applications. With PROFINET interfaces and PROFIsafe support, this CPU ensures reliable communication and safety functions in industrial environments.

Advantages

Integrated fail-safe functionality reduces the need for external safety modules, saving space and cost. The compact design with onboard I/Os allows for flexible expansion via signal boards and modules. The integrated web server enables remote diagnostics and monitoring, enhancing system uptime.

Suitable for

• Safety-critical automation tasks in manufacturing, process control, and machine building
• Applications requiring fail-safe control with PROFIsafe communication
• Distributed automation systems with PROFINET networking

Key specifications

• CPU Type: Fail-safe Compact CPU
• Series: SIMATIC S7-1200
• CPU Model: 1214FC
• Power Supply: 24V DC (20.4 - 28.8 V DC)
• Onboard Digital Inputs: 14 x 24V DC
• Onboard Digital Outputs: 10 x 24V DC Transistor
• Onboard Analog Inputs: 2 x 0-10V DC
• Program/Data Memory: 125 KB
• Communication Interface: 2 x PROFINET (RJ45)
• Safety Functions: Integrated Fail-safe (PROFIsafe)
• Expandability: Up to 3 Communication Modules, 1 Signal Board, 8 Signal Modules
• Programming Languages: LAD, FBD, SCL
• Operating Temperature: -20 to +60 °C (horizontal mounting)
• Protection Rating: IP20
• Integrated Web Server: Yes
• Real-time Clock: Yes (with backup)
• Max. Number of PIDs: 16

Recommendations

For optimal performance, use with Siemens SIMATIC S7-1200 signal modules and communication modules. Ensure proper grounding and shielding according to Siemens guidelines. This CPU is designed for use in industrial environments and should be installed in a suitable control cabinet.
