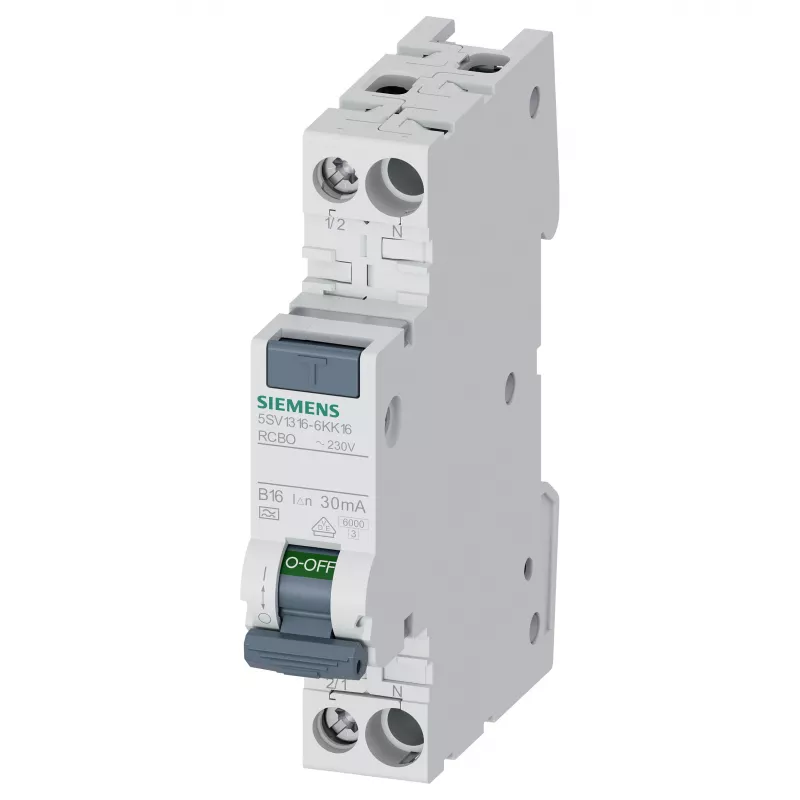

Siemens 5SV13166KK16 RCBO 2-Pole 16 A 30 mA Type C 6 kA

The Siemens 5SV13166KK16 is a combined residual current circuit breaker and miniature circuit breaker (RCBO) designed for reliable protection against overcurrents and residual currents. This 2-pole device is ideal for use in residential and commercial electrical installations, offering compact design and easy DIN rail mounting.

Advantages

Combines overcurrent and residual current protection in a single device, saving space and installation time. High breaking capacity of 6 kA ensures safety in case of short circuits. Type A residual current detection provides protection for pulsating DC and AC fault currents.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Protection of final circuits in TN and TT systems

Key specifications

• Number of Poles: 2-pole
• Rated Current: 16 A
• Rated Residual Current: 30 mA
• Tripping Characteristic: C
• Residual Current Type: Type A
• Rated Voltage (AC): 230 V
• Rated Switching Capacity (Icn): 6 kA
• Frequency: 50 Hz
• Mounting Type: DIN rail
• Module Width: 2 modules
• Degree of Protection (Terminals): IP20
• Connection Type: Screw terminals
• Operating Temperature Range: -25 to +45 °C

Recommendations

Ensure compatibility with your distribution board and verify that the rated current and residual current settings meet the requirements of your installation. Professional installation by a qualified electrician is recommended.
