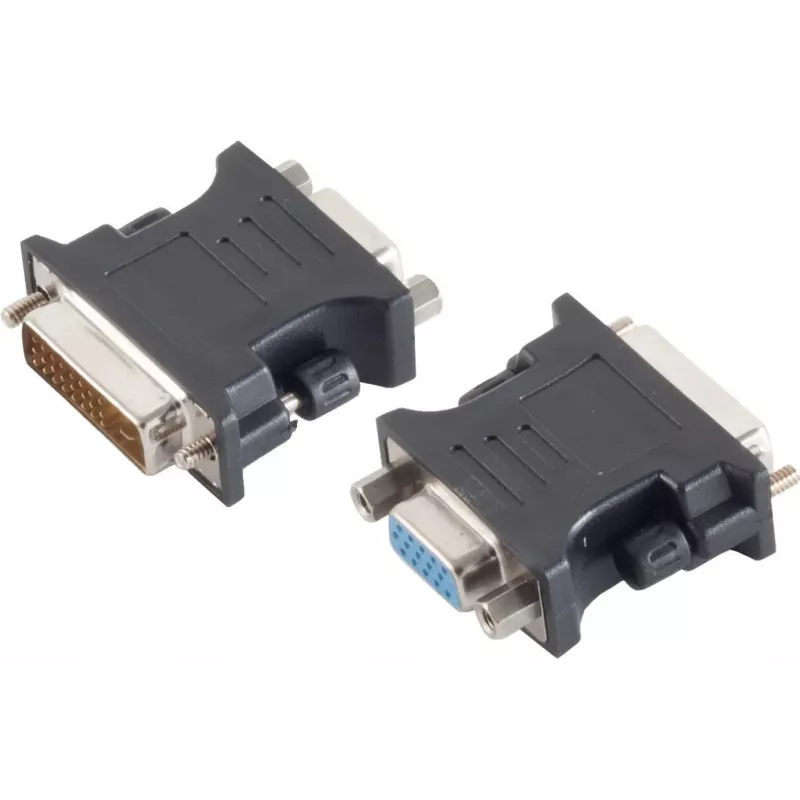

DVI-D male to VGA female Adapter S/CONN SI-77416-2

The S/CONN DVI-D male to VGA female Adapter SI-77416-2 provides a straightforward physical connection between a DVI-D output and a VGA (D-Sub) display. Designed for situations where a device with a digital-only DVI output must be connected to an analog VGA monitor or projector, this compact adapter has gold-plated contacts and a black finish for improved contact reliability and reduced corrosion.

Advantages

This adapter offers a compact and easy-to-install solution for adapting signal connectors without the need for additional cables or external power. Gold-plated contacts improve durability and help maintain signal integrity at the contact points. Its small form factor makes it suitable for tight installation spaces and straightforward transport between workstations or meeting rooms.

Suitable for

• Connecting a DVI-D equipped graphics card or laptop docking station to an older VGA monitor
• Using a projector with VGA input when the source device only has a DVI-D output
• Temporary workstation setups, presentations, and AV switching where cross-compatibility is required

Key specifications

• Connector A: DVI-D male (digital only)
• Connector B: VGA (D-Sub) female (analog)
• Contact plating: gold-plated contacts for improved corrosion resistance
• Colour: black
• Form factor: compact inline adapter

How to use

Align the DVI-D male connector with the DVI-D port on the source device and insert it gently until secure. Connect a standard VGA cable to the VGA (D-Sub) female port of the adapter and then to the VGA input of the display or projector. After connections are made, power on the source and display devices and select the appropriate input on the monitor or projector. Note that this adapter only provides a physical connection between a digital DVI-D output and an analog VGA input; additional signal conversion may be required in some setups.

Recommendations

Use short, high-quality VGA cables to reduce signal degradation and ensure secure seating of all connectors. Verify that your source device supports analog signalling or use an active converter if a digital-to-analog conversion is required. Keep the adapter and connectors free of dust and moisture to prolong contact life.
