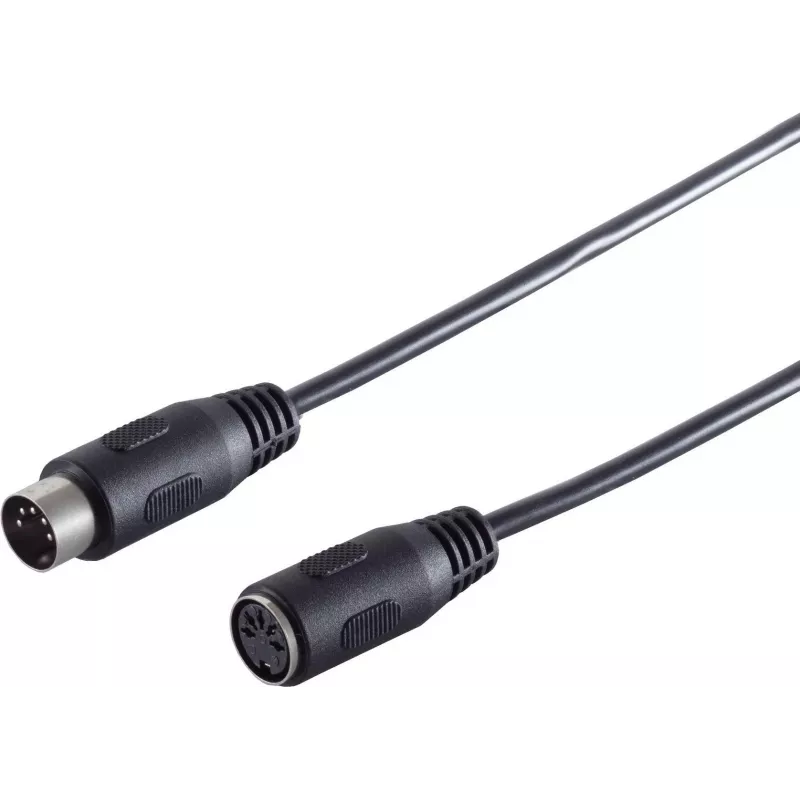

ShiverPeaks Diodenkabel-DIN Extension 5-pin model 10105 – 5-pin DIN extension cable

The ShiverPeaks Diodenkabel-DIN Extension 5-pin model 10105 is a 5.0 m extension cable designed to extend signals between devices that use a 5-pin DIN connector. It maintains the original connector format and wiring while providing additional length for flexible placement of audio, MIDI, or control equipment. The cable is intended for situations where a direct connection is needed without modifying existing plugs or sockets.

Advantages

This 5-pin DIN extension cable offers a simple and reliable way to increase reach between compatible devices. The preserved connector configuration ensures straightforward plug-and-play compatibility with equipment using standard 5-pin DIN interfaces. With a length of 5.0 m, the cable allows greater freedom in routing and positioning devices in studio, stage, or domestic installations while keeping original connectors intact.

Suitable for

• Extending audio connections that use a 5-pin DIN interface
• Extending MIDI device connections in home studios or performance setups
• Extending control signal lines for vintage or specialized equipment using 5-pin DIN

Key specifications

• Cable type: 5-pin DIN extension cable
• Length: 5.0 m
• Connector configuration: 5-pin DIN plug to 5-pin DIN socket
• Intended signals: audio, MIDI, and control signals compatible with 5-pin DIN wiring
• Usage environment: studio, stage, home audio installations

How to use

Insert the 5-pin DIN plug into the source device's DIN output and connect the 5-pin DIN socket to the target device's DIN input. Ensure connectors are aligned and seated fully to avoid intermittent contact. Position the cable to avoid sharp bends, kinks, and contact with heat sources. For optimal signal transmission, avoid running the cable parallel to high-voltage power lines or sources of strong electromagnetic interference.

Recommendations

Use the cable for temporary or permanent extensions where maintaining the original 5-pin DIN connections is required. Inspect connectors periodically for secure fit and signs of wear; replace the cable if shielding or connector contacts show damage. For installations requiring longer distances or balanced/bus-specific wiring, verify signal compatibility before use.
