Shelly Wave 2PM EU LR Z-Wave Smart Light Switch 2-Channel Power Metering

The Shelly Wave 2PM EU LR is a compact, in-wall Z-Wave smart light switch designed for reliable and energy-efficient control of lighting and small appliances. With two independent channels and per-channel power metering, it provides real-time energy monitoring and precise control. This device is part of the Shelly Wave series, featuring the latest Z-Wave Plus v2 technology with S800 chip for extended range and robust mesh networking.

Advantages

Easy retrofit installation behind existing switches or outlets, no neutral wire required in most setups. Supports both momentary and toggle switches, and offers over-the-air firmware updates for future-proofing. The built-in overload and overheating protection ensures safe operation.

Suitable for

• Smart home automation systems using Z-Wave hubs
• Controlling lighting circuits, fans, or small appliances
• Energy monitoring and management in residential or commercial spaces

Key specifications

• Connectivity: Z-Wave Plus v2 (800 Series), EU frequency 868.4/869.85 MHz
• Channels: 2 independent, max 10A per channel (resistive), total 16A
• Power metering: Yes, per channel
• Operating voltage: 110-240V AC

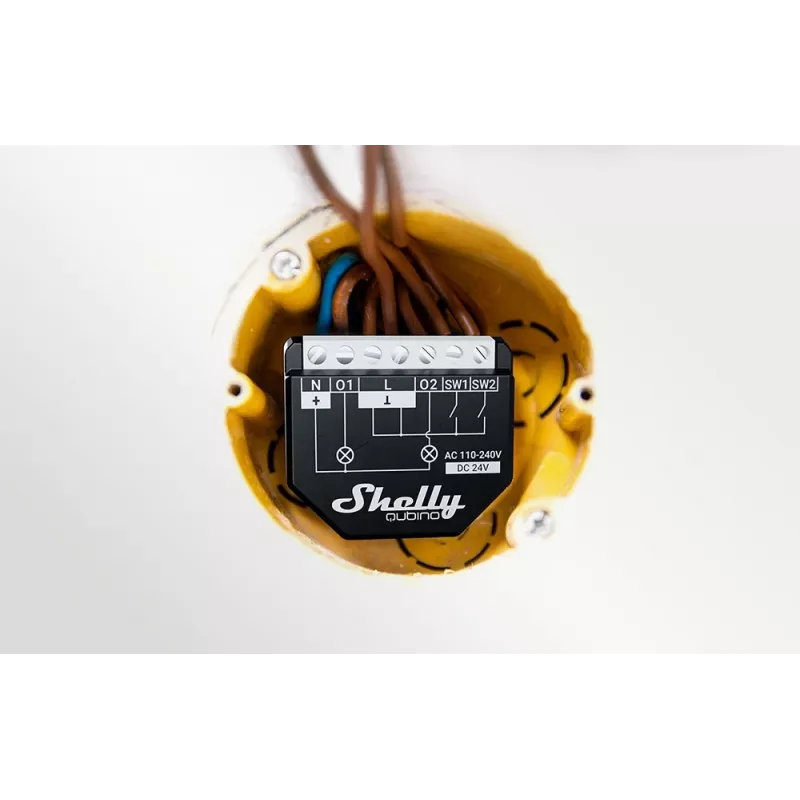

• Installation: In-wall, behind switch/outlet
• Security: S2 Authenticated
• Operating temperature: -20°C to 40°C
• Power consumption: <0.3W

Recommendations

For best performance, use with a Z-Wave hub that supports S2 security and OTA firmware updates. Ensure the load does not exceed the maximum ratings. Suitable for EU markets.
