Sector antenna Ubiquiti AM-V2G-TI 17 dBi RP-SMA 2.3-2.6 GHz

The Ubiquiti AM-V2G-TI is an advanced carrier-class PtMP sector antenna designed for 2.3–2.6 GHz deployments. With a maximum gain of 17 dBi and an RP-SMA male connector, this white sector antenna offers adjustable beamwidth options and an integrated mount for Rocket radios to simplify installation and protect equipment in outdoor environments.

Advantages

The Titanium Sector provides improved RF isolation to reduce interference in co‑location sites and supports configurable beamwidths (60°, 90°, or 120°) so a single antenna model can cover multiple deployment scenarios. It is engineered to deliver higher PtMP throughput—approximately a 20% increase in typical PtMP networks—and offers up to 90% performance improvement in congested co‑location environments. The integrated, tool‑free Rocket mount and protective shroud simplify mounting and weather protection.

Suitable for

• Point-to-multipoint (PtMP) wireless broadband networks

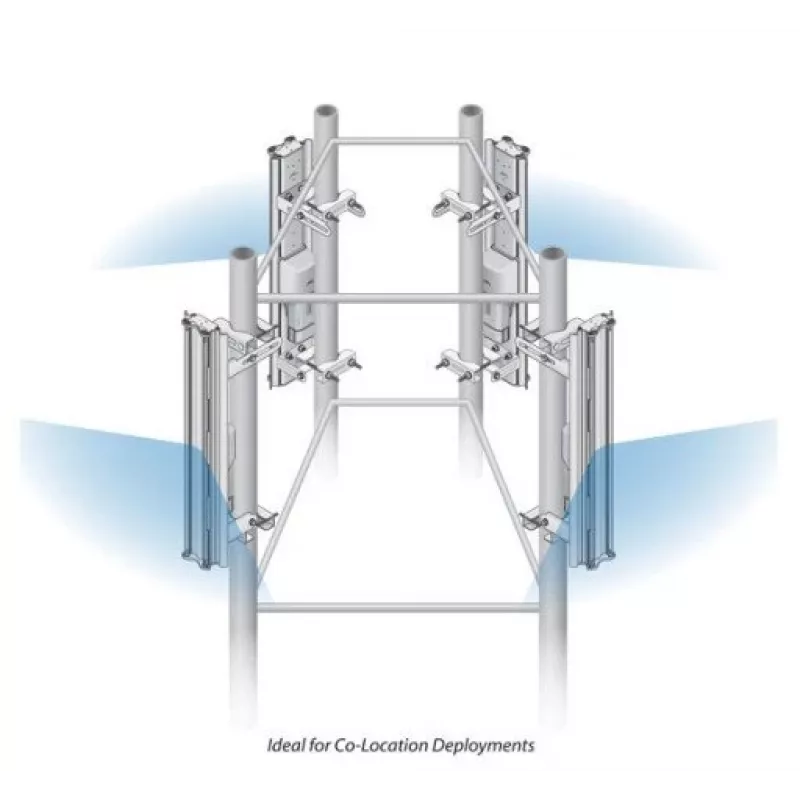

• Co‑location installations where multiple radios share a tower
• Outdoor sector coverage for 2.3–2.6 GHz service
• Deployments requiring adjustable horizontal beamwidth (60°, 90°, 120°)

Key specifications

• Frequency band: 2.3 - 2.6 GHz
• Maximum antenna gain: 17 dBi
• Horizontal beamwidth (configurable): 60°, 90°, 120°
• Connector: RP-SMA (male)
• Product colour: White
• Weight: 6.4 kg
• Manufacturer model: AM-V2G-Ti

How to use

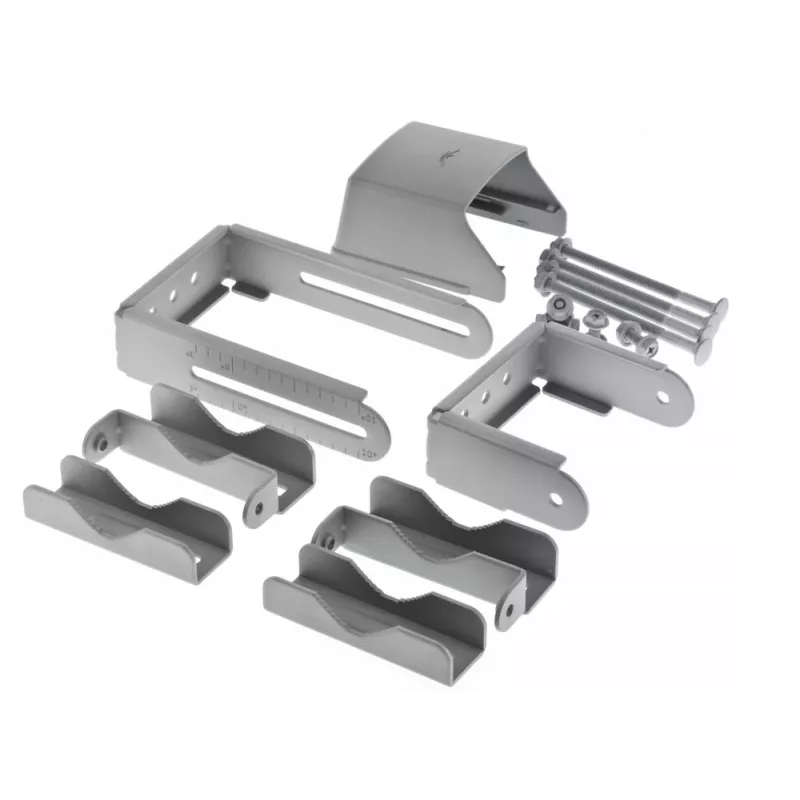

Choose the appropriate beamwidth configuration (60°, 90° or 120°) for the coverage sector required, mount the Titanium Sector on the tower or pole using standard mounting hardware, and install the Rocket radio into the integrated tool‑free Rocket mount. Connect the Rocket to the antenna using the RP-SMA interface and complete cabling to your network equipment. Aim and align the sector antenna according to your network design for optimal coverage and throughput.

Recommendations

For co‑location sites, configure beamwidth and antenna orientation to maximize RF isolation from neighboring sectors. Use compatible Rocket M Titanium radios for best-matched performance and follow local regulations for outdoor antenna deployment and grounding.
