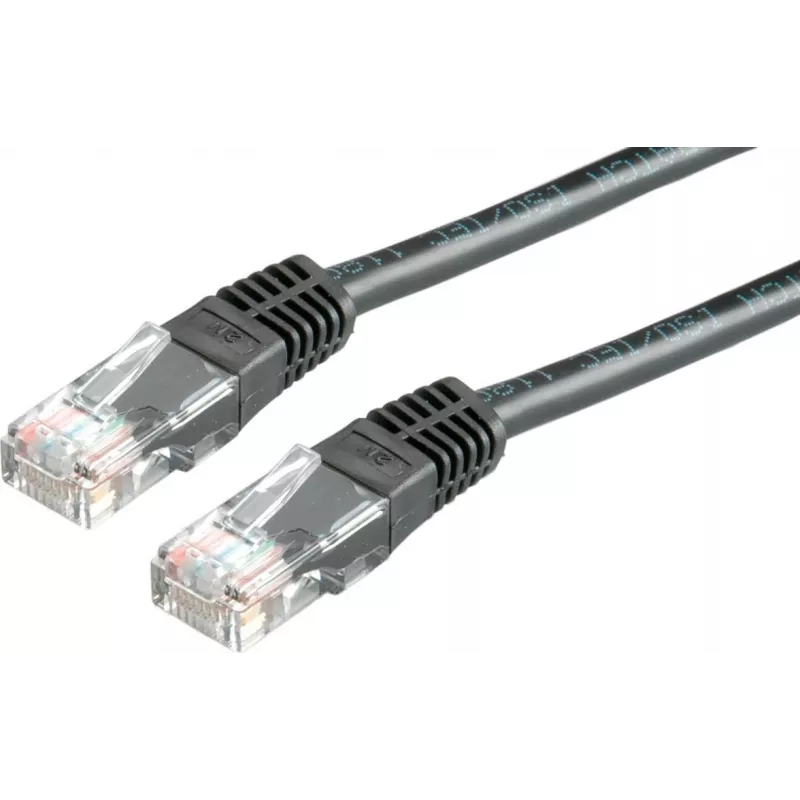

SECOMP STANDARD UTP Patch Cable Cat.6 (Class E), Black, 5 m (S1765)

Up to 250 MHz bandwidth and 1 Gbps data transfer rate make this SECOMP STANDARD UTP patch cable a reliable backbone for high-speed Ethernet connections. The 5-meter black Cat.6 cable delivers consistent performance for demanding network environments, from office workstations to home media setups.

Overview

Engineered to meet Cat.6 (Class E) specifications, this unshielded twisted pair (UTP) cable ensures minimal crosstalk and signal degradation over its full length. The stranded copper conductors (AWG 26/7) provide flexibility without compromising conductivity, while the snagless boot design protects the RJ45 connectors during installation and repeated plugging.

What stands out

• Supports Power over Ethernet (PoE/PoE+) for powering devices like IP cameras and access points.
• LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic emissions in case of fire.
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 for assured interoperability.
• Wired to TIA/EIA 568B standard, ensuring compatibility with most network equipment.
• Flammability rating IEC 60332-1 for added fire resistance.

Technical details

• Cable type: UTP (Unshielded Twisted Pair)
• Category: Cat.6 (Class E)
• Length: 5 m
• Colour: Black
• Connectors: RJ45 male to RJ45 male
• Shielding: Unshielded
• Wiring standard: TIA/EIA 568B
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Conductor material: Stranded copper
• Conductor gauge: AWG 26/7
• Boot type: Snagless
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1 Gbps (Gigabit Ethernet)
• PoE support: Yes (PoE/PoE+ compatible)
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flammability rating: IEC 60332-1

Our verdict

A dependable Cat.6 patch cable that balances performance, safety, and durability—ideal for both professional and home networks requiring stable gigabit connectivity.
