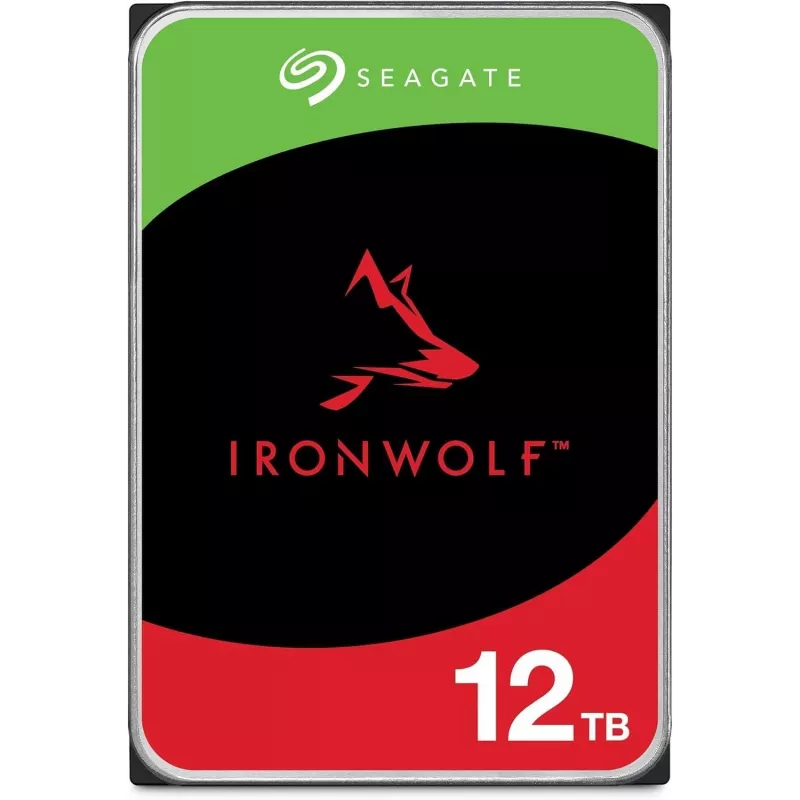

Seagate ST12000VNZ008 12TB SATA 6Gb/s 3.5-inch 7200RPM 256MB Cache CMR Hard Drive

The Seagate ST12000VNZ008 is a high-capacity 12TB hard drive designed for surveillance and enterprise storage applications. With a SATA 6Gb/s interface, 7200 RPM spindle speed, and 256MB cache, it delivers reliable performance for continuous recording and data-intensive workloads. Built with CMR technology and rotational vibration sensors, this drive ensures consistent operation in multi-drive environments.

Advantages

High 12TB capacity for extensive storage needs; 7200 RPM speed for fast data access; 256MB cache for improved performance; CMR recording technology for reliable data integrity; Rotational vibration sensors for stable operation in multi-bay systems; Low power consumption (7.8W operating) for energy efficiency.

Suitable for

• Network video recorders (NVRs) and digital video recorders (DVRs)
• Surveillance systems requiring high capacity and reliability
• Enterprise storage arrays and servers
• Backup and archival solutions

Key specifications

• Capacity: 12 TB
• Interface: SATA 6Gb/s
• Form Factor: 3.5-inch
• Spindle Speed: 7200 RPM
• Cache: 256 MB
• Workload Rate Limit: 180 TB/year
• MTBF: 1,000,000 hours
• Recording Technology: CMR
• Max Sustained Data Transfer Rate: 210 MB/s
• Power Consumption (Operating): 7.8 W
• Power Consumption (Idle): 5.3 W
• Operating Temperature: 5°C to 70°C
• Non-operating Temperature: -40°C to 70°C
• Shock Resistance (Operating): 70 G (2ms)
• Shock Resistance (Non-operating): 300 G (1ms)
• Noise Level (Idle): 28 dB
• Noise Level (Seek): 32 dB

Recommendations

For optimal performance in surveillance systems, pair this drive with a compatible NVR that supports SATA 6Gb/s and 3.5-inch drives. Ensure adequate cooling in multi-drive enclosures to maintain operating temperature within specified range.
