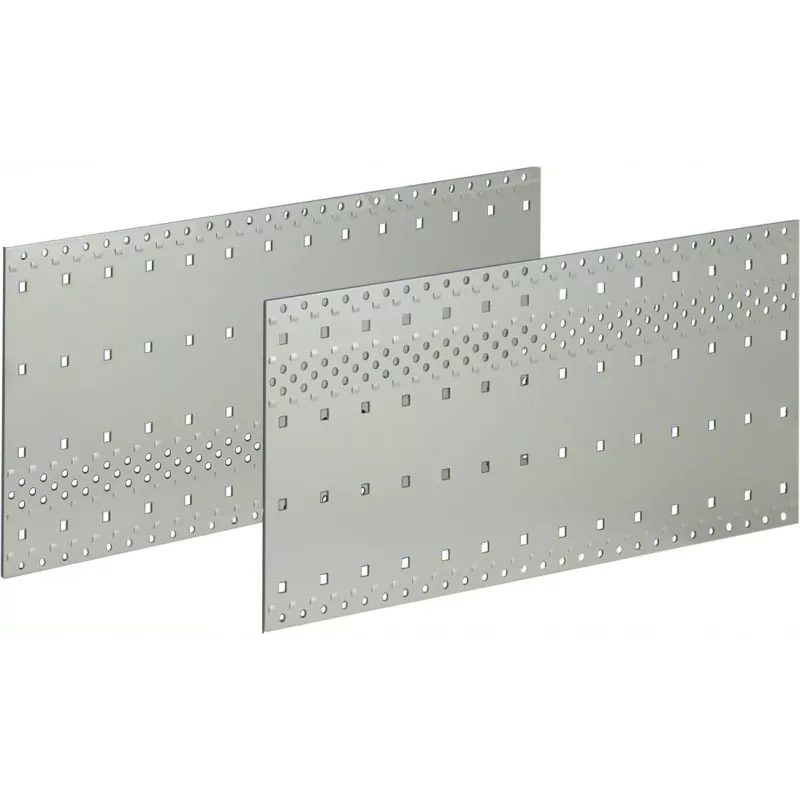

SCHROFF Type F Side Panel, 4U, 175 mm Depth, Aluminum 34560285

In modular subrack systems, open side faces expose sensitive electronics to dust, accidental contact, and electromagnetic interference. This SCHROFF Type F side panel closes a 4U, 175 mm deep EuropacPRO subrack with a solid, anodized aluminum plate, restoring mechanical integrity and a clean, professional appearance.

Who is it for

System integrators and enclosure builders assembling 19-inch subracks for industrial control, test and measurement, or telecommunications. If you need to enclose a 4U subrack with 175 mm depth and prefer a screw-on, non-ventilated side panel, this part fits directly into the nVent SCHROFF EuropacPRO ecosystem.

Main features

• Solid aluminum construction, 2.5 mm thick, with natural anodized finish for corrosion resistance and electrical conductivity.
• Pre-drilled mounting holes match the EuropacPRO subrack side profile; screws on without modification.
• 4U height (4HE) and 175 mm depth, compliant with IEC 60297-3-101 mechanical standards.
• Non-ventilated design for applications where airflow is managed elsewhere or dust ingress must be minimized.
• Sold individually; order two panels to fully enclose one subrack.

Specifications

• Brand: SCHROFF
• Model: 34560285
• MPN: 34560285
• EAN: 4036088073434
• Product type: Side panel
• Series: Type F
• Rack unit height: 4U (4HE)
• Compatible subrack depth: 175 mm
• Material: Aluminum
• Finish: Anodized
• Color: Natural aluminum
• Panel thickness: 2.5 mm
• Mounting type: Screw-on
• Ventilation: Solid (non-ventilated)
• Quantity per pack: 1
• RoHS compliance: Yes
• Standard compliance: IEC 60297-3-101

Tips

For optimal fit, verify your subrack's side profile matches the EuropacPRO series. Use all pre-drilled holes to ensure even load distribution and avoid warping. If your system requires airflow, consider a ventilated side panel variant or adjust fan placement accordingly.
