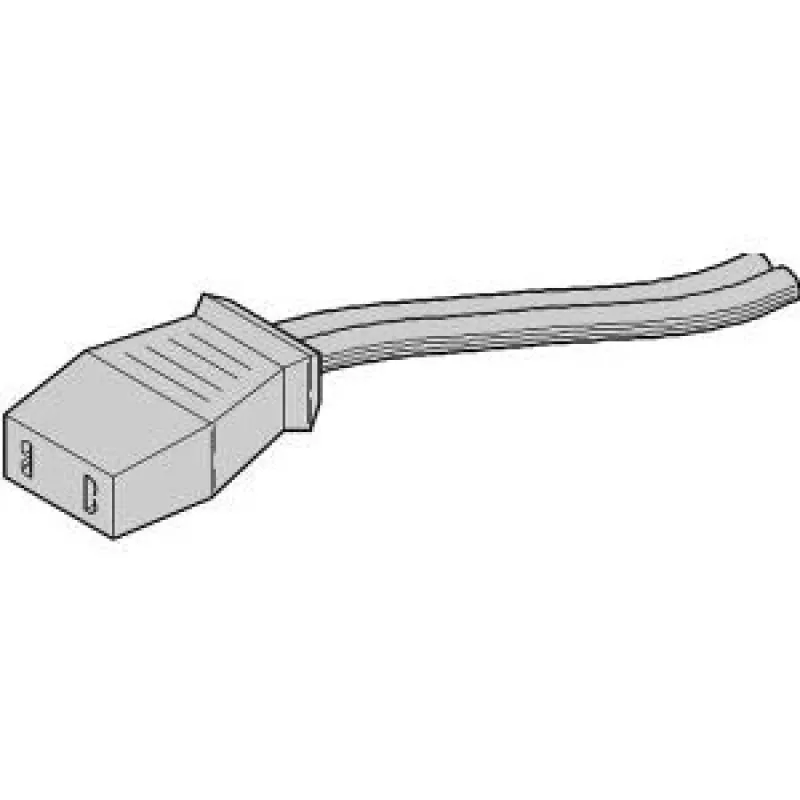

SCHROFF Fan Power Connection Cable for Pagoda Fan Units, 0.5 m, 3-pin to Open End, Black

In server rooms and industrial enclosures, cooling fans are essential for maintaining optimal operating temperatures. This SCHROFF connection cable provides a reliable link between a Pagoda fan unit and the power supply, ensuring stable operation in EuropacPRO, Interscale M, or RatiopacPRO chassis. The cable features a 3-pin fan connector on one end and open wires on the other, allowing flexible integration into existing wiring systems.

Key specifications

• Length: 0.5 m
• Connector 1: 3-pin fan connector (Molex-style)
• Connector 2: Open end (bare wires)
• Conductor cross-section: 0.5 mm²
• Voltage rating: up to 24 V DC
• Current rating: up to 3 A
• Jacket material: PVC
• Colour: Black

Why choose it

Engineered for compatibility with SCHROFF fan units, this cable ensures a secure and durable connection. Its PVC insulation provides protection against environmental factors, while the 0.5 mm² conductors handle the required current with minimal voltage drop. The open end allows for custom termination, making it adaptable to various power distribution setups.

Ideal use cases

• Connecting fans in 19-inch rack enclosures
• Replacing worn or damaged fan cables
• Custom wiring in industrial control cabinets
• Integrating fans into modular electronic systems

Good to know

The cable is RoHS compliant and operates within a temperature range of -20°C to +70°C. It is intended for internal chassis wiring and should be installed by qualified personnel. The 3-pin connector is a standard type for many DC fans, but always verify pinout compatibility with your specific fan model.
