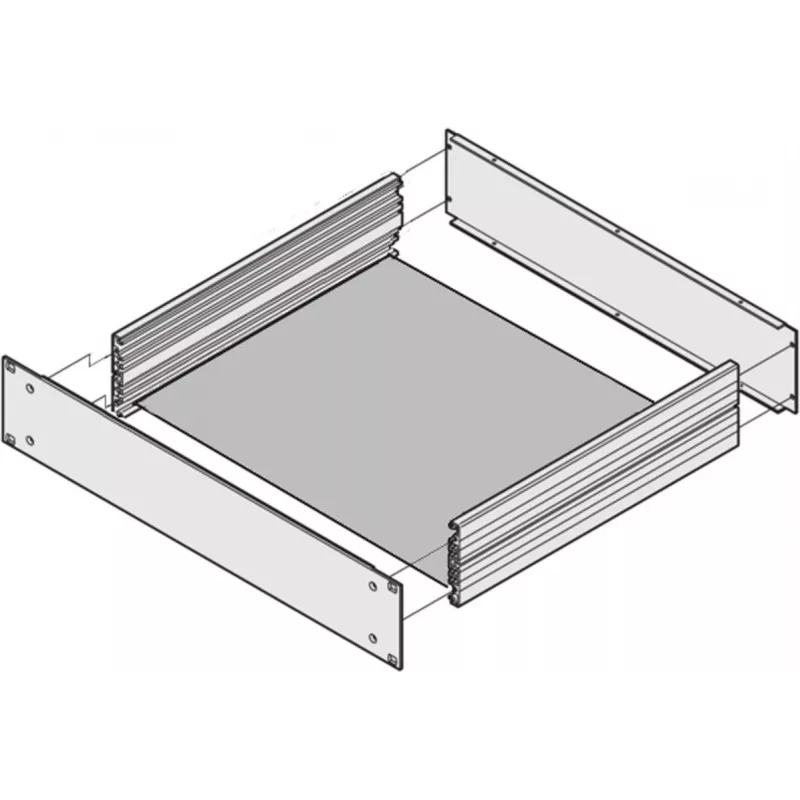

SCHROFF Chassis Plate 390D for EuropacPRO Subracks, 3U, 84 HP, Steel, Galvanized, 390 mm Deep 20860111

Mounting internal components in a Schroff EuropacPRO subrack can be challenging without a stable, pre-drilled platform. The SCHROFF Chassis Plate 390D solves this by providing a robust steel base for PCBs, power supplies, and other electronic modules. Its 390 mm depth matches standard subrack dimensions, ensuring a precise fit and reliable support.

Who is it for

This chassis plate is ideal for system integrators, electronics engineers, and OEMs building 19-inch rack systems with EuropacPRO subracks. It suits applications in industrial control, telecommunications, test and measurement, and any environment requiring secure internal component mounting.

Main features

• Compatible with Schroff EuropacPRO subracks, 3U height and 84 HP width
• Made from galvanized steel for durability and corrosion resistance
• 390 mm depth matches subrack chassis depth for seamless integration
• Pre-drilled mounting holes for easy attachment of PCBs, power supplies, and other components
• Complies with IEC 60297-3-101 standards for subrack mechanics
• RoHS compliant, ensuring environmental safety

Specifications

• Brand: SCHROFF
• Model: 20860111
• MPN: 20860111
• EAN: 4036088027512
• Product Type: Chassis Plate
• Compatibility: EuropacPRO Subracks
• Subrack Height: 3U
• Subrack Width: 84 HP
• Material: Steel
• Surface Finish: Galvanized
• Depth: 390 mm
• Width: 426.7 mm
• Thickness: 1.5 mm
• Mounting Type: Internal component mounting
• Colour: Metallic
• RoHS Compliant: Yes

Tips

Ensure your subrack is a EuropacPRO model with 3U height and 84 HP width before ordering. The galvanized finish provides long-term protection against rust, making it suitable for harsh environments. Use the pre-drilled holes as a template for component placement to save assembly time.
