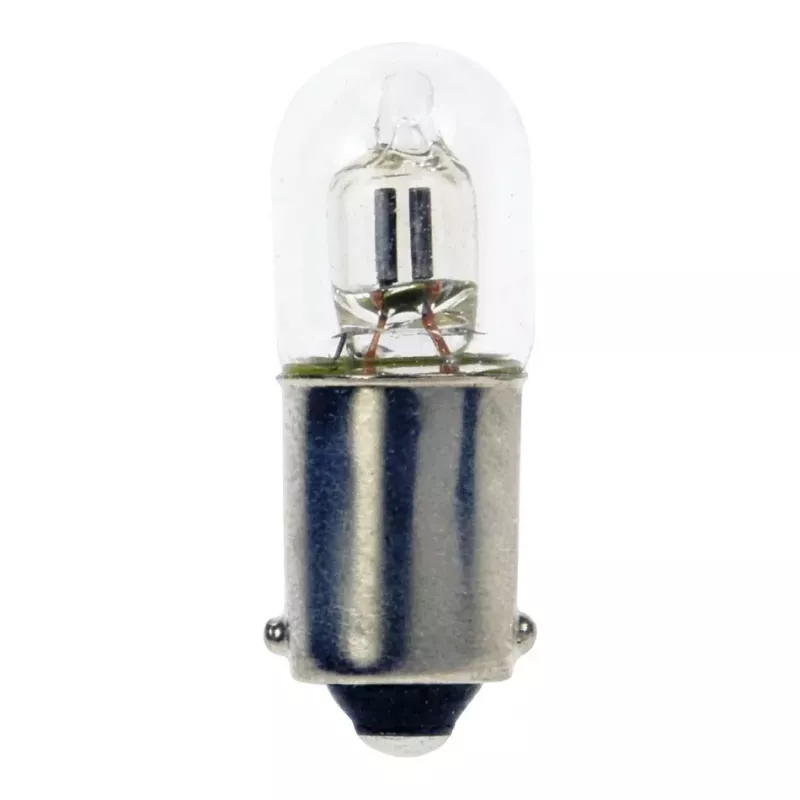

Scharnberger 28031 Neon Indicator Lamp 10x28 mm BA9S 230V ZG233

The Scharnberger 28031 is a high-quality neon indicator lamp designed for reliable signal and indicator applications. With a compact 10x28 mm size and BA9S miniature bayonet base, this lamp operates at 230V AC and consumes only 0.5W, making it an energy-efficient choice for control panels, switchboards, and electronic devices.

Advantages

Low power consumption of just 0.5W ensures minimal energy usage and reduced heat generation. The built-in series resistor allows direct connection to 230V mains without additional components. Long service life of up to 10,000 hours reduces maintenance frequency. Robust construction with a glass bulb and nickel-plated brass base provides durability in demanding environments.

Suitable for

• Signal lights and indicator lamps in industrial control panels
• Illumination of switches and push buttons
• Status indication in electronic equipment and appliances
• Backup and emergency lighting systems
• General purpose indication in commercial and residential installations

Key specifications

• Lamp Type: Neon Indicator Lamp
• Base: BA9S (Miniature Bayonet)
• Voltage: 230V AC
• Power: 0.5W
• Current: Approx. 2.2 mA
• Diameter: 10 mm
• Length: 28 mm
• Light Color: Neon Orange/Red
• Lifetime: 10,000 hours
• Gas Filling: Neon
• Internal Resistor: Yes
• Operating Temperature: -20°C to +70°C
• Bulb Material: Glass
• Base Material: Nickel-plated Brass
• Type Designation: ZG233

Recommendations

For optimal performance, ensure the lamp is used within its specified voltage and temperature range. Suitable for use with standard BA9S sockets. Always disconnect power before installation or replacement.
