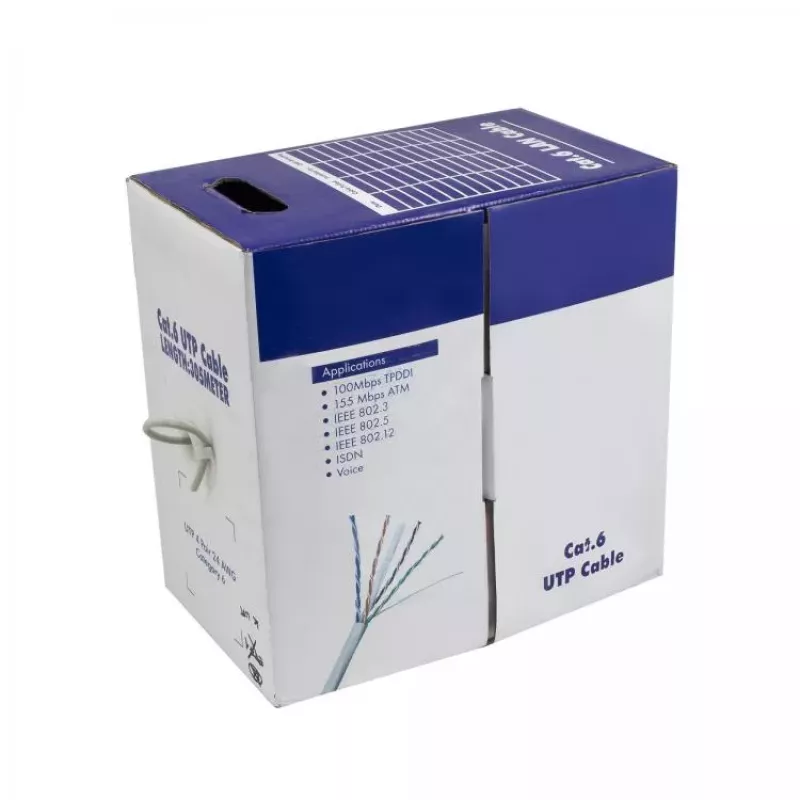

Sbox UTP CAT-6 BOX 305 m - 305m Cat6 UTP Network Cable, Grey, CCA, 23AWG, PVC, Easy Pull Box

The Sbox UTP CAT-6 BOX 305 m is a high-performance unshielded twisted pair (UTP) network cable designed for structured cabling systems. With a length of 305 meters (1000 feet), this Cat6 cable supports data transfer rates up to 10 Gigabit Ethernet (up to 55m) and is backward compatible with 10/100/1000 Mbps networks. It features a copper clad aluminum (CCA) conductor, 23 AWG gauge, and 4 twisted pairs with a cross filler (spline) to reduce crosstalk and ensure signal integrity. The PVC jacket is grey and suitable for indoor use. The cable comes in an easy pull box for convenient installation.

Advantages

This Cat6 cable offers reliable performance for high-speed networking, with a bandwidth of 250 MHz. The spline design enhances pair separation, minimizing interference. The easy pull box allows for smooth cable deployment, saving time during installation. Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, it ensures compatibility with existing network infrastructure.

Suitable for

• Structured cabling in offices, data centers, and commercial buildings
• Gigabit Ethernet and 10 Gigabit Ethernet networks (up to 55m)
• Indoor horizontal cabling and patch panel connections
• Network installations requiring long cable runs

Key specifications

• Cable Type: UTP (Unshielded Twisted Pair)
• Category: Cat6
• Length: 305 m (1000 ft)
• Conductor Material: Copper Clad Aluminum (CCA)
• Conductor Gauge: 23 AWG
• Number of Pairs: 4 Twisted Pairs (8 Conductors)
• Jacket Material: PVC
• Jacket Colour: Grey
• Max Bandwidth: 250 MHz
• Data Transfer Rate: 10/100/1000 Mbps, 10 Gigabit Ethernet (up to 55m)
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Cross Filler: Yes (Spline)
• Application Environment: Indoor
• Packaging: Easy Pull Box
• Insulation Material: HDPE
• Outer Diameter: 6.2 mm
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use with Cat6 compatible connectors and patch panels. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for new installations or upgrades to higher-speed networks.
