SATA cable DeLOCK 85240 0.2 m SATA 7-pin SATA 22-pin Black

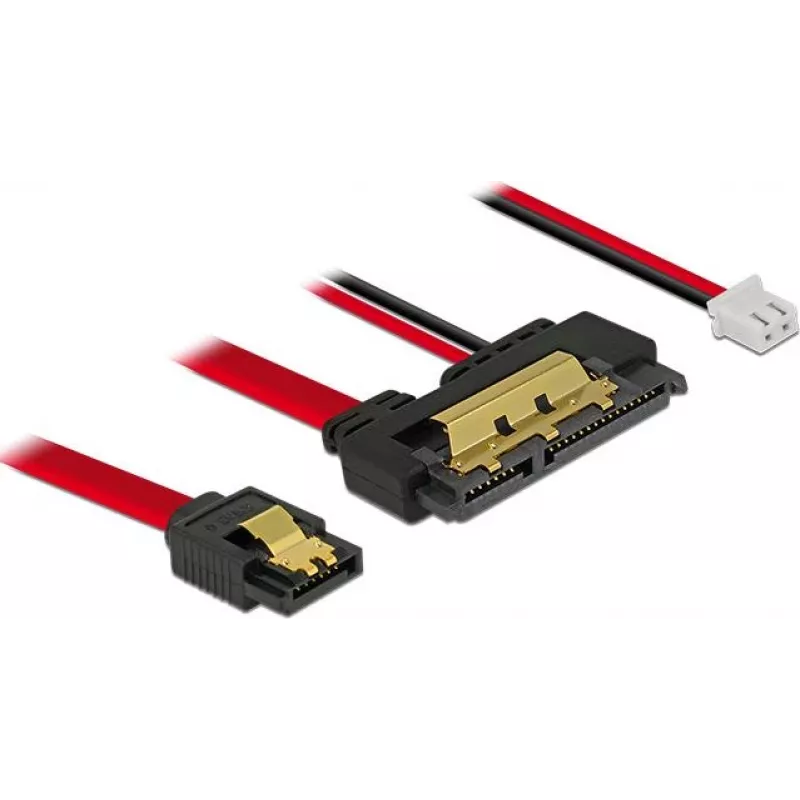

This SATA cable by DELOCK connects a device with a 22‑pin SATA interface to a motherboard using an available 7‑pin SATA data port and a 2‑pin power header. The cable is 0.2 m long, supports SATA III data transfer rates and has metal clips on the SATA receptacles for a secure connection.

Advantages

Short 0.2 m length suitable for compact installations, SATA III support for high-speed data transfer and a 22‑pin connector for devices that require combined data and power. Metal locking clips on the 7‑pin receptacles provide stable contact and reduce the risk of accidental disconnection.

Suitable for

• Connecting 22‑pin SATA devices (e.g., certain HDD/SSD modules) to a motherboard with a 7‑pin SATA data port and 2‑pin power header
• Small form factor systems and single‑board computers such as Banana Pi
• Tight internal PC layouts where a short cable is needed

Key specifications

• Cable type: SATA III
• Cable length: 0.2 m
• Connector 1: SATA 7‑pin (data)
• Connector 2: SATA 22‑pin (data + power)
• Product colour: Black
• Brand: DELOCK, MPN: 85240, EAN: 4043619852406

How to use

Align the 22‑pin connector with the device’s SATA port and insert it gently until it seats. Plug the 7‑pin SATA connector into the motherboard’s SATA data port and attach the 2‑pin power header to the corresponding pins on the motherboard. Ensure connectors are oriented correctly to avoid damage and that the metal clips engage for a secure fit before powering the system.

Recommendations

Use this cable in systems compatible with a 22‑pin SATA interface and a separate 2‑pin motherboard power header. Avoid routing the cable near heat sources or sharp edges and check connector seating before each power-up to ensure reliable operation.
