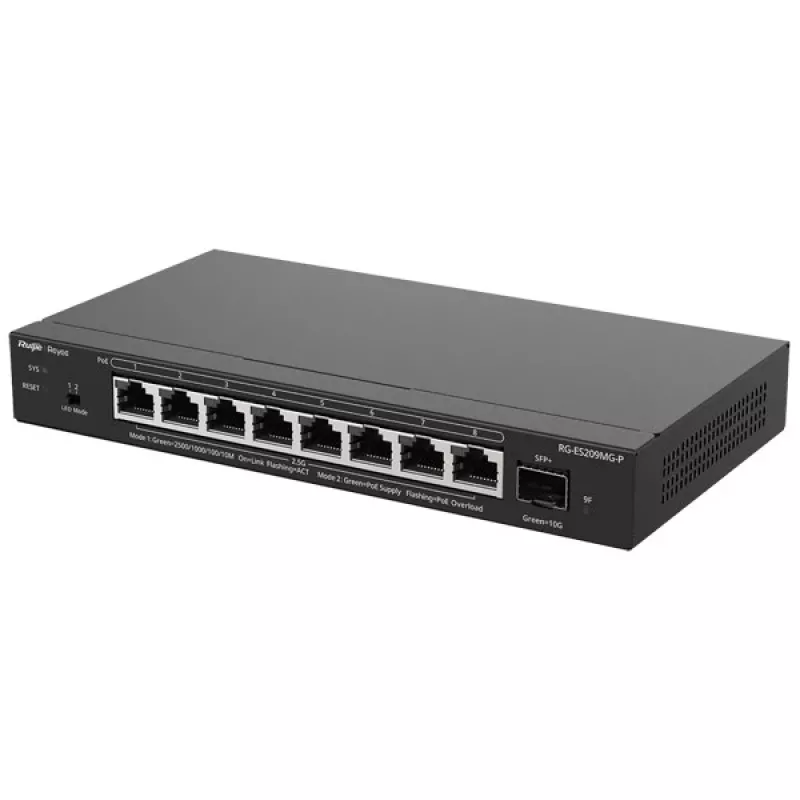

RUIJIE RG-ES209MG-P 8-Port Gigabit PoE+ Smart Managed Switch with 1 SFP Uplink, 120W Budget, Fanless, Reyee Cloud

The RUIJIE RG-ES209MG-P is a smart managed PoE+ switch designed for small to medium businesses, offering 8 Gigabit PoE ports and 1 SFP uplink. With a total PoE budget of 120W, it supports IEEE 802.3af/at devices such as IP cameras, VoIP phones, and wireless access points. The fanless design ensures silent operation, making it ideal for office environments. Management is simplified via the Reyee Cloud app or web UI, providing remote monitoring and configuration.

Advantages

This switch delivers reliable power and data connectivity with advanced features like VLAN, QoS, and link aggregation. Its compact desktop and wall-mountable form factor saves space, while the 18 Gbps switching capacity ensures smooth data flow. The fanless operation reduces noise and maintenance, and the Reyee Cloud platform enables easy network management from anywhere.

Suitable for

• Small to medium businesses needing PoE+ for IP cameras, VoIP, or Wi-Fi
• Office networks requiring quiet, fanless operation
• Surveillance systems with up to 8 PoE cameras
• Remote management via cloud for distributed sites

Key specifications

• 8x Gigabit PoE+ ports (IEEE 802.3af/at)
• 1x Gigabit SFP uplink port
• PoE budget: 120W
• Switching capacity: 18 Gbps
• Packet forwarding rate: 13.39 Mpps
• MAC address table: 4K
• Jumbo frame support: 9KB
• VLAN support: Port-based, 802.1Q
• QoS support: Yes
• Management: Reyee Cloud app/web, Web UI
• Fanless design
• External power adapter (AC 100-240V, 50/60Hz)
• Operating temperature: 0°C to 40°C
• Desktop and wall-mountable

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. The switch supports up to 8 PoE devices; ensure total power draw does not exceed 120W. For advanced features, configure via the Reyee Cloud app or web interface.
