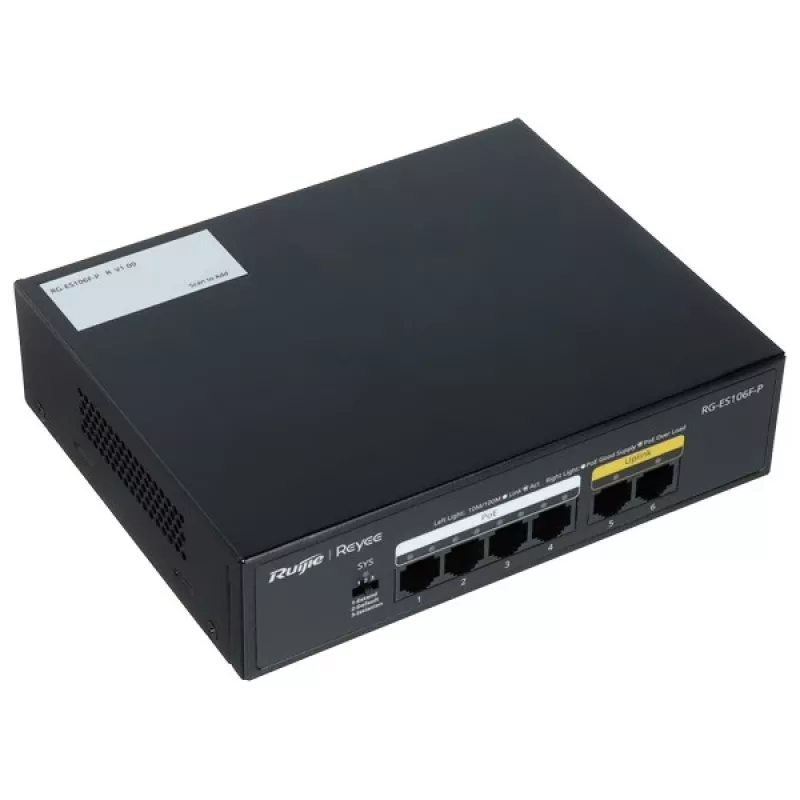

Ruijie RG-ES106F-P 6-Port Fast Ethernet PoE Switch, 4 PoE+ Ports, 54W Budget, Unmanaged, Black

Small offices and retail spaces often struggle to power IP cameras, VoIP phones, and wireless access points without running separate power lines or installing expensive managed switches. The Ruijie RG-ES106F-P solves this by combining four Power over Ethernet Plus (PoE+) ports with two uplink ports in a compact, fanless desktop switch. It delivers up to 30 W per port and a total budget of 54 W, so you can connect and power multiple devices from a single unit—no extra cabling, no configuration needed.

Who is it for

This unmanaged switch is ideal for small business owners, home office users, and IT installers who need a reliable, plug-and-play way to expand their network and power PoE devices. It works perfectly for IP surveillance systems, VoIP phone deployments, and wireless access point installations where simplicity and quiet operation matter.

Main features

• 6 Fast Ethernet ports (10/100 Mbps) with 4 PoE+ ports and 2 uplink ports
• IEEE 802.3af/at PoE support with up to 30 W per port and 54 W total budget
• Fanless design for silent operation—perfect for noise-sensitive environments
• Plug-and-play unmanaged operation: no software or configuration required
• Compact desktop or wall-mount form factor saves space
• External 51V/1.25A DC power supply included
• 2K MAC address table and 1.2 Gbps switching capacity for smooth traffic

Specifications

• Switch type: Unmanaged
• Port count: 6 x 10/100Base-T (4 PoE+, 2 uplink)
• PoE standard: IEEE 802.3af/at (PoE+)
• PoE power budget: 54 W total, 30 W max per port
• Switching capacity: 1.2 Gbps
• Forwarding rate: 0.89 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 2 KB
• Layer support: Layer 2
• Mounting: Desktop or wall-mount
• Power supply: External DC 51V/1.25A
• Operating temperature: 0°C to 40°C
• Colour: Black

Tips

To get the most out of your RG-ES106F-P, connect your PoE devices (like IP cameras or access points) to ports 1–4, which support PoE+. Use the two uplink ports to connect to your router or existing network. Because the switch is fanless, ensure it is placed in a well-ventilated area to maintain optimal operating temperature. For wall mounting, use the included brackets and screws for a clean, space-saving installation.
