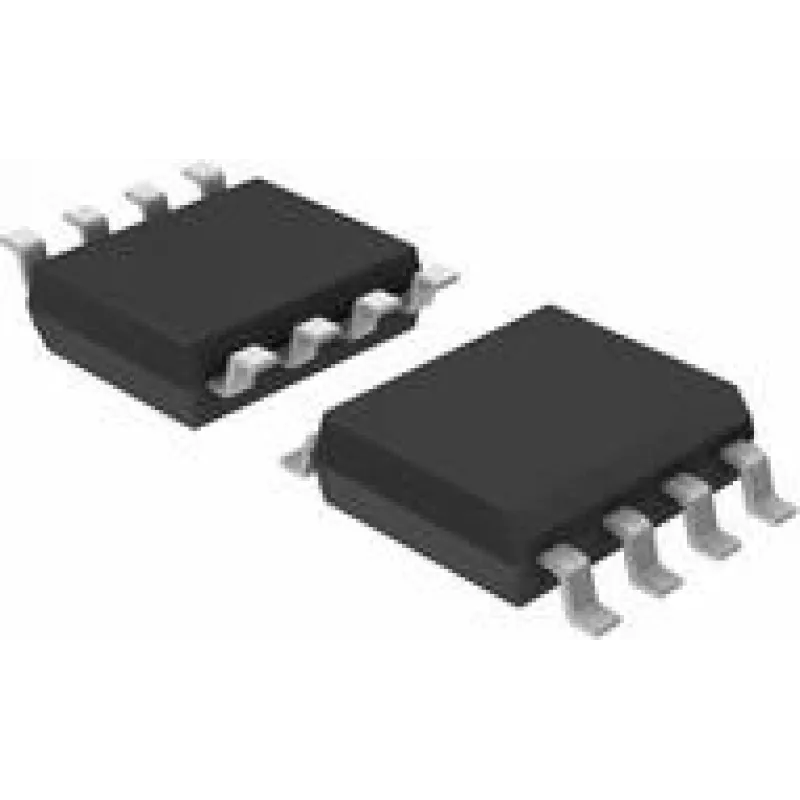

RS-485 Transceiver Texas Instruments SN65HVD1781DR SOIC-8, 1/1 Driver/Receiver

The Texas Instruments SN65HVD1781DR is an RS-485 differential transceiver in an SOIC-8 package that integrates one driver and one receiver. It is engineered for half- or full-duplex serial bus communication and provides robust differential signalling suitable for industrial and embedded data links. The component supports multi-drop topologies and long-distance data transmission with immunity to common-mode noise typical in control and automation systems.

Advantages

The transceiver offers a compact SOIC-8 footprint for board-level integration, combining driver and receiver functionality in a single device to reduce component count. Its differential signalling improves noise immunity and enables reliable communication over extended cable runs. The device is compatible with standard RS-485 networks and is designed to meet requirements for industrial serial communication, with predictable receiver thresholds and driver output levels for interoperability.

Suitable for

• Industrial control networks and programmable logic controller (PLC) links
• Embedded systems requiring robust serial communication
• Multi-drop bus topologies and sensor networks
• Long-distance data transmission over twisted-pair cabling

Key specifications

• Package: SOIC-8 surface-mount
• Channel configuration: one driver and one receiver (1/1)
• Interface standard: RS-485 differential signalling
• Operation mode: supports half-duplex and full-duplex systems (depending on bus wiring and direction control)
• Signal type: differential data lines for improved common-mode noise rejection
• Typical application environment: industrial and embedded data links

How to use

Place the SOIC-8 transceiver on the PCB following the manufacturer’s recommended footprint and orientation. Connect the differential A and B lines to the bus cabling (twisted-pair) and implement proper termination resistors at the ends of the line to minimize reflections. Provide a stable supply voltage within the device’s specified range and route ground and power traces to reduce noise. For half-duplex operation, implement direction control using the device’s enable/driver control pins; for full-duplex, wire separate driver and receiver pairs accordingly. Observe recommended layout practices for decoupling capacitors close to the power pins.
