Router Techly Wall Plug Wireless Router 300N Wi-Fi 4

The Techly Wall Plug Wireless Router 300N Wi-Fi 4 provides compact, wall-mountable wireless routing with a maximum WLAN throughput of 300 Mbit/s. Designed to support Wi-Fi 4 (802.11n) and backward compatible with 802.11b/g, this unit integrates a Fast Ethernet interface and two LAN ports to connect wired devices. The small footprint and integrated power-plug design make it suitable for installation in tight spaces where a stand‑alone router would be impractical.

Advantages

This router combines Wi-Fi 4 performance with Fast Ethernet wired connectivity, offering stable wireless throughput and basic network services in a compact wall-plug enclosure. Dual internal antennas (2x2) improve signal stability for typical home and small office use. The device includes common security protocols such as WPA2, supports multiple operation modes (Router, Client, Bridge, Repeater, AP) and provides web-based management and firmware update capability for straightforward configuration and maintenance.

Suitable for

• Home internet sharing for web browsing, video streaming and light online gaming
• Small office environments requiring wall-mounted wireless access

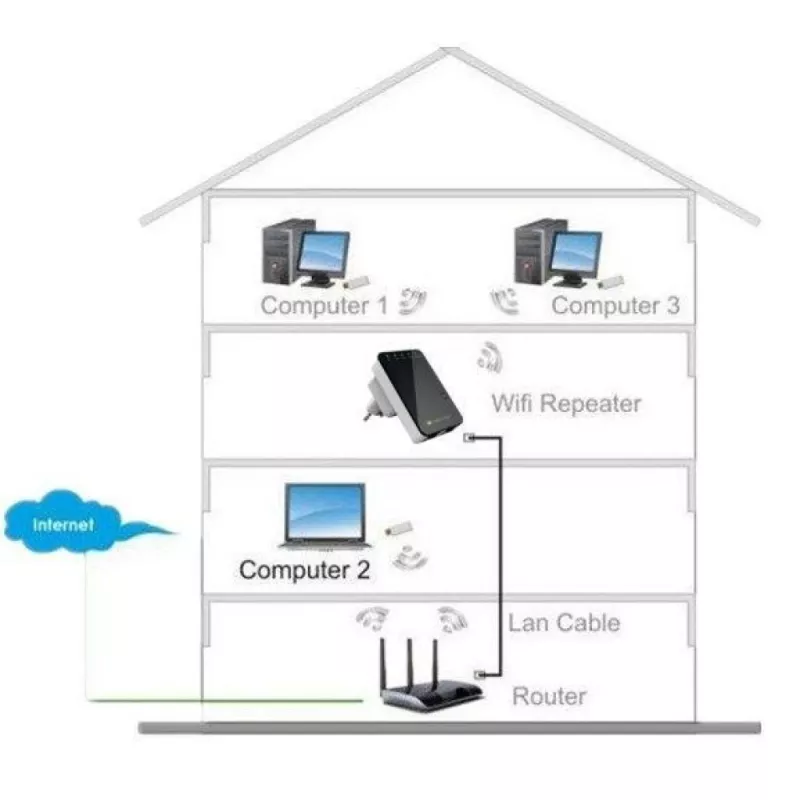

• Extending an existing wireless network in repeater or bridge mode
• Connecting a couple of wired devices via the two Fast Ethernet LAN ports

Key specifications

• Wi-Fi standard: Wi-Fi 4 (802.11n), backward compatible with 802.11b/g
• Maximum wireless data rate: 300 Mbit/s
• Frequency band: 2.412–2.472 GHz (2.4 GHz band)
• Ethernet: Fast Ethernet interface with auto-negotiation
• Ethernet ports: 2 LAN ports (RJ-45)
• Antenna configuration: 2x2 internal antennas
• Security: WEP (64/128/152-bit), WPA (TKIP/AES), WPA2
• Supported modes: Router, Client, Bridge, Repeater (range extender), Access Point
• QoS support for prioritising multimedia and VoIP traffic
• Device colours: Black, White
• Weight: 0.196 kg

How to use

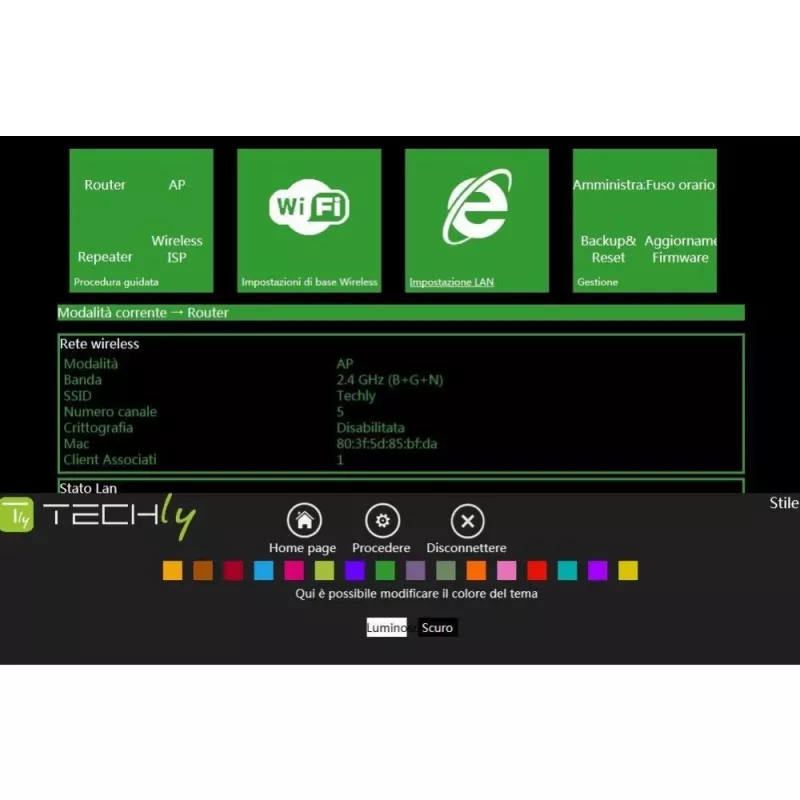

Plug the unit directly into a wall outlet and connect the WAN or modem to the Ethernet WAN port if required. Use the web‑based setup wizard accessed via a browser to configure the wireless SSID, security options and operation mode. For extending an existing network, switch to Repeater or Bridge mode and follow the on‑screen pairing steps. Configure QoS settings in the web interface to prioritise voice or streaming traffic where needed.

Recommendations

Place the router in a central location with minimal obstructions for the best 2.4 GHz coverage. Avoid installing the unit inside metal enclosures or directly behind large appliances. Use WPA2 with AES encryption for secure wireless access and update firmware periodically through the web interface to maintain stability and security.
