Router MikroTik RB922UAGS-5HPacD, Wi‑Fi 5 (802.11ac), 2.4/5 GHz, 866 Mbps, 1×Gigabit LAN, 1×PoE, MiniSIM

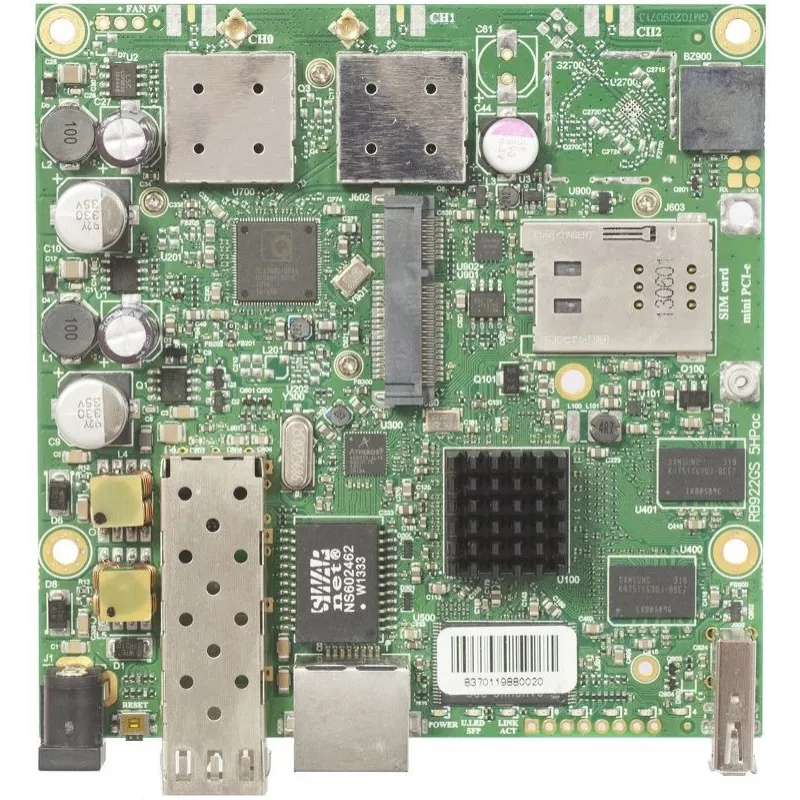

RouterBOARD RB922UAGS-5HPacD is a compact and versatile wireless router designed for building custom network solutions. It supports the 802.11ac (Wi‑Fi 5) standard with data rates up to 866 Mbit/s and selectable channel widths (20/40/80 MHz). The device includes a Gigabit Ethernet port, an SFP cage, a miniPCIe slot with SIM support for 3G/4G modems or additional wireless cards, a USB port and two MMCX connectors for the integrated 2x2 802.11ac radio. The unit ships with RouterOS L4 (AP) license. Model variants differ by regional frequency restrictions.

Advantages

The RB922UAGS-5HPacD combines 802.11ac speed with flexible expansion options — SFP, miniPCIe with SIM, USB and Gigabit Ethernet — enabling wired and wireless integration in one device. Its built‑in 2x2 radio provides higher throughput and improved range compared with single‑stream solutions. The preinstalled RouterOS L4 (AP) license offers immediate access to MikroTik routing and wireless features. Regional variants ensure compliance with local frequency regulations.

Suitable for

• Small business or branch office wireless access points
• Outdoor or indoor ISP/customer premise installations when combined with appropriate enclosure and antennas
• Hybrid setups requiring cellular backup via miniPCIe 3G/4G modem
• Environments needing SFP uplink or Gigabit Ethernet connectivity

Key specifications

• Wi‑Fi standard: 802.11ac (Wi‑Fi 5)
• Maximum WLAN data rate: up to 866 Mbit/s
• Radio configuration: integrated 2x2 802.11ac with two MMCX connectors
• Ethernet: 1 × Gigabit Ethernet port
• SFP: 1 × SFP cage for fiber uplink
• Expansion: miniPCIe slot with SIM support for 3G/4G modem
• Interfaces: USB port
• Software: RouterOS L4 (AP) license included
• Frequency notes: US model factory‑locked to 5170–5250 MHz and 5725–5835 MHz; International model supports 5150–5875 MHz (subject to local regulations)

How to use

Install the RB922UAGS-5HPacD in a suitable location with adequate ventilation and antenna placement. Connect the SFP module or Gigabit Ethernet uplink, insert a miniPCIe cellular modem and SIM if cellular backup is required, and attach external antennas to the MMCX connectors for best wireless performance. Power the device, access RouterOS via Winbox, WebFig or SSH, and configure wireless interfaces, security settings and routing rules according to your network design. Ensure firmware and RouterOS packages are kept up to date.

Recommendations

Use the International or US variant consistent with local regulatory requirements; do not attempt to remove factory frequency locks. For outdoor deployments select weatherproof housings and appropriate antennas, and configure power, channel width and transmit power to comply with local limits.
