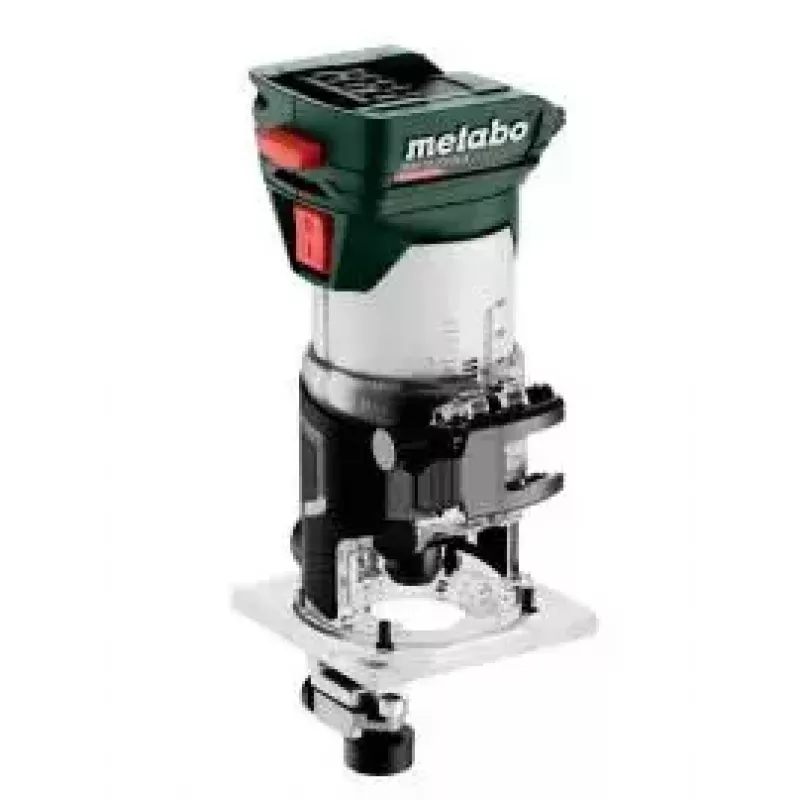

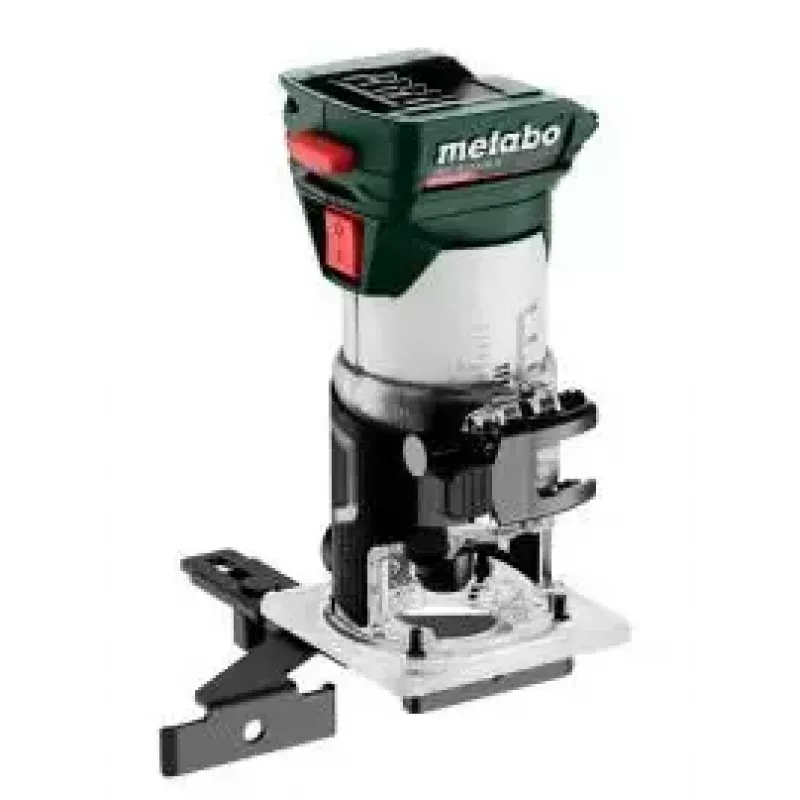

Router Metabo FMV 18 LTX BL 8 Brushless 29000 RPM Fixed Base

The Metabo FMV 18 LTX BL 8 is a light, compact cordless trim router designed for single-handed profile cutting, trimming and groove cutting. Featuring a brushless motor with up to 29,000 RPM and an 18 V battery supply, this fixed-base router supports 6 mm and 8 mm collets and weighs about 1 kg, making it portable for a range of routing tasks.

Advantages

The brushless motor delivers high cutting speed in wood and wood-like materials while overload and restart protection enhance safety and motor longevity. Precise, stepless depth adjustment with rack jacks and a hardened, ground interchangeable collet chuck ensure accurate concentricity of router bits. Variable speed control allows matching speed to material and task, and the transparent baseplate gives a clear view of the bit and workpiece. The spindle lock simplifies bit changes and the ergonomically positioned switch layout supports comfortable single-handed operation.

Suitable for

• Profile trimming and edge work on wood and wood-based panels
• Cutting grooves and dados
• Template routing and pattern following
• Light-duty joinery and finishing tasks

Key specifications

• Brand: Metabo
• Model: FMV 18 LTX BL 8
• Power supply: 18 V battery (cordless)
• Motor type: Brushless
• Max no-load speed: 29,000 RPM
• Collet capacity: 6 mm and 8 mm
• Base type: Fixed base
• Weight: approx. 1 kg
• Protections: Restart protection, overload protection

How to use

Fit the appropriate 6 mm or 8 mm router bit into the hardened interchangeable collet chuck and lock the spindle to secure the bit. Adjust the depth precisely using the stepless depth adjustment and rack jacks, then set the variable speed according to the material. Hold the router with one hand on the ergonomically designed grip and guide it steadily along the workpiece or template using the transparent baseplate to monitor the bit. Use the supplied accessories such as parallel guide, template follower or roller guide when required, and connect a dust extraction adapter if available.

Recommendations

Use appropriate personal protective equipment (eye and hearing protection and dust mask) and select the correct bit and speed for the material. Allow the motor to cool if overload protection activates, and ensure the battery is removed or disconnected before changing bits or making adjustments.
