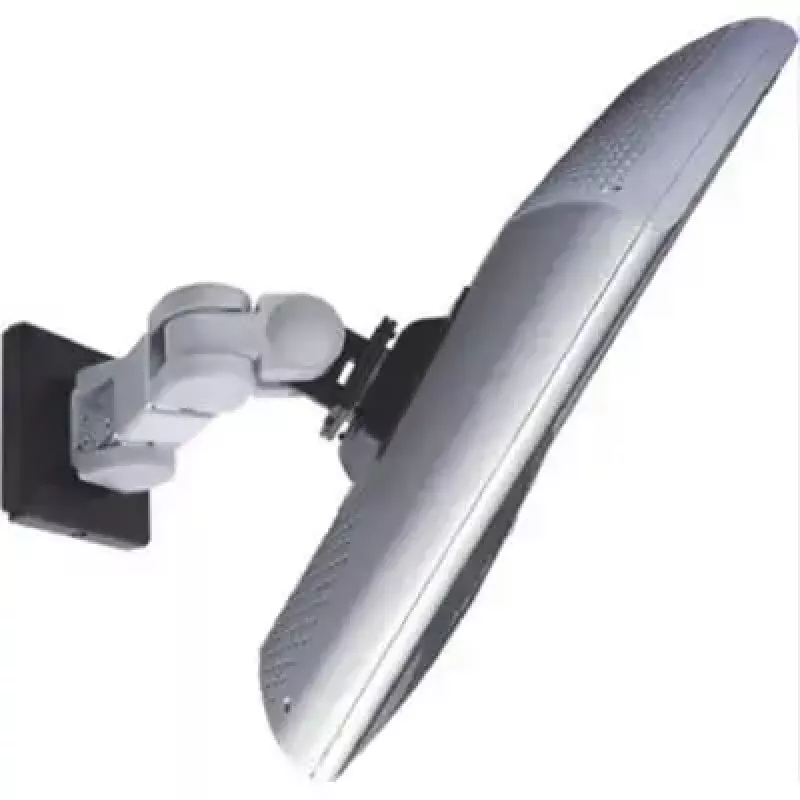

ROLINE LCD Monitor Wall Mount Kit 3 Joints Maximum weight capacity 6 kg

The ROLINE LCD Monitor Wall Mount Kit with three joints is designed for space-saving mounting of a 75 x 75 mm VESA-compatible LCD monitor on a wall. It supports monitors up to a maximum weight of 6 kg and is supplied in white for a neutral appearance suitable for offices, shops or home installations.

Advantages

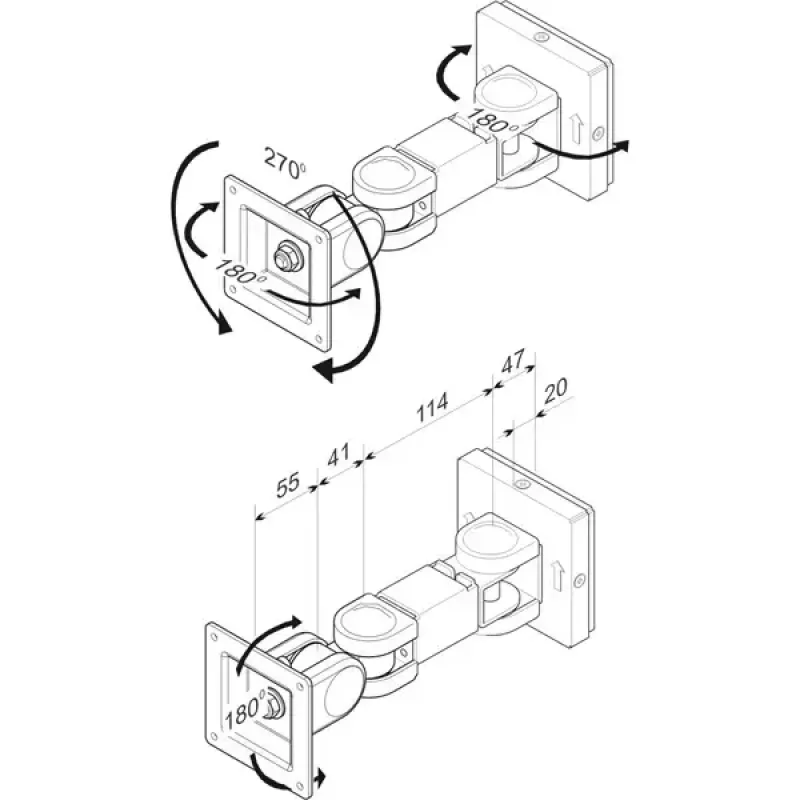

The articulated arm with three joints enables flexible positioning and adjustment of the screen angle. A pivot function of up to 270° increases freedom of orientation while the inclination adjustment over the joints allows fine-tuning of the viewing angle. Compact wall mounting frees desk space and provides a tidy installation.

Suitable for

• Small LCD monitors with VESA 75 x 75 mm mounting pattern
• Workstations where desk space needs to be maximised
• Public displays in retail or reception areas with light monitors (≤ 6 kg)

Key specifications

• Brand: ROLINE
• Model / MPN: 17.03.1126
• EAN: 7611990149797
• VESA compatibility: 75 x 75 mm (VESA 75)
• Number of joints: 3
• Maximum load: 6 kg
• Pivot range: 270°
• Finish: White

How to use

Mount the wall plate securely to a suitable wall surface following the included instructions and local fastening guidelines. Attach the monitor to the VESA 75 x 75 mm plate, then adjust the three joints and inclination to the required viewing position. Use the pivot function to rotate the screen as needed. Verify that the monitor weight does not exceed the 6 kg limit and that all fasteners are tightened before regular use.

Recommendations

Ensure the wall material and fixings are appropriate for the combined weight of mount and monitor. Do not exceed the maximum weight capacity of 6 kg. Regularly check and retighten joints and mounting screws to maintain safe operation.
